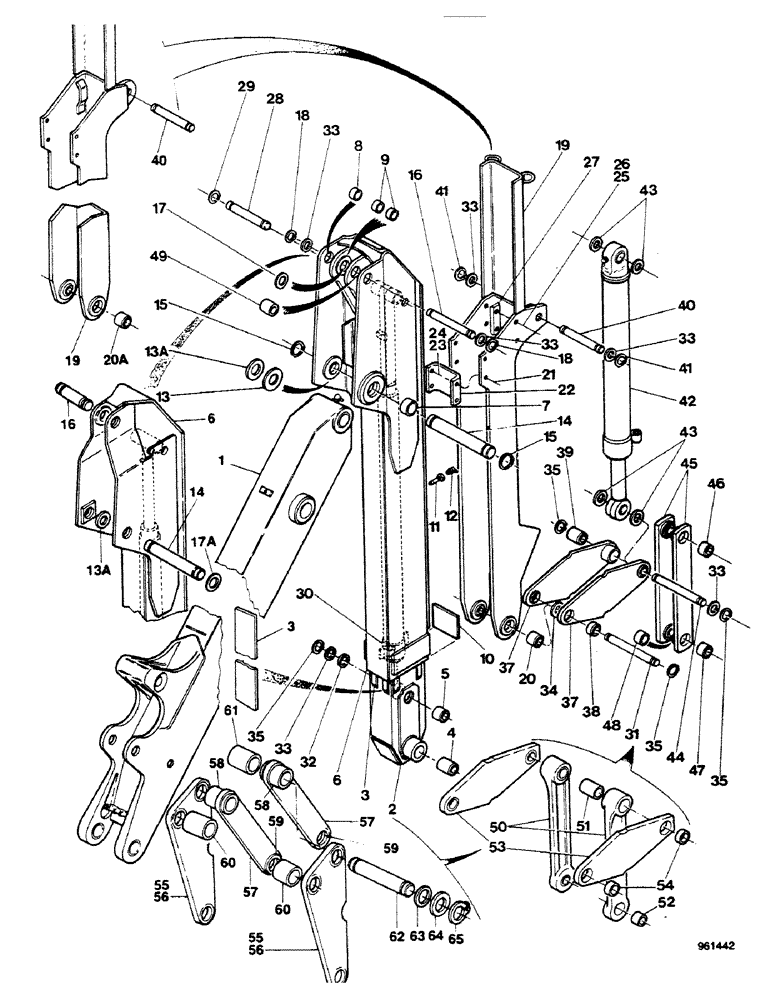

Запчасти Case 580G (400) - BACKHOE - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BOOM, See figure 384 - 386

1шт.

2

D55727

ARM

DIPPER ASSY, D133021, Includes: Ref. 3 - 5

1шт.

2

D133021

ARM

DIPPER ASSY, Includes: Ref. 3 - 5

1шт.

3

D55688

STRIP

wear, Used with D55727 only

8шт.

3

D133010

PLATE

STRIP wear

1шт.

4

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

2шт.

5

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

2шт.

D73826

COVER

HOUSING ASSY, Includes: Ref. 6 - 10

1шт.

D133421 + D42911 + D121564

1шт.

D133421

SLIDE

HOUSING ASSY, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

7

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

2шт.

8

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

Used with D73826 only

1шт.

9

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

2шт.

10

D61708

BLOCK

1шт.

11

219-107

NOZZLE CAP

5/32" Dia.

1шт.

11

D134699

NOZZLE CAP

5/16" Dia.

1шт.

12

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

1шт.

13

D123738

BUSHING

5/16" Thick.

4шт.

13a

E44375

SHIM

63/64" Thick.

1шт.

14

D45034

PIN

11-3/4" Long

1шт.

14

D42911

PIN

9-5/8" Long

1шт.

15

D26919

SNAP RING,#200, Ext

2шт.

16

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

10-1/16" Long

1шт.

16

D121564

PIN

4-7/8" Long

1шт.

17

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat

2шт.

17a

195-2155

WASHER,2 1/16" x 3" x .109"

flat

1шт.

18

D25280

SNAP RING,#175, Ext

2шт.

19

D61744

ARM

EXTENSION ASSY, D124163 + D38907, Includes: Ref. 20 and 20A

1шт.

19

D124163

ARM

EXTENSION ASSY, Includes: Ref. 20 and 20A

1шт.

20

D52521

BUSHING,44.68mm ID x 57.15mm OD x 26.92mm L

2шт.

20a

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

2шт.

21

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

22

D61701

BRACE

PLATE

1шт.

23

92-8

LOCK WASHER,1/2"

4шт.

24

25-108

NUT,1/2"-13, G5

4шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used with D61744, D123738 (4)

4шт.

26

92-8

LOCK WASHER,1/2"

Used with D61744, D123738 (4)

4шт.

27

D54095

BLOCK

Used with D61744, D123738 (4)

2шт.

28

D44882

PIN,38.1mm OD x 203.2mm L

1шт.

29

D25279

SNAP RING,M35, Int

2шт.

30

REF

INSTRUCTION

CYLINDER, See Figure 334

1шт.

31

D53818

PIN,44.45mm OD x 278.89mm L

1шт.

32

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat

1шт.

33

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

1шт.

34

D77725

WASHER

If used

2шт.

35

D25280

SNAP RING,#175, Ext

4шт.

37

E35389

LINK

ASSY, Includes: Ref. 38 and 39, Serial Range: -3.918.631

1шт.

38

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

, Serial Range: -3.918.631

1шт.

39

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

, Serial Range: -3.918.631

1шт.

40

D37602

PIN

(9.76" Long), Used with D61744

1шт.

40

D38907

PIN,1.75" OD x 5 5/16 L

(5.27" Long)

1шт.

41

D25280

SNAP RING,#175, Ext

2шт.

42

REF

INSTRUCTION

CYLINDER, See Figure 332

1шт.

43

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat

4шт.

44

D53818

PIN,44.45mm OD x 278.89mm L

1шт.

45

D61244

LINK

ASSY, Includes: Ref. 46 and 47, Serial Range: -3.918.631

2шт.

46

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

, Serial Range: -3.918.631

1шт.

47

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

, Serial Range: -3.918.631

1шт.

48

D93227

BUSHING

1шт.

49

E41515

BUSHING

SPARE PART

2шт.

50

D126492

LINK

ASSY, Includes: Ref. 51 and 52, Start Serial: 3.918.632

2шт.

51

D121845

BUSHING,44.68mm ID x 57.15mm OD x 70mm L

, Start Serial: 3.918.632

1шт.

52

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

, Start Serial: 3.918.632

1шт.

53

D89620

LINK

ASSY, Includes: Ref. 54, Start Serial: 3.918.632

2шт.

54

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

, Start Serial: 3.918.632

2шт.

55

E46312

DRAG LINK

SPARE PART ASSY, For 185 degrees roll-out, Includes: Ref. 56

2шт.

56

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

For 185 degrees roll-out

3шт.

57

E46314

DRAG LINK

ASSY, For 185 degrees roll-out Includes: Ref. 58 and 59

2шт.

58

D121845

BUSHING,44.68mm ID x 57.15mm OD x 70mm L

For 185 degrees roll-out

1шт.

59

D39133

BUSHING, For 185 degrees roll-out

1шт.

60

E46318

SPACER

For 185 degrees roll-out

2шт.

61

E46319

SPACER

SPARE PART For 185 degrees roll-out

1шт.

62

D53818

PIN,44.45mm OD x 278.89mm L

For 185 degrees roll-out

1шт.

63

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, For 185 degrees roll-out

2шт.

64

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

flat, For 185 degrees roll-out

2шт.

65

D25280

SNAP RING,#175, Ext

For 185 degrees roll-out

2шт.
