Запчасти Case 580G (396) - SIDESHIFT BACKHOE - LATCH CYLINDER (09) - CHASSIS/ATTACHMENTS

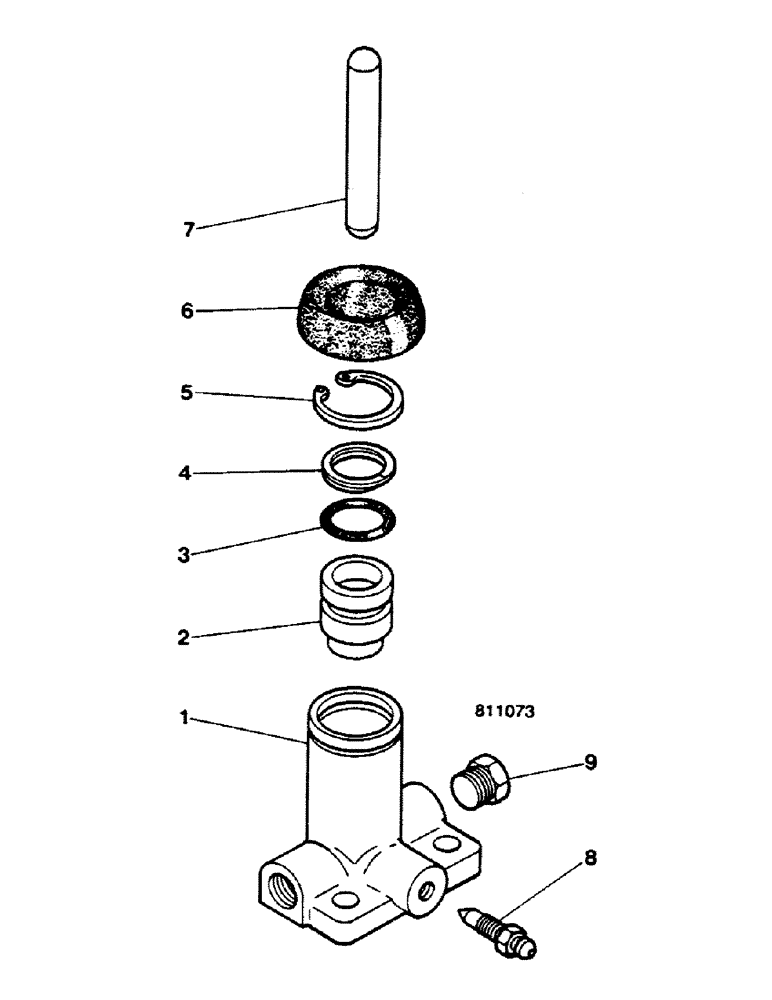

Схема запчастей Case 580G - (396) - SIDESHIFT BACKHOE - LATCH CYLINDER (09) - CHASSIS/ATTACHMENTS
9
3
8
5
7
4
6
1
2

Артикул

Название

Примечание

Количество

A62483

CYLINDER

ASSY, A168473, Includes: Ref. 1 - 8

1шт.

A168473

CYLINDER ASSY.

ASSY, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

A45383

PISTON

1шт.

A48971

KIT

repair, Includes: Ref. 3 - 7

1шт.

3

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

4

A42252

SEALING RING

SEALRING backup

1шт.

5

A42256

SNAP RING,0.901", Int, #90

1шт.

6

A48972

BRAKE

BOOT

1шт.

7

A42254

ROD

1шт.

8

A41491

BLEEDER,1/4" - 28 x 23.37mm

1шт.

9

222-1062

PLUG,7/16"-24, Inv Fl

1шт.

Выбрано товаров: 12
