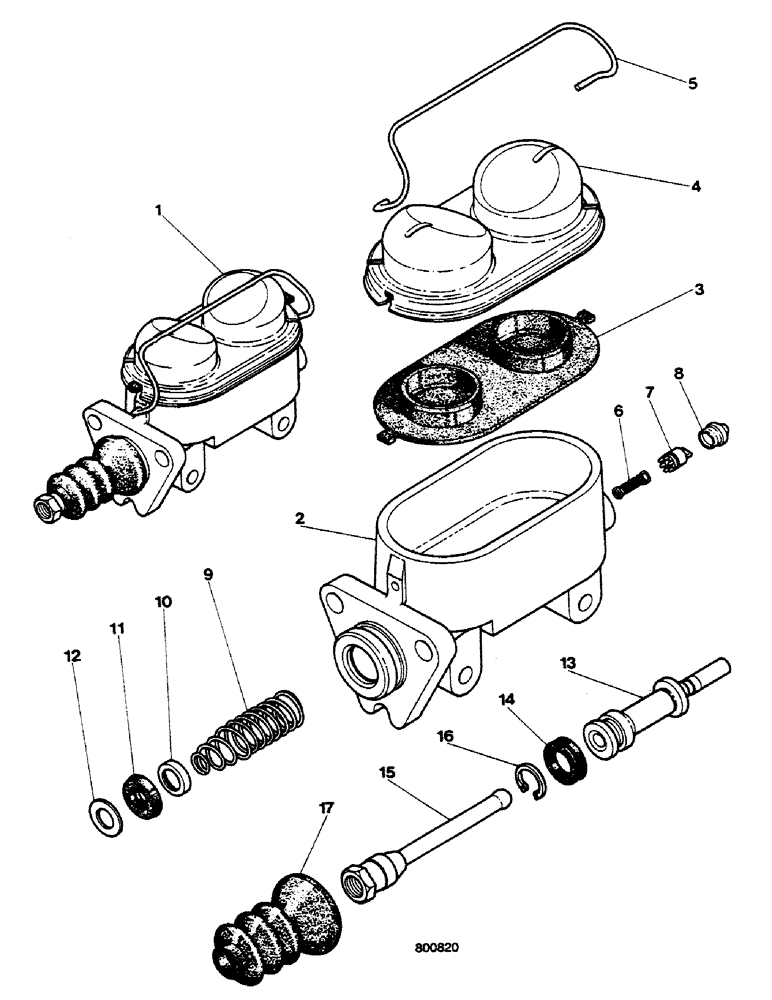

Запчасти Case 580G (394) - SIDESHIFT BACKHOE - MASTER CYLINDER (09) - CHASSIS/ATTACHMENTS

1

D120090

CYLINDER

master, For boom latch only, D126695, Includes: Ref. 2 - 17

1шт.

1

D126695

MASTER CYLINDER

CYLINDER,MASTER master, Includes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

N6832

GASKET

1шт.

4

NSS

NOT SOLD SEPARAT

COVER

1шт.

5

N6831

BAIL

1шт.

6

N6824

SPRING

1шт.

7

N6827

VALVE

1шт.

8

N6825

SEAT

1шт.

N6823

PISTON

ASSY, Includes: Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

11

N6830

CUP

1шт.

12

N6828

GUARD

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON

1шт.

14

N6829

SEAL

1шт.

15

L32137

ROD

1шт.

16

A42256

SNAP RING,0.901", Int, #90

1шт.

17

N8819

BOOT

1шт.
