Запчасти Case 580G (390) - SIDESHIFT BACKHOE - BOOM LATCH, TRANSPORT (09) - CHASSIS/ATTACHMENTS

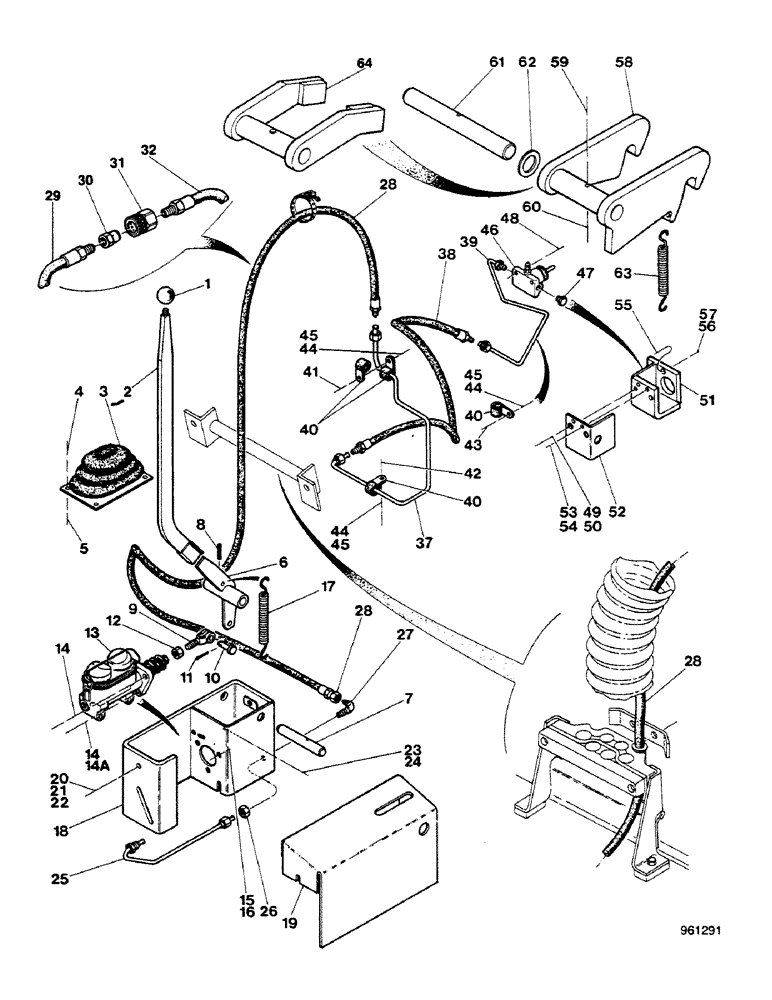

Схема запчастей Case 580G - (390) - SIDESHIFT BACKHOE - BOOM LATCH, TRANSPORT (09) - CHASSIS/ATTACHMENTS
40
16
25
28
56
38
44
62
24
14a
44
10
27
63
1
23
41
14
14
44
18
22
15
6
57
45
49
20
28
5
7
37
11
53
39
28
59
45
31
21
55
61
32
26
54
60
29
3
45
8
64
40
19
47
2
52
12
58
4
50
46
13
43
17
51
9
42
48
40
30

Артикул

Название

Примечание

Количество

1

D59912

KNOB

1шт.

2

D120030

LEVER

SPARE PART

1шт.

3

D120371

BOOT

1шт.

4

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

5

131-4

LOCK NUT,5/16"-18, GB

4шт.

6

D120032

DIPPER

BELLCRANK

1шт.

7

D93822

PIN

SHAFT

1шт.

8

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

1шт.

9

D38620

YOKE

UNIVERSAL JOINT YOKE

1шт.

10

141-64

CLEVIS PIN,7/16" x 1.190"

1шт.

11

132-26

COTTER PIN

3/32" x 3/4"

1шт.

12

25-157

JAM NUT,Jam, 7/16"-20, G5

lock

1шт.

13

REF

INSTRUCTION

CYLINDER master, See Figure 394

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

14a

195-25

WASHER,3/8"

1шт.

15

92-6

LOCK WASHER,3/8"

3шт.

16

25-106

NUT,3/8"-16, G5

3шт.

17

D129921

SPRING

SPRING

1шт.

18

D92662

BRACKET

SPARE PART

1шт.

19

D92672

COVER

SPARE PART

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

195-21

WASHER,5/16"

Flat

2шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

D92676

TUBE

1шт.

26

216-1252

NUT

1шт.

27

218-691

ELBOW,90 Degree Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

1шт.

28

E44029

HOSE

, Serial Range: -3.918.606

1шт.

28

E44919

HOSE

, Start Serial: 3.918.607

1шт.

29

D121063

HOSE

E44029

1шт.

30

D123172

SPLINED COUPLING

nipple, E44029

1шт.

31

D123171

SPLINED COUPLING

E44029

1шт.

32

D121109

HOSE

E44029

1шт.

37

D94062

TUBE

SPARE PART

1шт.

38

D94070

HOSE

SPARE PART

1шт.

39

D123759

TUBE

1шт.

40

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

4шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

42

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

43

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

44

92-6

LOCK WASHER,3/8"

3шт.

45

25-106

NUT,3/8"-16, G5

3шт.

46

REF

INSTRUCTION

CYLINDER, See Figure 396

1шт.

47

222-1062

PLUG,7/16"-24, Inv Fl

1шт.

48

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

49

92-4

LOCK WASHER,1/4"

2шт.

50

25-104

NUT,1/4"-20, G5

2шт.

51

D94427

BRACKET

SPARE PART

1шт.

52

D94428

COVER

SPARE PART

1шт.

53

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

54

92-4

LOCK WASHER,1/4"

2шт.

55

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

56

92-6

LOCK WASHER,3/8"

2шт.

57

25-106

NUT,3/8"-16, G5

2шт.

58

D90420

LATCH

SPARE PART

1шт.

59

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

60

131-6

LOCK NUT,3/8"-16, GC

1шт.

61

D90421

PIN

SHAFT

1шт.

62

195-2140

WASHER,1 7/16" x 2" x .065"

flat

1шт.

63

D54397

SPRING

1шт.

64

D127035

STOP, If used

1шт.
