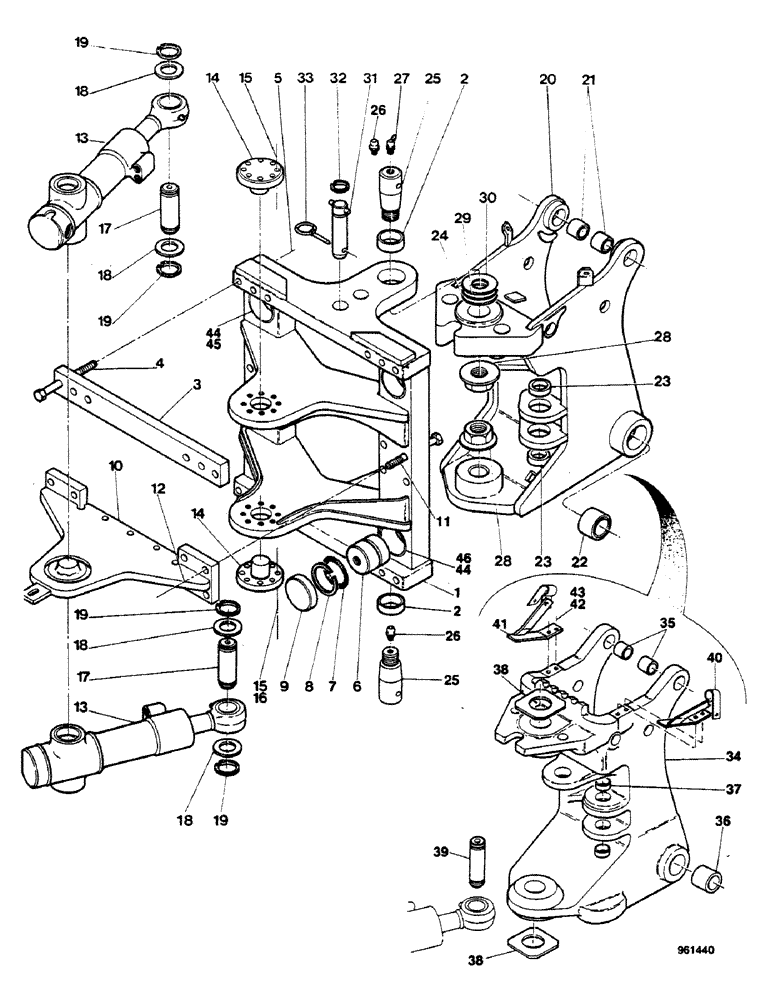

Запчасти Case 580G (382) - SIDESHIFT BACKHOE - SWING CYLINDERS AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

D72718

FRAME

SPARE PART Includes: Ref. 2, Serial Range: -3.918.606

1шт.

1

NLS

NO LONGER SERVICED

SPARE PART FRAME, Includes: Ref. 2, Serial Range: 3.918.607-3.948.949

1шт.

1

E46114

FRAME

SPARE PART Includes: Ref. 2, Start Serial: 3.948.950

1шт.

2

D72685

BUSHING,57.38mm ID x 76.2mm OD x 35mm L

2шт.

3

D68830

PLATE

2шт.

4

26-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

12шт.

5

129-572

NUT,3/4"-10, G8

12шт.

D68290

PISTON

ASSY, Includes: Ref. 6 - 8

4шт.

6

NSS

NOT SOLD SEPARAT

PISTON

1шт.

7

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

1шт.

8

H754614

WASHER

backup

1шт.

9

D71729

PLATE

PLATE

4шт.

10

D90573

SUPPORT

E46109

1шт.

10

E46109

SUPPORT

1шт.

11

26-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

8шт.

12

129-572

NUT,3/4"-10, G8

8шт.

13

REF

INSTRUCTION

CYLINDER, See Figure 326

2шт.

14

D68295

PIVOT

PIN

2шт.

15

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

16шт.

16

L30674

WASHER

16шт.

17

E38448

PIN

2шт.

18

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

4шт.

19

D25280

SNAP RING,#175, Ext

4шт.

20

D92591

LATHE

TOWER swing, Includes: Ref. 21 - 24

1шт.

21

D49429

BUSHING

2шт.

22

D91241

BUSHING,51.02mm ID x 69.88mm OD x 60mm L

2шт.

23

D66639

BUSHING

4шт.

24

D73848

WASHER,60mm ID x 120mm OD x 4mm L

2шт.

25

D123653

PIN,57.15mm OD x 140mm L

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2/1шт.

27

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

If used

1шт.

28

D120610

NUT

2шт.

29

E38384

SHIM,3mm Thk

1шт.

30

D74249

WASHER,60mm ID x 120mm OD x 2mm Thk

2 mm

1шт.

31

D92577

PIN

1шт.

32

D25279

SNAP RING,M35, Int

1шт.

33

D33805

PIN

Klik

1шт.

34

D89573

CONTROL

TOWER swing, Includes: Ref. 35 - 37, Cast iron swing tower, Serial Range: -3.948.949

1шт.

34

E46192

FRAME

TOWER swing, Includes: Ref. 35 - 37, Cast iron swing tower, Start Serial: 3.948.950

1шт.

35

D49429

BUSHING

Used when ref 34 is used

2шт.

36

D91241

BUSHING,51.02mm ID x 69.88mm OD x 60mm L

Used when Ref 34 is used

2шт.

37

D94484

BUSHING

Used when ref 34 is used

4шт.

38

D89338

SPACER

Used when ref 34 is used

2шт.

39

D94483

PIN

Used when ref 34 is used

2шт.

40

E44972

BRACKET

RH, Used when ref 34 is used, Serial Range: -3.948.949

1шт.

40

E46195

BRACKET

RH See Figure 251A, Used when ref 34 is used, Start Serial: 3.948.950

1шт.

41

E44975

BRACKET

LH, Used when ref 34 is used, Serial Range: -3.948.949

1шт.

41

E46197

BRACKET

LH See Figure 251A, Used when ref 34 is used, Start Serial: 3.948.950

1шт.

42

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Used when ref. 34 is used

4шт.

43

92-5

LOCK WASHER,5/16"

Used when Ref 34 is used

4шт.

44

D24982

RING, SNAP

RING SNAP

4шт.

45

D73503

SLEEVE

CYLINDER piston

2шт.

46

D73504

CYLINDER

CYLINDER piston

2шт.
