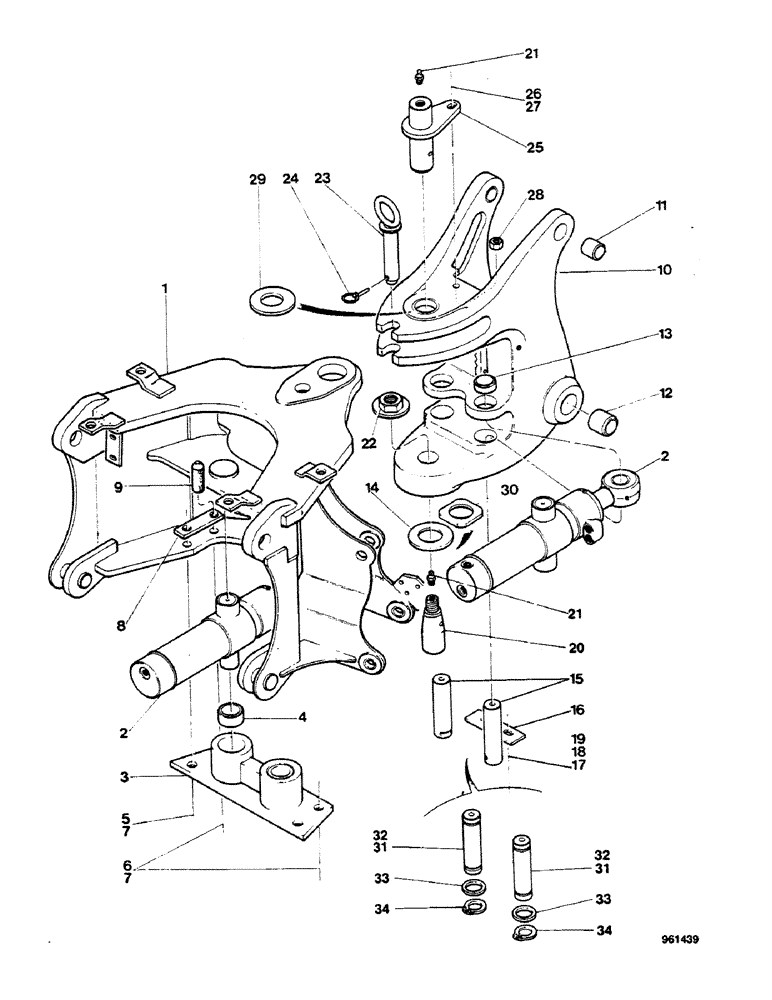

Запчасти Case 580G (380) - AXIAL BACKHOE - SWING CYLINDERS AND SWING TOWER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
FRAME, See Figure 376
1шт.
2
REF
INSTRUCTION
CYLINDER, See Figure 324
2шт.
3
D120214
BRACKET
Includes: Ref. 4
1шт.
4
D60159
BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L
2шт.
5
13-1648
BOLT,Hex, 1" - 8 x 3", Gr 5
2шт.
6
113-945
BOLT,Hex, 1" - 8 x 5-1/2", Gr 5
2шт.
7
D36505
WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk
4шт.
8
D86894
PLATE
2шт.
9
D90057
COVER
2шт.
10
D90868
LATHE
TOWER swing, Includes: Ref. 11 - 14, Used with D90868
1шт.
D90868 + D38481 (2) + 195-2152 (4) + D25280 (4)
1шт.
10
D89008
BRACKET
TOWER swing, Includes: Ref. 11 - 14, Used with D89008
1шт.
D89008 + R30449 (2) + 195-2152 (4) + D25280 (4)
1шт.
11
D49429
BUSHING
2шт.
12
D91241
BUSHING,51.02mm ID x 69.88mm OD x 60mm L
2шт.
13
D94018
BUSHING,44.58mm ID x 53.98mm OD x 30mm L
Used with D89008
4шт.
14
D90863
WASHER,58.35mm ID x 130mm OD x 6mm Thk
Used with D90868
1шт.
15
D88985
PIN,44.45mm OD x 181.5mm L
(7 - 1/8"), Used with D90868
2шт.
D38481 (2) + 195-2152 (4) + D25280 (4)
1шт.
15
D94019
PIN,44.4mm OD x 196.5mm L
(7 - 3/4"), Used with D89008
2шт.
R30449 (2) + 195-2152 (4) + D25280 (4)
1шт.
16
D94031
PLATE
If used
1шт.
17
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
If used
2шт.
18
92-8
LOCK WASHER,1/2"
If used
2шт.
19
D64050
WASHER
If used
2шт.
20
D123653
PIN,57.15mm OD x 140mm L
1шт.
21
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
22
D120610
NUT
1шт.
23
D90576
PIN
1шт.
24
D33805
PIN
Klik
1шт.
25
D90727
PIN,57.15mm OD x 198mm L
1шт.
26
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
1шт.
27
195-33
WASHER,1/2"
flat
1шт.
29
D74249
WASHER,60mm ID x 120mm OD x 2mm Thk
2 mm, If used
1шт.
30
D89338
SPACER
Used with D89008
1шт.
31
D38481
PIN
(6 - 1/2"), Used with D90868
2шт.
32
R30449
PIN
(6 - 3/4"), Used with D89008
2шт.
33
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
flat
4шт.
34
D25280
SNAP RING,#175, Ext
4шт.
Выбрано товаров: 40
