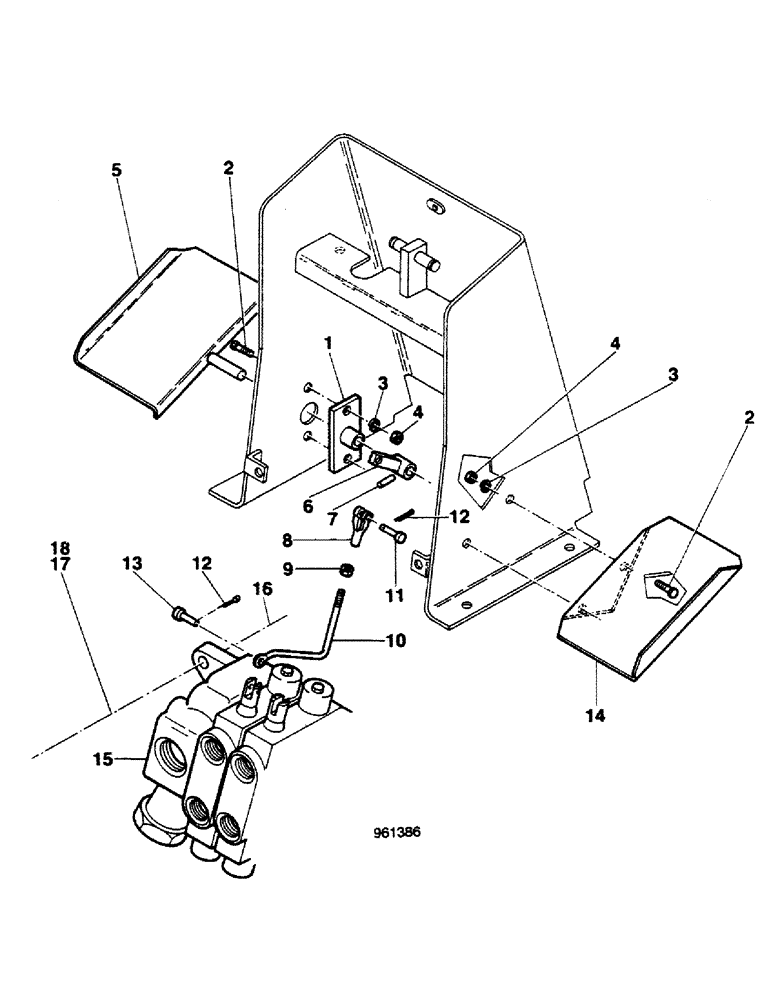

Запчасти Case 580G (375A) - SIDESHIFT BACKHOE - EXTENDABLE DIPPER CONTROL - STARTING FROM NO. 3.948.950 (09) - CHASSIS/ATTACHMENTS

1

E45399

SUPPORT

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

4шт.

5

E45392

PEDAL

SPARE PART

1шт.

6

E45395

LEVER

1шт.

7

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

9

25-116

NUT,Hex, 3/8"-24, G5

1шт.

10

E45397

ROD

1шт.

11

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

12

132-26

COTTER PIN

3/32" x 3/4"

2шт.

13

D88430

PIN,7.9mm OD x 26.47mm L

clevis

1шт.

14

E45427

PLATE ASSY.

PLATFORM

1шт.

15

REF

INSTRUCTION

VALVE control, See Figure 291C

1шт.

16

NLS

NO LONGER SERVICED

BOLT

3шт.

17

95-8

WASHER,1/2"

flat

6шт.

18

131-654

LOCK NUT,1/2"-13, GB

3шт.
