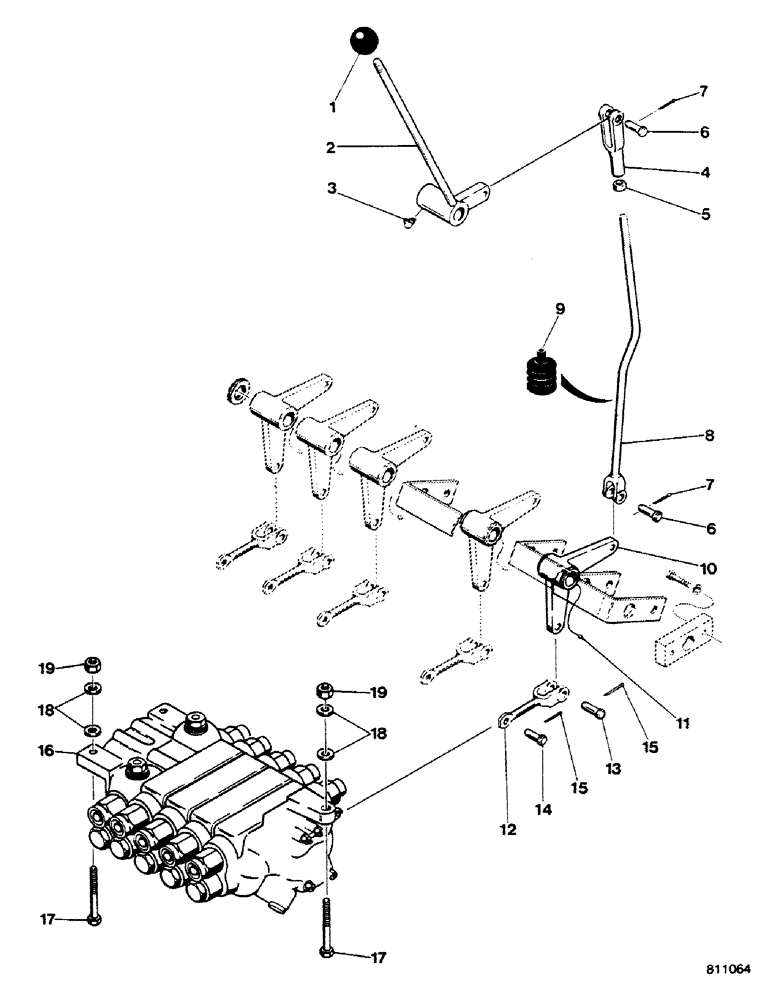

Запчасти Case 580G (372) - SIDESHIFT BACKHOE - EXTENDABLE DIPPER CONTROL (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

1шт.

2

D87528

LEVER

control

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

4

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

1шт.

6

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

7

132-26

COTTER PIN

3/32" x 3/4"

2шт.

8

D92517

ROD

SPARE PART

1шт.

9

D85869

BELLOWS

BOOT

1шт.

10

D88476

LEVER

bellcrank

1шт.

11

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

12

D91903

LINK

1шт.

13

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

14

D88430

PIN,7.9mm OD x 26.47mm L

clevis

1шт.

15

132-26

COTTER PIN

3/32" x 3/4"

2шт.

16

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

17

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

18

95-8

WASHER,1/2"

flat

6шт.

19

131-654

LOCK NUT,1/2"-13, GB

3шт.
