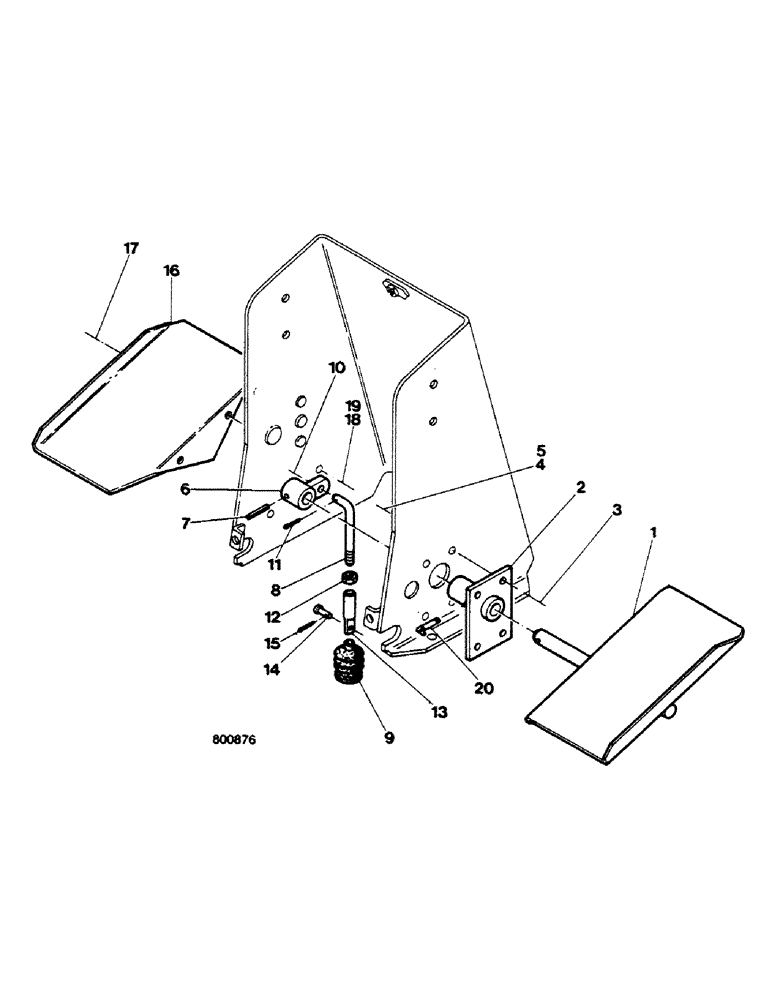

Запчасти Case 580G (370) - AXIAL BACKHOE - EXTENDABLE DIPPER CONTROL (09) - CHASSIS/ATTACHMENTS

1

D87866

PEDAL

1шт.

2

D87854

BRACKET

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

4шт.

6

D87860

LEVER

1шт.

7

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

8

E45471

ROD

SPARE PART

1шт.

9

D85869

BELLOWS

BOOT

1шт.

10

195-25

WASHER,3/8"

1шт.

11

132-26

COTTER PIN

3/32" x 3/4"

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

1шт.

13

D87857

LINK

1шт.

14

D88430

PIN,7.9mm OD x 26.47mm L

clevis

1шт.

15

132-26

COTTER PIN

3/32" x 3/4"

1шт.

16

D87863

PLATFORM

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

2шт.

20

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.
