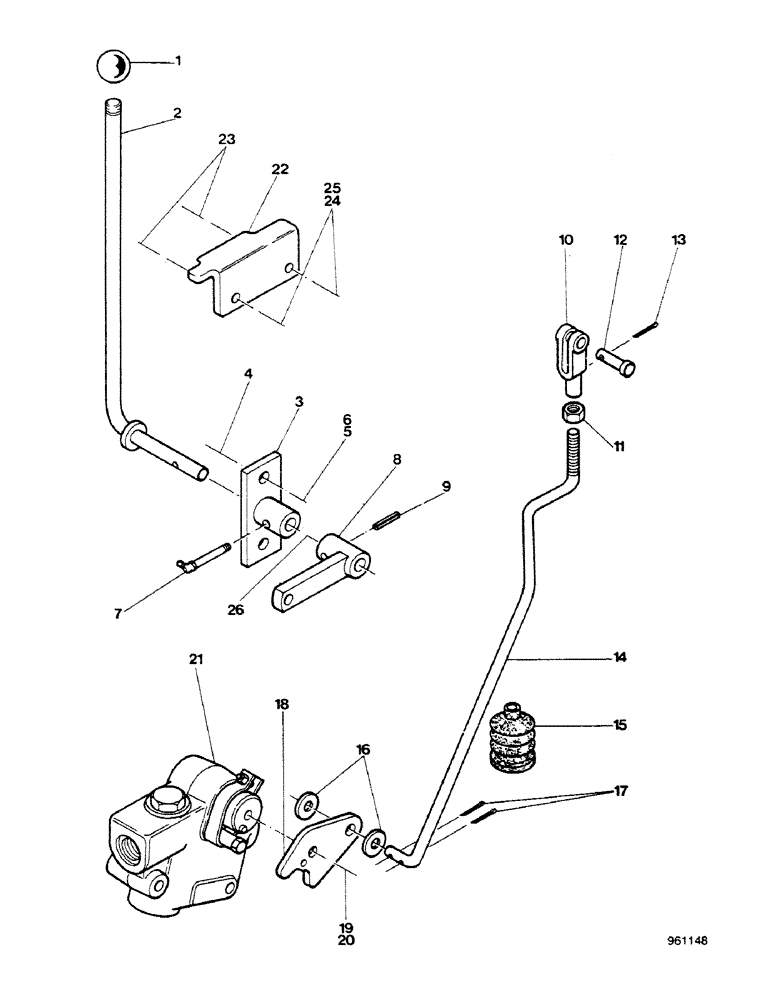

Запчасти Case 580G (366) - SIDESHIFT BACKHOE - BOOM LOCK CONTROL UP TO NO. 3.948.949 (09) - CHASSIS/ATTACHMENTS

1

D59912

KNOB

1шт.

2

D89994

LEVER

control

1шт.

3

D89341

BRACKET

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

2шт.

7

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

8

D89344

CRANK

bell

1шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

1шт.

10

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

11

25-116

NUT,Hex, 3/8"-24, G5

1шт.

12

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

13

132-26

COTTER PIN

3/32" x 3/4"

1шт.

14

D122795

ROD

1шт.

15

D85869

BELLOWS

BOOT

1шт.

16

195-25

WASHER,3/8"

2шт.

17

132-26

COTTER PIN

3/32" x 3/4"

2шт.

18

D89888

LEVER

1шт.

19

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

REF

INSTRUCTION

VALVE, See Figure 308

1шт.

22

D93422

BRACKET

1шт.

23

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

24

NLS

NO LONGER SERVICED

WASHER lock

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

2шт.

26

195-33

WASHER,1/2"

flat

2шт.
