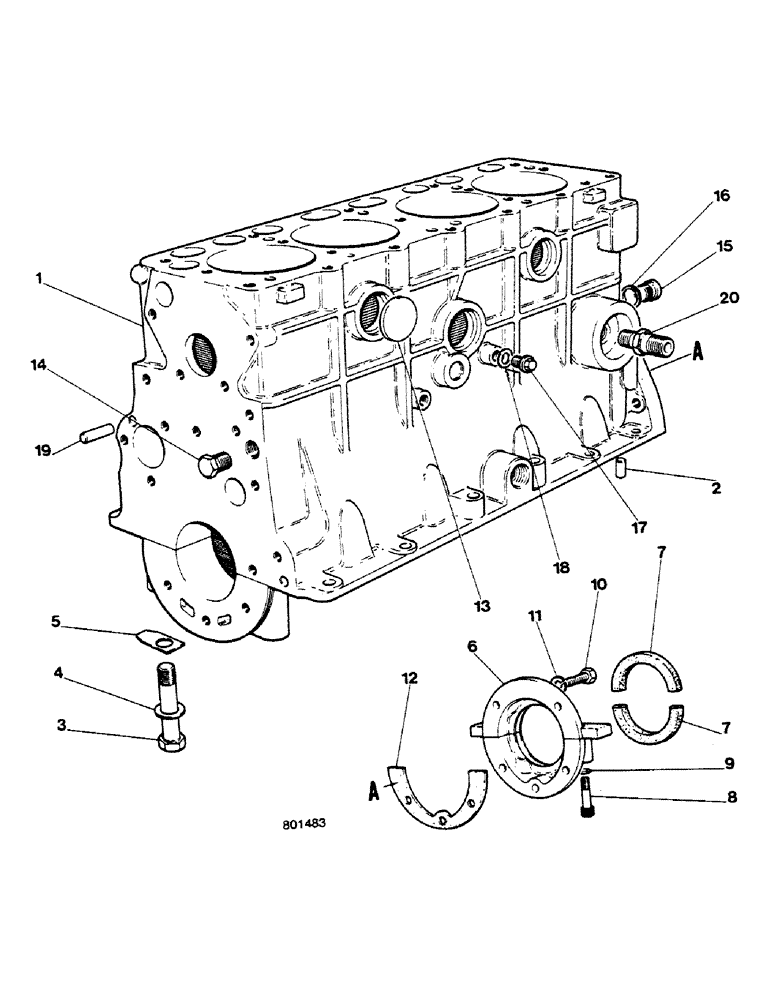

Запчасти Case 580G (036) - ENGINE - CYLINDER BLOCK (02) - ENGINE

1

K965168

BASIC BLOCK

cylinder, Includes: Ref. 2 - 18

1шт.

2

K12258

PIN

dowel 5/16" x 3/4" (bearing caps - front and rear)

4шт.

2

K622908

PIN

dowel 1/4" x 3/4" (center bearing caps)

1шт.

3

K902022

BOLT

6шт.

4

K929557

WASHER

6шт.

5

K12994

BEARING WASHER

WASHER tab

6шт.

6

K964844

HOUSING

SEAL, Includes: Ref. 7 - 9

1шт.

7

K921611

OIL SEAL

packing

2шт.

8

K606558

SCREW

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

10

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

5шт.

12

K950938

GASKET,0.18mm Thk

2шт.

13

K623797

PLUG

5шт.

14

K609449

PLUG

1шт.

15

K609440

PLUG

1шт.

16

K619506

WASHER

1шт.

17

K19581

PLUG

1шт.

18

K19501

WASHER

1шт.

19

K621807

PIN

dowel

2шт.

20

K200007

FITTING

1шт.

K260282

GASKET

engine

1шт.

K965716

SKELETON ENGINE

BLOCK short, (includes block, crankshaft, pistons, connecting rods and crankshaft oil seal)

1шт.
