Запчасти Case 580G (352) - BACKHOE - CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

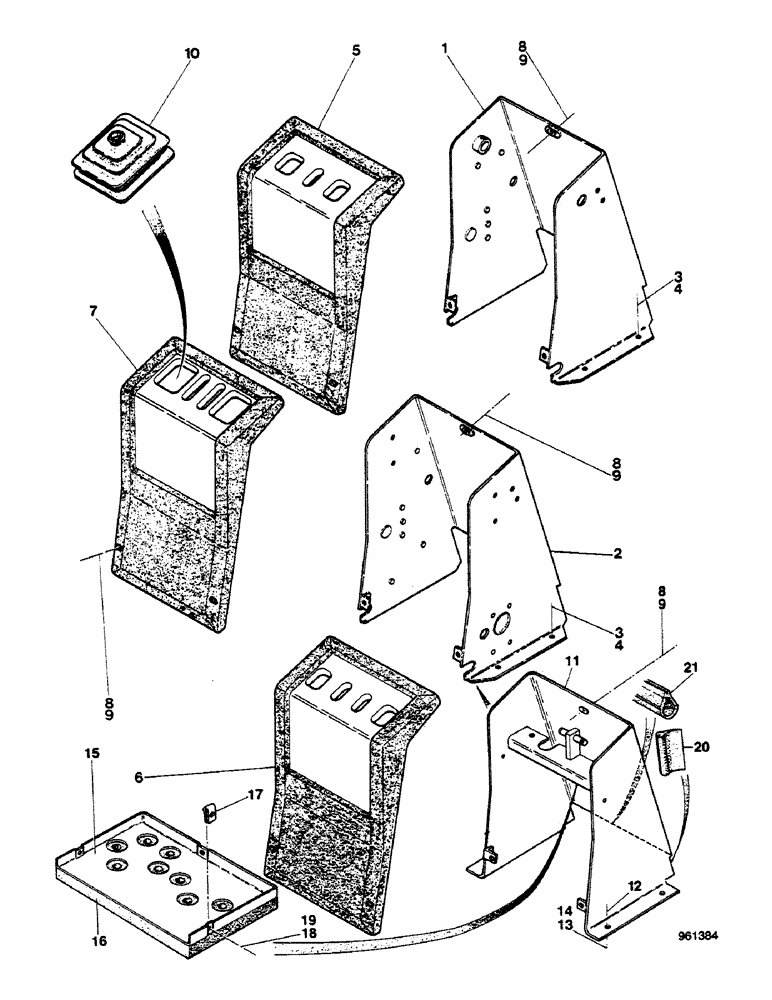

Схема запчастей Case 580G - (352) - BACKHOE - CONTROL TOWER (09) - CHASSIS/ATTACHMENTS
8
19
8
6
17
20
12
21
8
4
1
18
9
9
3
16
9
10
13
9
14
3
5
7
4
8
15
2
11

Артикул

Название

Примечание

Количество

1

D90212

CONSOLE

control tower 5L

1шт.

2

D92252

HOUSING ASSY.

control tower 2L, Applicable to Axial backhoe, Serial Range: -3.948.949

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

D89038

COVER

5L, Serial Range: -3.917.890

1шт.

5

D123197

COVER

5L, Start Serial: 3.917.891

1шт.

6

D89045

COVER

5L, with extendable dipper, Serial Range: -3.917.890

1шт.

6

D124078

COVER

5L with extendable dipper, Start Serial: 3.917.891

1шт.

7

D91213

COVER

For hand swing controls, Serial Range: -3.917.890

1шт.

7

D124079

COVER

For hand swing controls, Applicable to Axial backhoe, Serial Range: 3.917.891-3.948.949

1шт.

7

E45426

COVER

For hand swing controls, Start Serial: 3.948.950

1шт.

8

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

9

195-133

WASHER,5/16" x 3/4" x .065"

flat

3шт.

10

D121155

BOOT

2L

2шт.

11

E45376

CONSOLE

SPARE PART control tower 2L, Start Serial: 3.948.950

1шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

4шт.

15

E46033

PLATE

SPARE PART ASSY, Includes: Ref. 16

1шт.

16

E46034

FOAM

SPARE PART

1шт.

17

131-132

SPRING NUT,Tinn, U, 1/4"-20

3шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

3шт.

19

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

20

E46038

GASKET

2шт.

21

E46039

GASKET

1шт.

Выбрано товаров: 25
