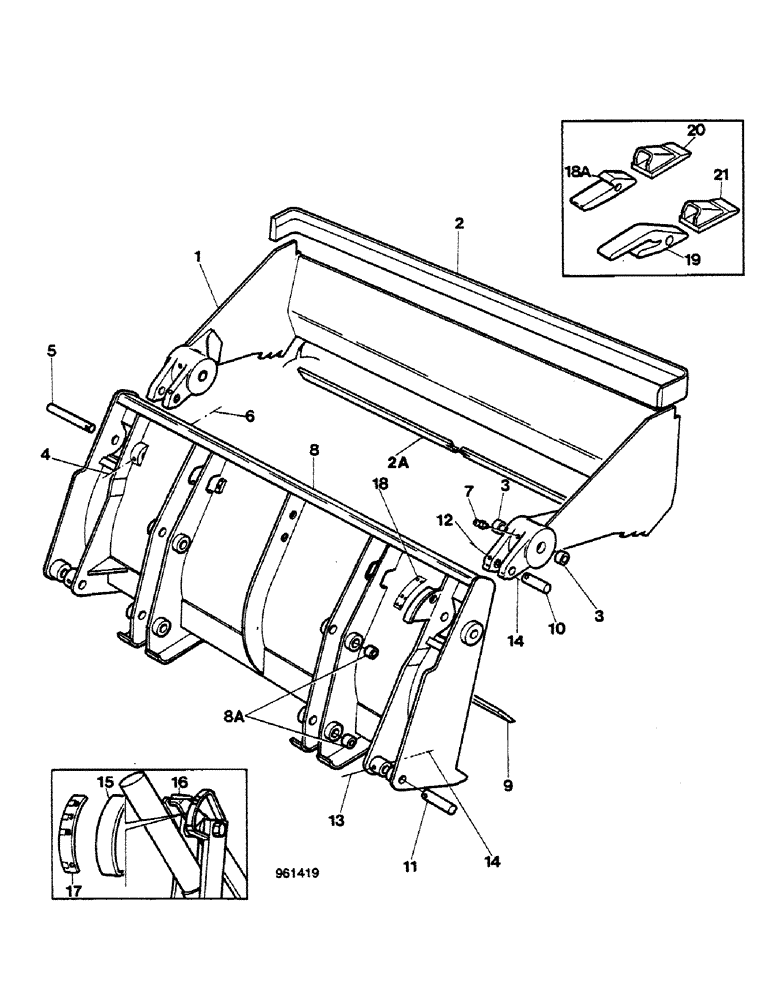

Запчасти Case 580G (348) - LOADER - 4-IN-1 BUCKET (09) - CHASSIS/ATTACHMENTS

E35712

BUCKET

SPARE PART BUCKET ASSY (w/o teeth), E46211, Includes: Ref. 1 - 14

1шт.

E46211

BUCKET

BUCKET ASSY (w/o teeth), Includes: Ref. 1 - 14

1шт.

E45312

BUCKET

SPARE PART BUCKET ASSY (with teeth), Includes: Ref. 1 - 14, Order E46227

1шт.

E46227

BUCKET

BUCKET ASSY (with teeth), Includes: Ref. 1 - 14

1шт.

E35689

JAW

CLAM ASSY (w/o teeth), E46211, Includes: Ref. 1 - 3

1шт.

E46042

JAW

CLAM ASSY (w/o teeth), Includes: Ref. 1 - 3

1шт.

E45313

BUCKET

CLAM ASSY (with teeth), E46228, Includes: Ref. 1 - 3

1шт.

E46228

JAW

CLAM ASSY (with teeth), Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM

1шт.

2

E35363

BLADE

edge-cutting

1шт.

2a

E35701

BLADE

edge-cutting

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

4шт.

4

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

D51391

PIN,15mm OD x 74mm L

2шт.

6

131-652

LOCK NUT,3/8"-16, GB

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

E35708

BLADE

ASSY, Includes: Ref. 8 - 9

1шт.

8

NSS

NOT SOLD SEPARAT

BLADE

1шт.

8a

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

8шт.

9

E35701

BLADE

edge-cutting

1шт.

10

D51392

PIN,31.72mm OD x 101.6mm L

2шт.

11

D51393

PIN,31.72mm OD x 152.4mm L

2шт.

12

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

13

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

14

131-652

LOCK NUT,3/8"-16, GB

4шт.

15

D51816

PLATE

gauge

1шт.

16

E42732

INDICATOR

SPARE PART

1шт.

17

321-1707

DECAL

1шт.

18

321-1708

DECAL

1шт.

18a

D26368

SUPPORT

SHANK

1шт.

19

D58499

SUPPORT

SHANK, heavy duty points

1шт.

20

D58576

TOOTH

point (Hand L)

1шт.

20

D58577

TOOTH

point (Fabco)

1шт.

21

D58592

TOOTH

point (Hand L), heavy duty points

1шт.

21

D58593

TOOTH

point (Fabco), heavy duty points

1шт.
