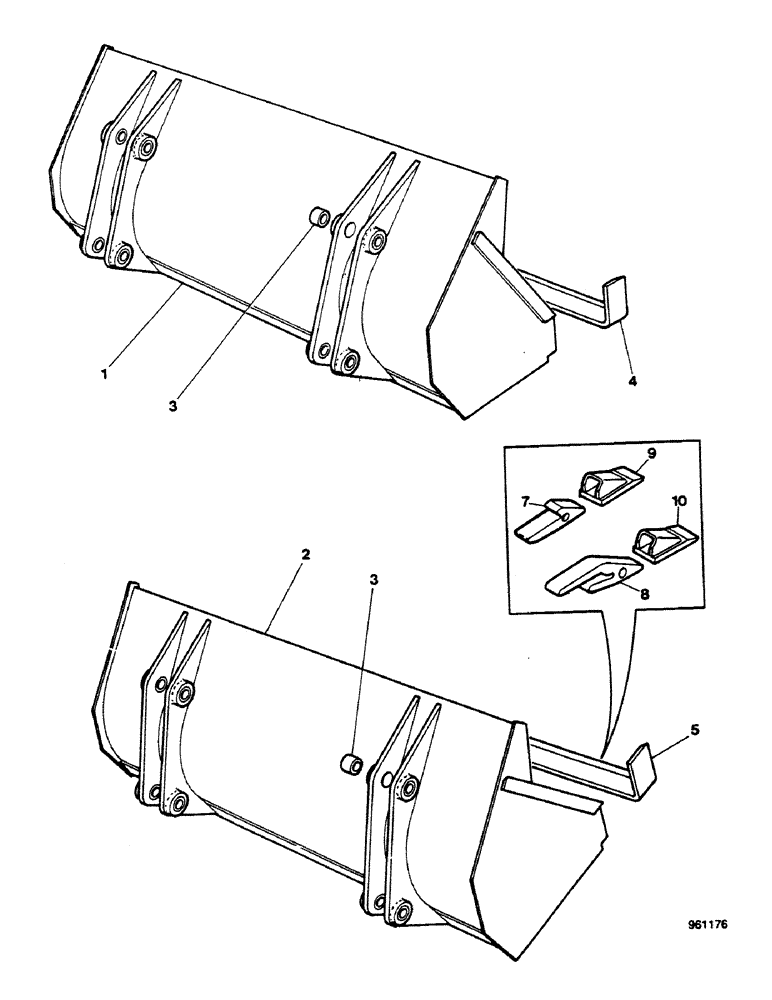

Запчасти Case 580G (346) - LOADER - BUCKETS (09) - CHASSIS/ATTACHMENTS

D92946

BUCKET

SPARE PART 90" without teeth, Includes: Ref. 1 - 5

1шт.

E45305

BUCKET

90" with teeth, Includes: Ref. 1 - 5

1шт.

E45306

BUCKET

90" with teeth and tow hook, Includes: Ref. 1 - 5

1шт.

D92184

BUCKET

SPARE PART 93" short lip without teeth, Includes: Ref. 1 - 5

1шт.

E45307

BUCKET

93" short lip, with teeth, Includes: Ref. 1 - 5

1шт.

E45308

BUCKET

93" short lip, with teeth and tow hook, Includes: Ref. 1 - 5

1шт.

D93075

BUCKET

SPARE PART 93" long lip, without teeth, Includes: Ref. 1 - 5

1шт.

E45309

BUCKET

93" long lip, with teeth, Includes: Ref. 1 - 5

1шт.

E45310

BUCKET

93" long lip, with teeth and tow hook, Includes: Ref. 1 - 5

1шт.

1

REF

INSTRUCTION

BUCKET, short lip

1шт.

2

REF

INSTRUCTION

BUCKET, long lip

1шт.

3

D65932

BUSHING,38.25mm ID x 47.65mm OD x 28mm L

4шт.

4

D65287

EDGE, CUTTING

90"

1шт.

5

E35363

BLADE

edge cutting, 93"

1шт.

7

D26368

SUPPORT

SHANK

1шт.

8

D58499

SUPPORT

SHANK, heavy duty points

1шт.

9

D58576

TOOTH

point (Hand L)

1шт.

9

D58577

TOOTH

point (Fabco)

1шт.

10

D58592

TOOTH

point (Hand L), heavy duty points

1шт.

10

D58593

TOOTH

point (Fabco), heavy duty points

1шт.
