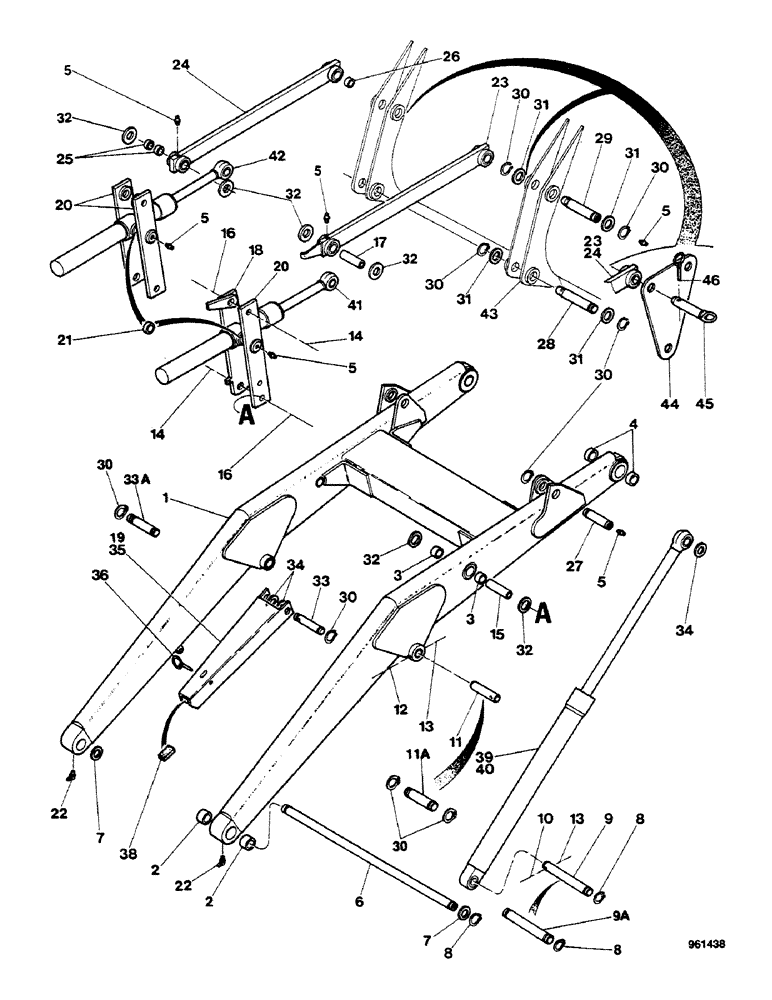

Запчасти Case 580G (344) - LOADER - FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D89005

FRAME

Includes: Ref. 2 - 4

1шт.

E45791 + E45825 + D131972 + D25279(4)

1шт.

1

E45791

DIPPER

FRAME, Includes: Ref. 2 - 4

1шт.

2

D67150

BUSHING,45.23mm ID x 53.99mm OD x 33mm L

4шт.

3

D37763

BUSHING

4шт.

4

D67061

BUSHING,38.25mm ID x 47.65mm OD x 70mm L

4шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

10шт.

6

D65705

CROSS SHAFT

SHAFT

1шт.

7

D71067

WASHER

1шт.

8

D25280

SNAP RING,#175, Ext

6шт.

9

D67426

PIN

2шт.

D123567 + D25280 (2), E46468 + (2) F62105

1шт.

9a

D123567

PIN

2шт.

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

If used

2шт.

11

D71927

PIN

1шт.

11a

E45825

PIN

1шт.

12

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

If used

2шт.

13

131-652

LOCK NUT,3/8"-16, GB

If used

4шт.

14

13-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

4шт.

15

D93829

SPACER

2шт.

16

25-1016

NUT,1"-8, G5

4шт.

17

D31219

BUSHING,26.67mm ID x 38.08mm OD x 101.6mm L

4-3/8" Long.

2шт.

17

D93829

SPACER

4-15/16" Long.

2шт.

18

D94129

LINK

E46470 + (2) F62105

1шт.

18

E46470

PITMAN

LINK

1шт.

19

E41288

ADHESIVE

STRIP, For Germany

1шт.

20

D94128

LINK

LH, E46469 + (2) F62105, Includes: Ref. 21

2шт.

20

E46469

LINK

Includes: Ref. 21

3шт.

21

D94125

BUSHING

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

23

E46206

ROD

LINK, Includes: Ref. 25 and 26

1шт.

D123567 + D25280 (2), E46468 + (2) F62105

1шт.

23

E46468

DRAG LINK

Includes: Ref. 25 and 26

1шт.

24

E41430

LINK

E46207, Includes: Ref. 25 and 26

1шт.

24

E46207

ROD

LINK, Includes: Ref. 25 and 26

1шт.

25

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

Used with E41430 only

2шт.

26

D67061

BUSHING,38.25mm ID x 47.65mm OD x 70mm L

1шт.

27

E41415

PIN

2шт.

28

D71697

PIN

2шт.

29

D71696

PIN

2шт.

30

D25279

SNAP RING,M35, Int

16шт.

31

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

8шт.

32

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

4/8шт.

33

D120866

PIN

1шт.

33a

D131972

PIN

1шт.

34

D70359

WASHER

3шт.

35

D124295

STAY

STRUT safety

1шт.

36

D120675

HITCH PIN

1шт.

38

D89691

STRIP

rubber

1шт.

39

REF

INSTRUCTION

CYLINDER RH, See Figure 314

1шт.

40

REF

INSTRUCTION

CYLINDER LH, See Figure 314

1шт.

41

REF

INSTRUCTION

CYLINDER RH, See Figure 316

1шт.

42

REF

INSTRUCTION

CYLINDER LH, See Figure 316

1шт.

43

REF

INSTRUCTION

BUCKET loader, See Figure 346

1шт.

44

E44043

PLATE

SPARE PART For Germany

1шт.

45

D49879

PIN

For Germany

1шт.

46

D33805

PIN

Klik, For Germany

1шт.
