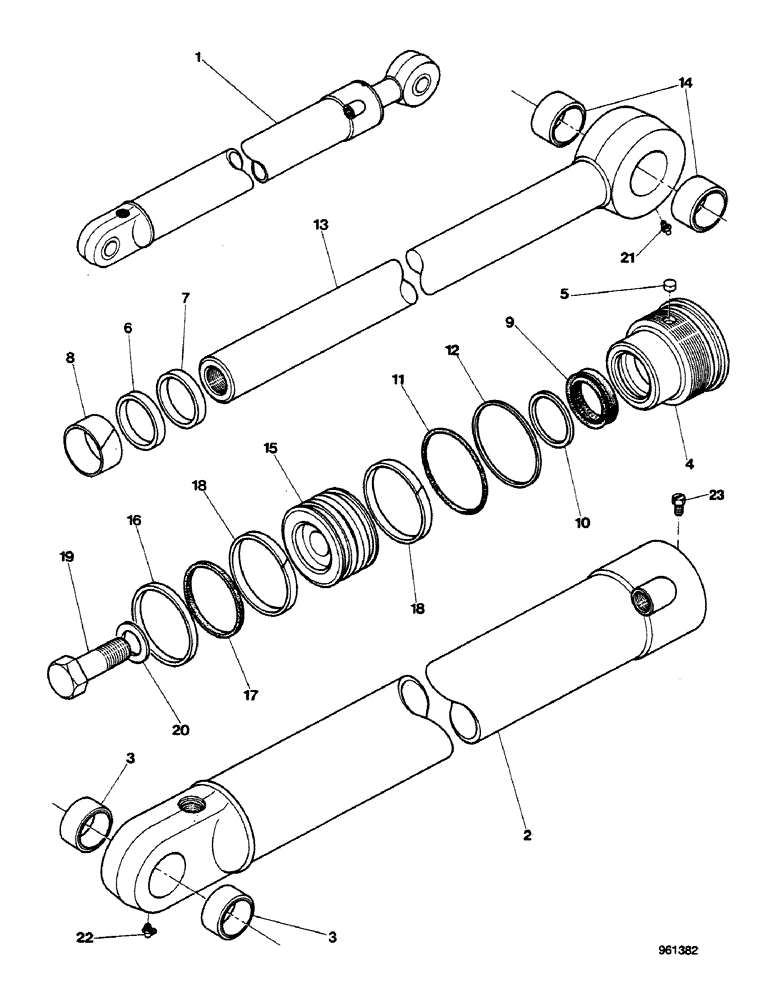

Запчасти Case 580G (332) - BACKHOE - BUCKET CYLINDER (08) - HYDRAULICS

1

G101176

CYLINDER

ASSY, G110144, Includes: Ref. 2 - 23

1шт.

1

G110144

CYLINDER ASSY.

ASSY, Includes: Ref. 2 - 23

1шт.

2

G32399

CYLINDER

TUBE ASSY, G110145, Includes: Ref. 3

1шт.

2

G110145

TUBE

Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

G104402

GLAND

ASSY, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

G102569

PLUG

If used

1шт.

6

NSS

NOT SOLD SEPARAT

RING

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of Seal Kit, P/N G109453

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

Part of Seal Kit, P/N G109453

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

See G100778

1шт.

Part of Seal Kit, P/N G109453

1шт.

10

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

1шт.

Part of Seal Kit, P/N G109453

1шт.

11

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N G109453

1шт.

12

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

backup

1шт.

Part of Seal Kit, P/N G109453

1шт.

13

G33162

ROD

ASSY, Includes: Ref. 14

1шт.

14

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

2шт.

15

G100694

PISTON

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

Part of Seal Kit, P/N G109453

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup

1шт.

Part of Seal Kit, P/N G109453

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit, P/N G109453

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

23

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

G109453

GASKET KIT

Includes: Ref. 7 - 12 and 16 - 18

1шт.

G100778

SEAL

(Special seal for severe heat or cold)

1шт.
