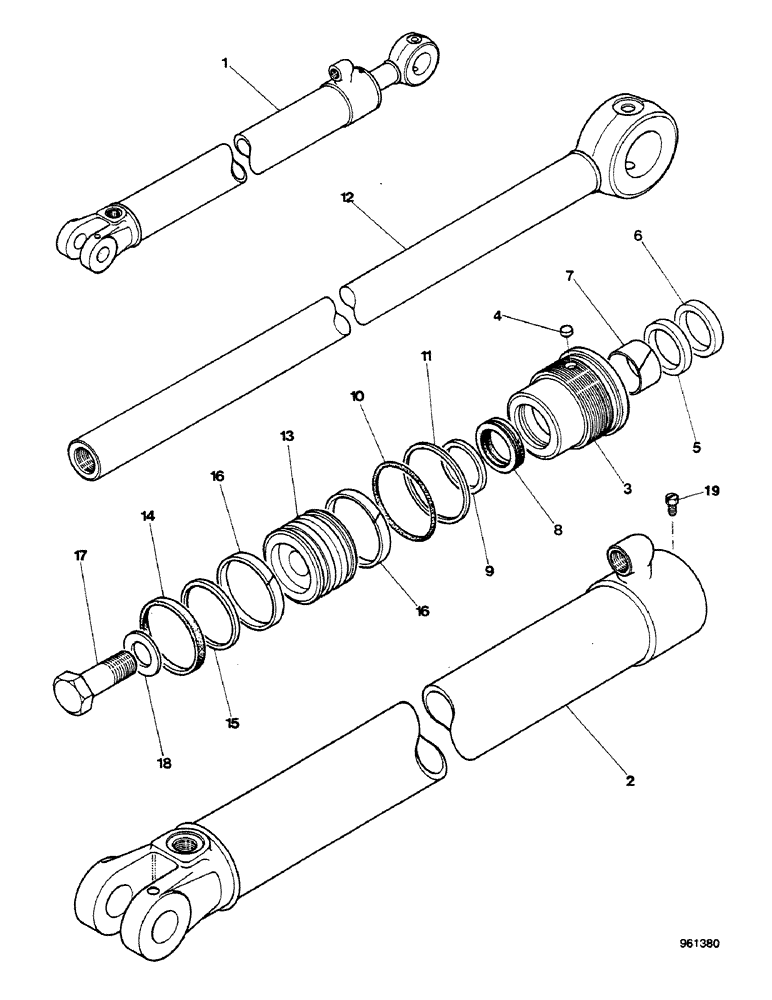

Запчасти Case 580G (328) - BACKHOE - BOOM CYLINDER (08) - HYDRAULICS

1

G106168

CYLINDER,Double Acting, 44.45mm Rod, 1062.99mm Stroke

ASSY, Includes: Ref. 2 - 19

2шт.

G109339 + L103135 + (2) D26919 + (2) 195-2155

1шт.

1

G106168R

REMAN-HYD CYLINDER

580G CASE CONSTRUCTION KING LOADER BACKHOE, ASSY

2шт.

1

G106168C

CORE-HYD CYLINDER

Return Number

2шт.

1

G109339

CYLINDER

ASSY, Includes: Ref. 2 - 19

2шт.

1

G106168R

REMAN-HYD CYLINDER

580G CASE CONSTRUCTION KING LOADER BACKHOE, ASSY, Reman for New PN G109339

2шт.

1

G106168C

CORE-HYD CYLINDER

Return Number

2шт.

2

G106169

TUBE,3.25" DIA x 51.49" L

1шт.

G107671

GLAND

ASSY, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

G102569

PLUG

If used

2шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

wiper

1шт.

Part of Seal Kit, P/N G109417

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

Part of Seal Kit, P/N G109417

1шт.

8

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

See G100777

1шт.

Part of Seal Kit, P/N G109417

1шт.

9

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

1шт.

Part of Seal Kit, P/N G109417

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N G109417

1шт.

11

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

backup

1шт.

Part of Seal Kit, P/N G109417

1шт.

12

G33885

ROD

1шт.

G109340 + L103135 + (2) D26919 + (2) 195-2155

1шт.

12

G109340

PISTON ROD

w/o hole

1шт.

13

G100642

PISTON

1шт.

14

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

1шт.

Part of Seal Kit, P/N G109417

1шт.

15

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

backup

1шт.

Part of Seal Kit, P/N G109417

1шт.

16

S109445

RING,82.55mm OD, Ext

2шт.

Part of Seal Kit, P/N G109417

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

19

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

G109417

GASKET KIT

Includes: Ref. 6 - 11 and 14 - 16

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

(Special seal for severe heat or cold)

1шт.
