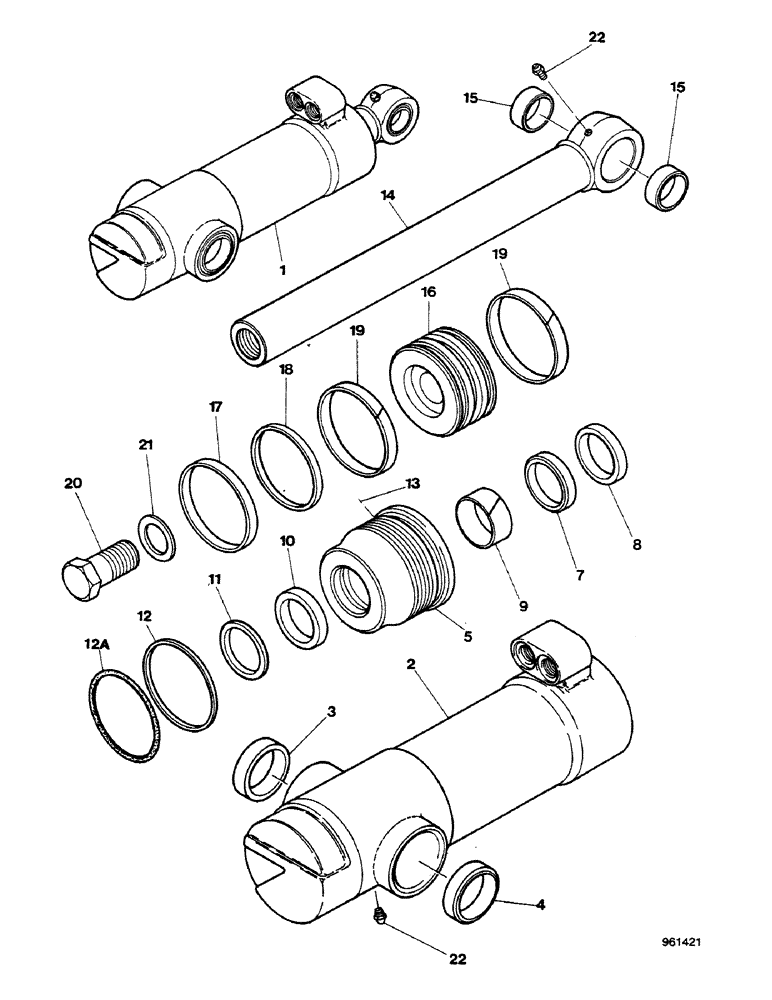

Запчасти Case 580G (327A) - SIDESHIFT BACKHOE - SWING CYLINDER (SEE FIGURE 326) (08) - HYDRAULICS

1

G106519

CYLINDER

ASSY, Includes: Ref. 2 - 22

2шт.

2

G105803

TUBE

ASSY, Includes: Ref. 3 and 4

1шт.

3

G35413

BUSHING

1шт.

4

G100986

BUSHING

1шт.

G107653

GLAND

ASSY, Includes: Ref. 5 - 12A

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

7

NSS

NOT SOLD SEPARAT

RING

1шт.

8

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

wiper

1шт.

Part of Seal Kit, P/N G107687

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

Part of Seal Kit, P/N G107687

1шт.

10

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

See G100777

1шт.

Part of Seal Kit, P/N G107687

1шт.

11

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

1шт.

Part of Seal Kit, P/N G107687

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Kit, P/N G107687

1шт.

12a

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N G107687

1шт.

13

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

14

G106520

PISTON ROD

ASSY, Includes: Ref. 15

1шт.

15

G35418

BUSHING,45.2mm ID x 53.98mm OD x 22.35mm L

2шт.

16

G106529

PISTON

1шт.

17

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

Part of Seal Kit, P/N G107687

1шт.

18

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

backup

1шт.

Part of Seal Kit, P/N G107687

1шт.

19

G100448

RING,101.6mm OD, Ext

wear

2шт.

Part of Seal Kit, P/N G107687

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

21

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

G107687

GASKET KIT

Includes: Ref. 8 - 12A and 17 - 19

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

(Special seal for severe heat or cold)

1шт.
