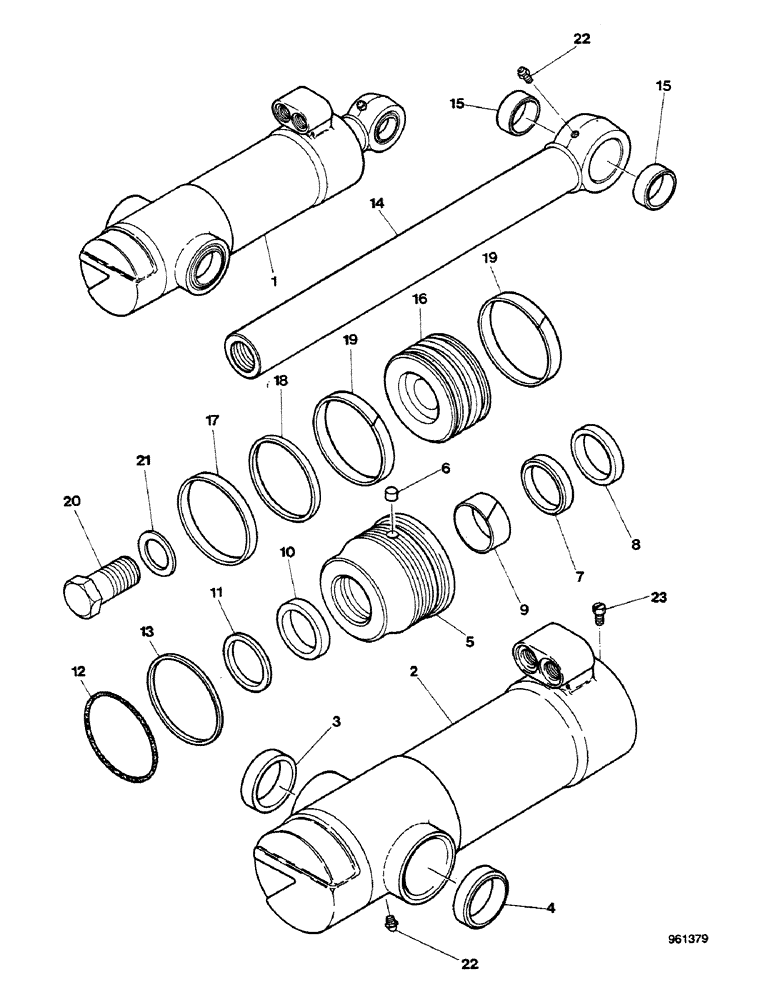

Запчасти Case 580G (326) - SIDESHIFT BACKHOE - SWING CYLINDER (08) - HYDRAULICS

1

G105960

CYLINDER

ASSY, (2) G106519 (See figure 327A), Includes: Ref. 2 - 23

2шт.

2

G105803

TUBE

ASSY, Includes: Ref. 3 and 4

1шт.

3

G35413

BUSHING

1шт.

4

G100986

BUSHING

1шт.

G107524

GLAND

ASSY, Includes: Ref. 5 - 13

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

G102569

PLUG

If used

1шт.

7

NSS

NOT SOLD SEPARAT

RING

1шт.

8

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of Seal Kit, P/N G109423

1шт.

9

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

Part of Seal Kit, P/N G109423

1шт.

10

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

See G100778

1шт.

Part of Seal Kit, P/N G109423

1шт.

11

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

1шт.

Part of Seal Kit, P/N G109423

1шт.

12

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N G109423

1шт.

13

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Kit, P/N G109423

1шт.

14

G104956

ROD

ASSY, Includes: Ref. 15

1шт.

15

G35418

BUSHING,45.2mm ID x 53.98mm OD x 22.35mm L

2шт.

16

G101309

PISTON

1шт.

17

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

Part of Seal Kit, P/N G109423

1шт.

18

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

backup

1шт.

Part of Seal Kit, P/N G109423

1шт.

19

G100448

RING,101.6mm OD, Ext

wear

2шт.

Part of Seal Kit, P/N G109423

1шт.

20

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

1шт.

21

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

23

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

G109423

GASKET KIT

Includes: Ref. 8 - 13 and 17 - 19

1шт.

G100778

SEAL

(Special seal for severe heat or cold)

1шт.
