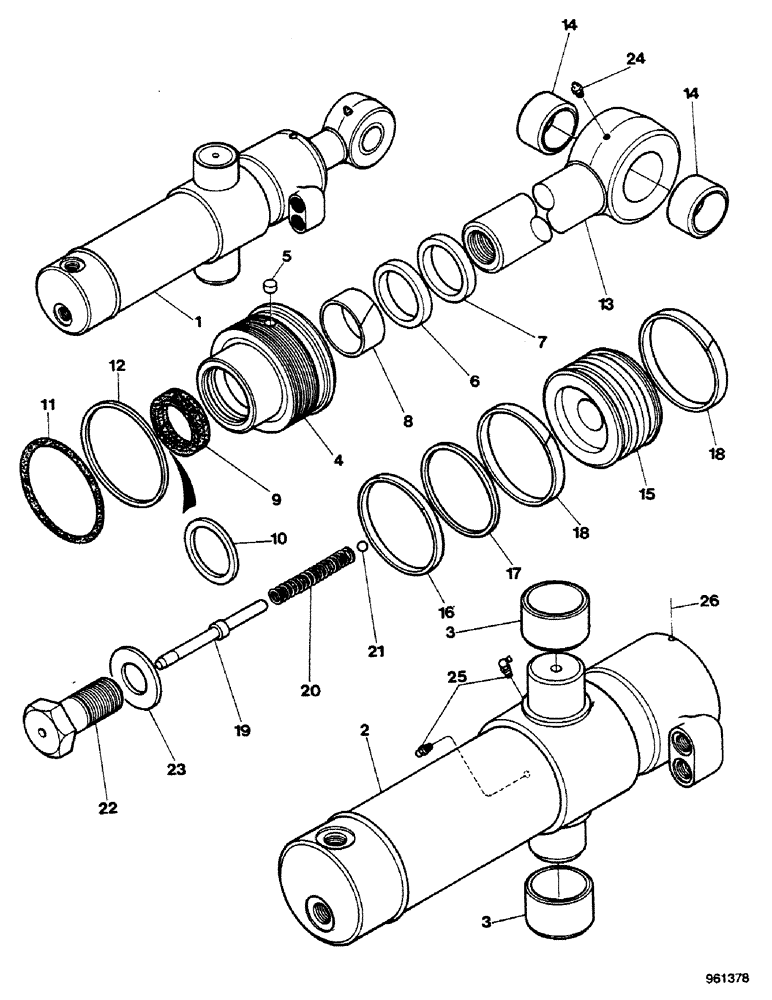

Запчасти Case 580G (324) - AXIAL BACKHOE-SWING CYLINDERS (08) - HYDRAULICS

1

G104917

CYLINDER

ASSY, G110165, Includes: Ref. 2 - 26

2шт.

1

G110165

CYLINDER

ASSY, Includes: Ref. 2 - 26

2шт.

2

G103774

TUBE,469.89" L

TUBE ASSY, Includes: Ref. 33

1шт.

3

G34875

BUSHING,50.67mm ID x 60.25mm OD x 33.53mm L

2шт.

G107524

GLAND

ASSY, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

G102569

PLUG

If used

1шт.

6

NSS

NOT SOLD SEPARAT

RING

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of Seal Kit, P/N 109423

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

Part of Seal Kit, P/N 109423

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

See G100778

1шт.

10

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

1шт.

Part of Seal Kit, P/N 109423

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 109423

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Kit, P/N 109423

1шт.

13

G34775

ROD ASSY.

ASSY, G110166, Includes: Ref. 14

1шт.

13

G110166

ROD

Includes: Ref. 14

1шт.

14

G34854

BUSHING,44.58mm ID x 53.98mm OD x 22.35mm L

2шт.

15

G101309

PISTON

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

Part of Seal Kit, P/N 109423

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

backup

1шт.

Part of Seal Kit, P/N 109423

1шт.

18

G100448

RING,101.6mm OD, Ext

wear

2шт.

Part of Seal Kit, P/N 109423

1шт.

19

G104378

PIN

1шт.

20

D38683

SPRING

1шт.

21

211-17

BALL,3/4" Dia

1шт.

22

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

1шт.

23

G32351

WASHER

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

26

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

G109423

GASKET KIT

Includes: Ref. 7 - 12 and 16 - 18

1шт.

G100778

SEAL

(Special seal for severe heat or cold)

1шт.
