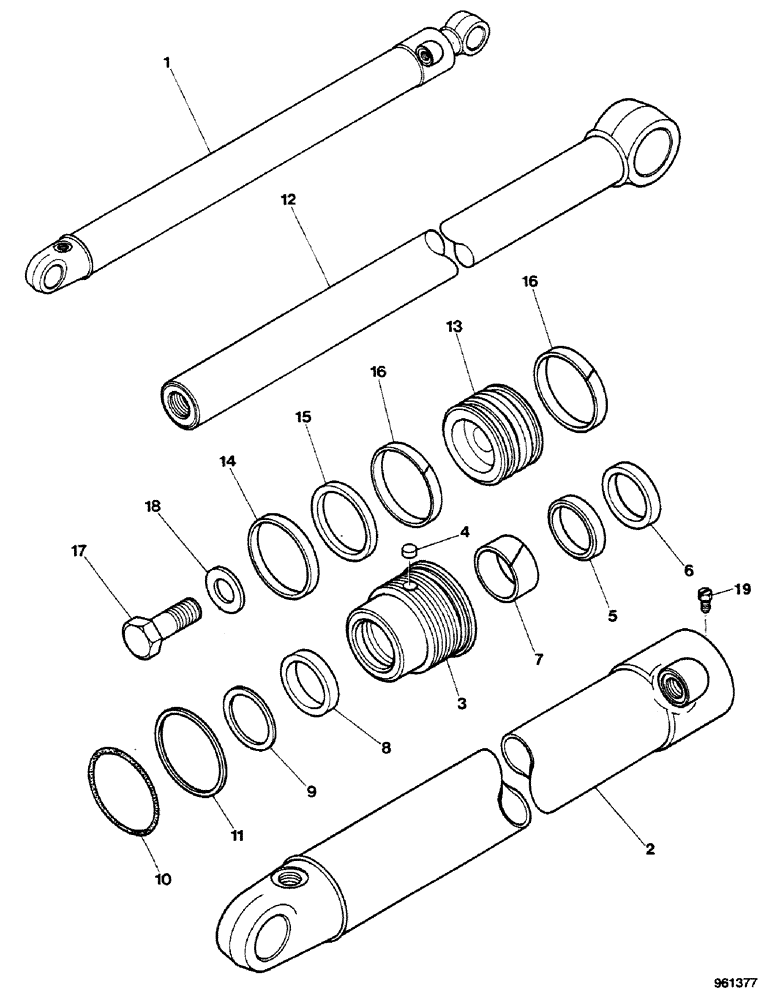

Запчасти Case 580G (322) - SIDESHIFT BACKHOE - STABILIZER CYLINDERS (08) - HYDRAULICS

1

G101352

CYLINDER ASSY.

LH, Includes: Ref. 2 - 19

1шт.

1

G101353

CYLINDER ASSY.

RH, Includes: Ref. 2 - 19

1шт.

2

G101664

TUBE,3" OD x 31.19" L

LH

1шт.

2

G101665

TUBE,3" DIA x 31.19" L

TUBE RH

1шт.

G104240

GLAND

ASSY, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

G102569

PLUG

If used

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

wiper

1шт.

Part of Seal Kit, P/N G109460

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

Part of Seal Kit, P/N G109460

1шт.

8

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

See G100777

1шт.

Part of Seal Kit, P/N G109460

1шт.

9

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

1шт.

Part of Seal Kit, P/N G109460

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N G109460

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup

1шт.

Part of Seal Kit, P/N G109460

1шт.

12

G100009

PISTON ROD

1шт.

13

G100704

PISTON

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

backup

1шт.

Part of Seal Kit, P/N G109460

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

2шт.

Part of Seal Kit, P/N G109460

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

19

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

G109460

GASKET KIT

Includes Ref..6 - 11, 15 and 16

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

(Special seal for severe heat or cold)

1шт.
