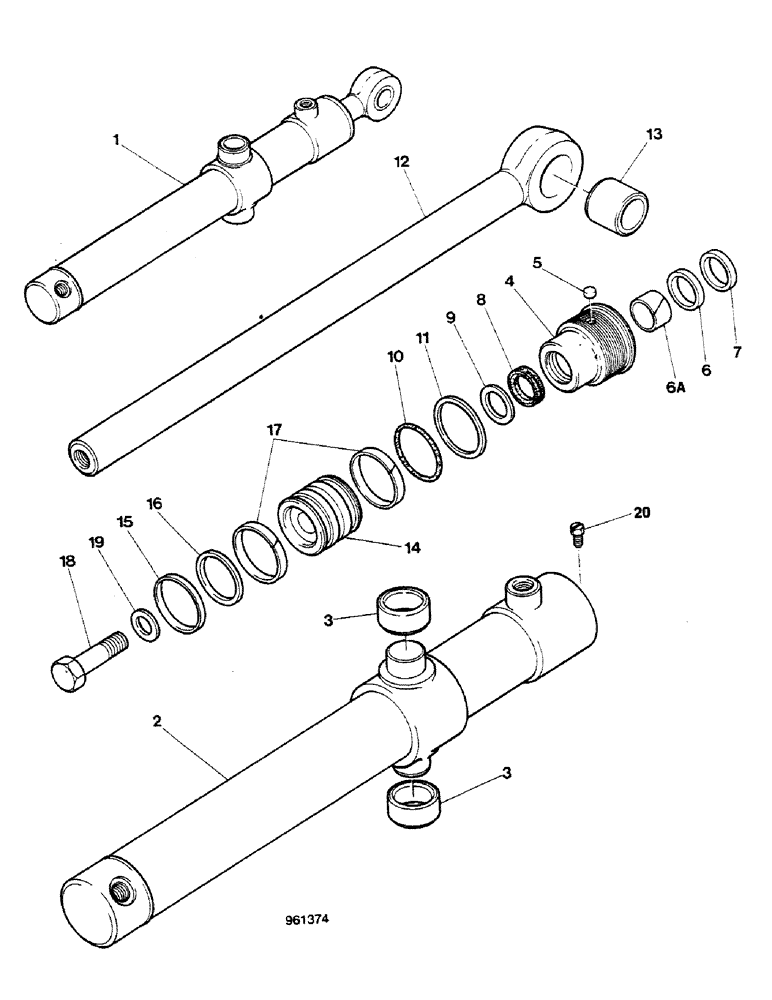

Запчасти Case 580G (316) - LOADER - TILT CYLINDERS (08) - HYDRAULICS

1

G105061

CYLINDER

SPARE PART ASSY RH, Includes: Ref. 2 - 20

1шт.

1

G105062

CYLINDER

ASSY LH, Includes: Ref. 2 - 20

1шт.

2

G105063

TUBE

SPARE PART ASSY RH, Includes: Ref. 3

1шт.

2

G105064

TUBE

ASSY LH, Includes: Ref. 3

1шт.

3

G104524

BUSHING

2шт.

G105071

HEAD

GLAND ASSY, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

G102569

PLUG

If used

1шт.

6

NSS

NOT SOLD SEPARAT

RING

1шт.

6a

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

Part of Seal Kit, P/N G109480

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

wiper

1шт.

Part of Seal Kit, P/N G109480

1шт.

8

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

See G100776

1шт.

Part of Seal Kit, P/N G109480

1шт.

9

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

1шт.

Part of Seal Kit, P/N G109480

1шт.

10

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N G109480

1шт.

11

L14340

SEALING RING,69.85mm ID x 76.2mm OD x 1.59mm Thk

backup

1шт.

Part of Seal Kit, P/N G109480

1шт.

12

G104451

PISTON ROD

ASSY, Includes: Ref. 13

1шт.

13

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

1шт.

14

G105186

PISTON

SPARE PART

1шт.

15

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

1шт.

Part of Seal Kit, P/N G109480

1шт.

16

G104439

RING

backup

1шт.

Part of Seal Kit, P/N G109480

1шт.

17

G105187

RING

wear

2шт.

Part of Seal Kit, P/N G109480

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

20

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

G109480

KIT

seal, Includes: Ref 6A - 11and 15 - 17

1шт.

G100776

SEAL

(Special seal for severe heat or cold)

1шт.
