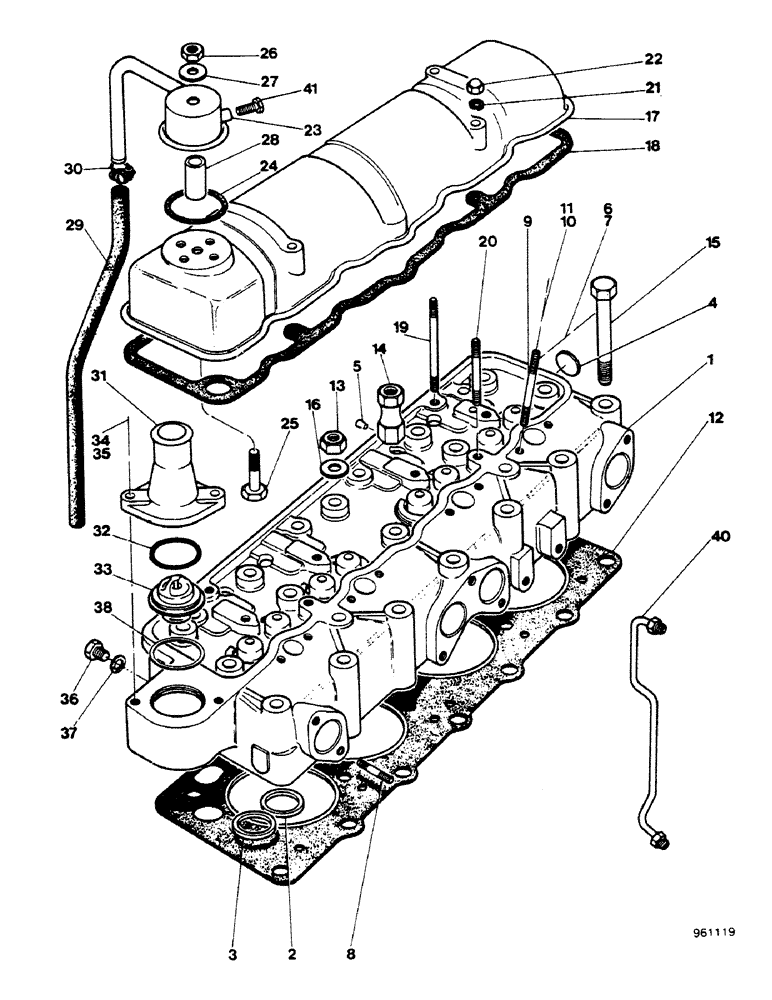

Запчасти Case 580G (032) - ENGINE - CYLINDER HEAD AND COVER (02) - ENGINE

1

K260131

HEAD (CYLINDER)

K260131 + K302026, Includes: Ref. 2 - 5, Serial Range: -11.391.337

1шт.

2

K921246

INSERT

inlet

4шт.

3

K921247

INSERT

exhaust

4шт.

4

41-1020

PLUG,Cup, 1 1/4"

1шт.

5

K900431

PLUG

4шт.

6

K19591

PLUG

flanged

1шт.

7

K16732

WASHER

1шт.

8

K608203

STUD

1-7/16"long

10шт.

8

K608216

STUD

1-3/8" long

1шт.

8

K608242

STUD

2-3/4" long

2шт.

8

K608237

STUD

1-3/4" long

2шт.

9

K608107

STUD

8шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

8шт.

11

9635082

NUT,5/16" - 18, Gr 5

8шт.

12

K953783

CYLINDER HEAD GASKET

1шт.

13

K617594

NUT

5шт.

14

K906536

NUT

PIN, LARGE NUT special

7шт.

15

K600870

BOLT

7шт.

16

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

19шт.

17

K207984

COVER

1шт.

18

K905229

GASKET,3.97mm Thk

1шт.

19

K608118

STUD

2шт.

20

K608119

STUD

2шт.

21

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

special

4шт.

22

129-880

CROWN NUT,Crown, 5/16"-18

special

4шт.

23

K948118

COVER

K203882 + K616036

1шт.

23

K203882

COVER

1шт.

24

K626901

O-RING,40554" ID x 40575" OD x 0.12"

1шт.

25

K600803

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

1шт.

26

25-148

JAM NUT,Jam, 1/2"-13, G5

Lock

1шт.

27

K626443

WASHER

1шт.

28

K945433

BUSHING

1шт.

29

K207439

HOSE

1шт.

30

214-107

HOSE CLAMP,#12, 3/4", Spring

1шт.

31

K915630

OUTLET

PIPE

1шт.

32

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

33

K208039

THERMOSTAT

1шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

36

K623829

PLUG

To be used on model without heater

1шт.

37

K19500

GASKET

To be used on model without heater

1шт.

38

K200225

GASKET,0.81mm Thk

1шт.

40

K902765

PIPE

oil

1шт.

K260285

GASKET KIT

decarbonization

1шт.

41

K616036

PLUG

(If used)

1шт.
