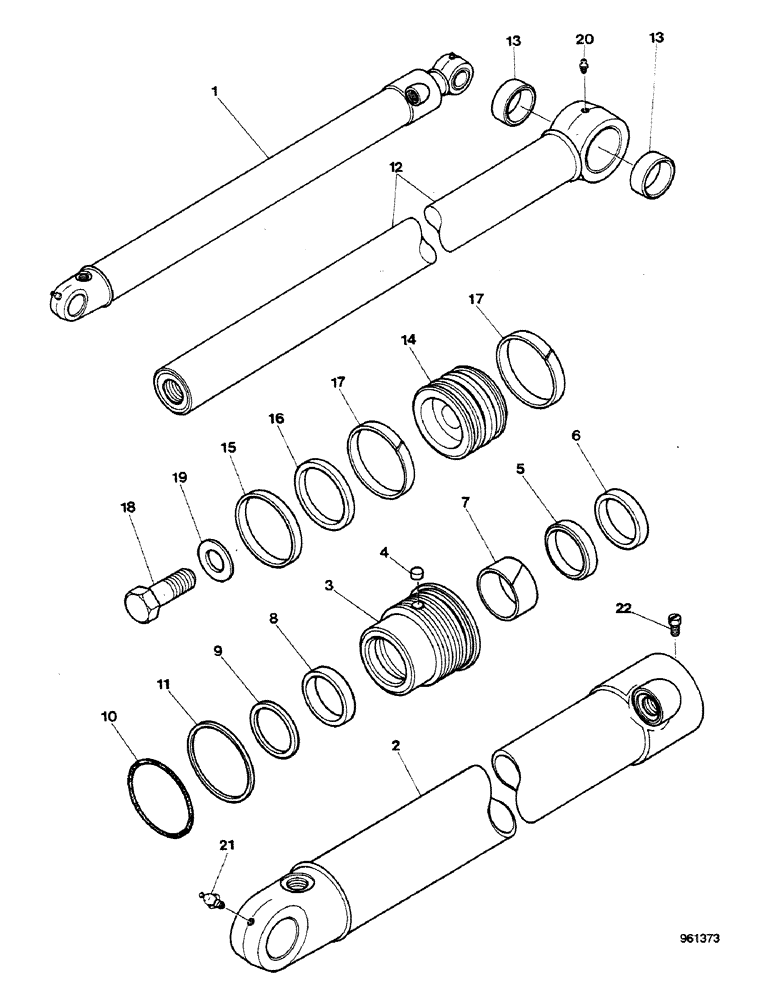

Запчасти Case 580G (314) - LOADER - LIFT CYLINDERS (08) - HYDRAULICS

1

G105026

CYLINDER

ASSY RH, Includes: Ref. 2 - 22

1шт.

1

G105025

CYLINDER

ASSY LH, Includes: Ref. 2 - 22

1шт.

2

G105028

CYLINDER,39.68" L

TUBE - RH

1шт.

2

G105027

CYLINDER

TUBE - LH

1шт.

G104252

GLAND

ASSY, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

G102569

PLUG

If used

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of Seal Kit, P/N G109465

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

Part of Seal Kit, P/N G109465

1шт.

8

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

See G100778

1шт.

Part of Seal Kit, P/N G109465

1шт.

9

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

1шт.

Part of Seal Kit, P/N G109465

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N G109465

1шт.

11

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

backup

1шт.

Part of Seal Kit, P/N G109465

1шт.

12

G100468

PISTON ROD

ASSY, Includes: Ref. 13

1шт.

13

G35396

BUSHING

2шт.

14

G100640

PISTON

1шт.

15

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

1шт.

Part of Seal Kit, P/N G109465

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

backup

1шт.

Part of Seal Kit, P/N G109465

1шт.

17

S109445

RING,82.55mm OD, Ext

wear

2шт.

Part of Seal Kit, P/N G109465

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

22

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

G109465

GASKET KIT

Includes: Ref. 6 - 11 and 15 - 17

1шт.

G100778

SEAL

(Special seal for severe heat or cold)

1шт.
