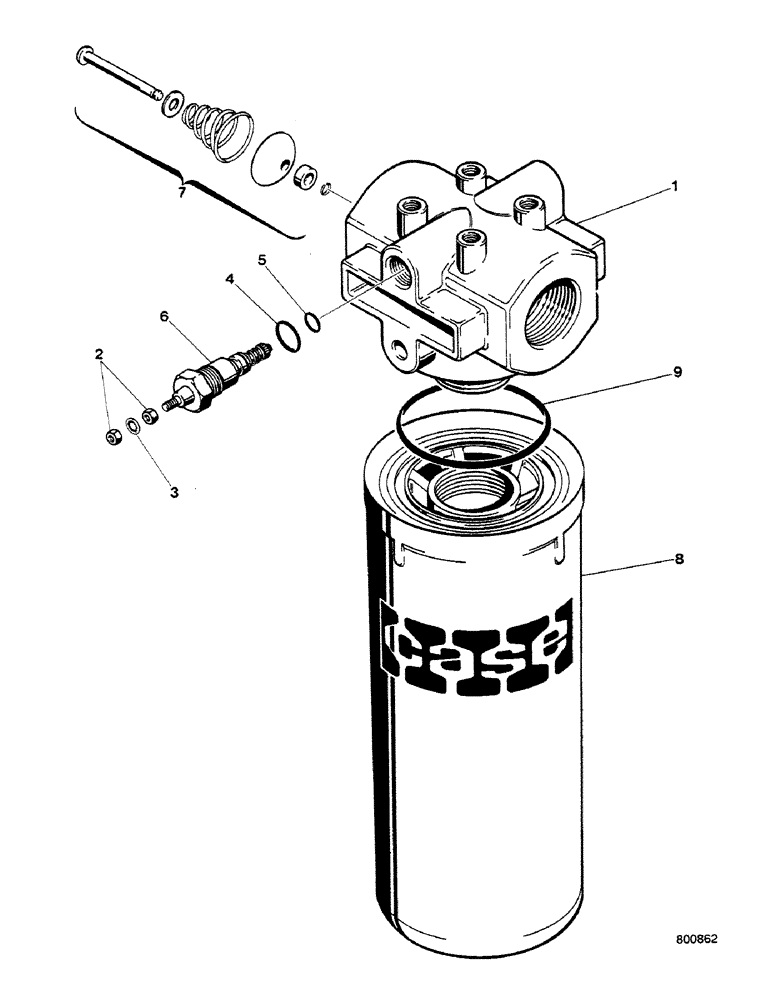

Запчасти Case 580G (312) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

D122362

FILTER

ASSY, D131293 + (2) 218-5110, Includes: Ref. 1 - 9

1шт.

D131293

FILTER

ASSY, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD

1шт.

N6755

PRESSURE SWITCH

RESTRICTION INDICATOR ASSY, Includes: Ref. 2 - 6

1шт.

N6941

KIT

Includes: Ref. 2 - 5

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

193-99

LOCK WASHER,Int Tooth, #10

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR restriction

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE

1шт.

84239751

HYDRAULIC OIL FILTER

ASSY, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

9

N9026

O-RING

1шт.
