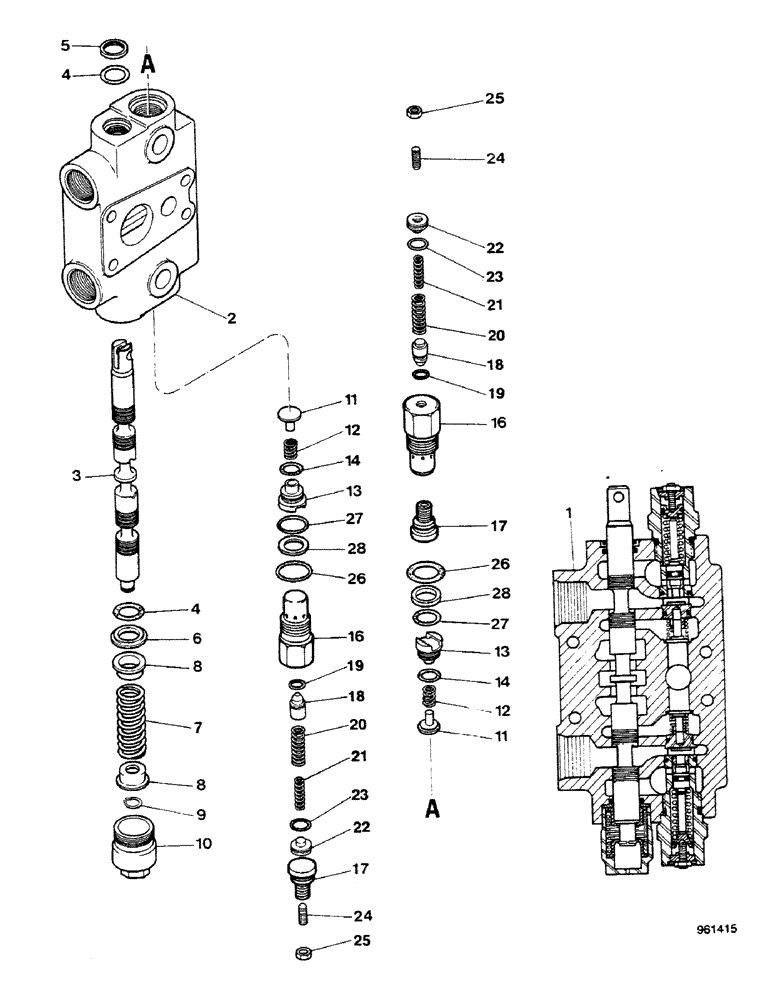

Запчасти Case 580G (306) - BACKHOE CONTROL VALVE - DIPPER AND BUCKET SECTION (08) - HYDRAULICS

1

G110237

VALVE

SECTION ASSY, Includes: Ref. 2 - 28

2шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

G108461

O-RING

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

1шт.

6

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

7

G110135

SPRING

centering

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

9

G33077

SNAP RING,#47, Ext

#47, Ext

1шт.

10

G33080

CAP

1шт.

11

G33081

VALVE POPPET

2шт.

12

G33573

SPRING

2шт.

13

G33084

PLUG

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

2шт.

G109445

VALVE ASSY secondary relief, For service order G109449, Includes: Ref. 16 - 28

2шт.

16

NSS

NOT SOLD SEPARAT

BODY

1шт.

17

NSS

NOT SOLD SEPARAT

SEAT

1шт.

18

NSS

NOT SOLD SEPARAT

POPPET

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING outer

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING inner

1шт.

22

NSS

NOT SOLD SEPARAT

PISTON

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING

1шт.

24

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

1шт.

25

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup

1шт.
