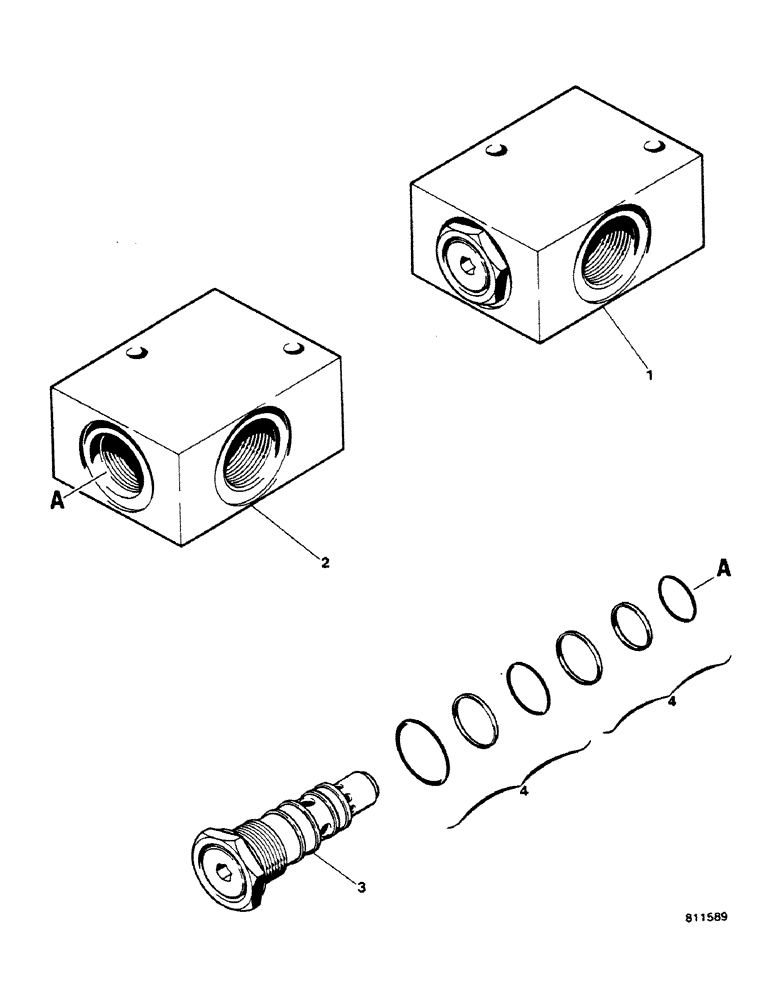

Запчасти Case 580G (302) - CHECK VALVE FOR STABILIZER CYLINDERS (08) - HYDRAULICS

1

D120554

VALVE

check (STERLING), Includes: Ref. 2 - 4, Serial Range: -3.951.532

1шт.

For Dep. E46377 + E45956 (2) + 218-5059 (2) See figure 245A

1шт.

For Axi. E46377 + 218-5066 (2) + 218-5059 (2) See figure 222

1шт.

2

NSS

NOT SOLD SEPARAT

BODY, Serial Range: -3.951.532

1шт.

N7625

VALVE POPPET

CARTRIDGE, Serial Range: -3.951.532

1шт.

3

NSS

NOT SOLD SEPARAT

BODY, Serial Range: -3.951.532

1шт.

4

N7640

SEAL

KIT, Serial Range: -3.951.532

1шт.

1

E46377

VALVE

check (LASER), Includes: Ref. 2 - 4, Start Serial: 3.951.533

1шт.

2

NSS

NOT SOLD SEPARAT

BODY, Start Serial: 3.951.533

1шт.

E46546

LOCK VALVE

CARTRIDGE ASSY, Start Serial: 3.951.533

1шт.

3

NSS

NOT SOLD SEPARAT

BODY, Start Serial: 3.951.533

1шт.

4

E46547

SEAL PACKAGE

, Start Serial: 3.951.533

1шт.
