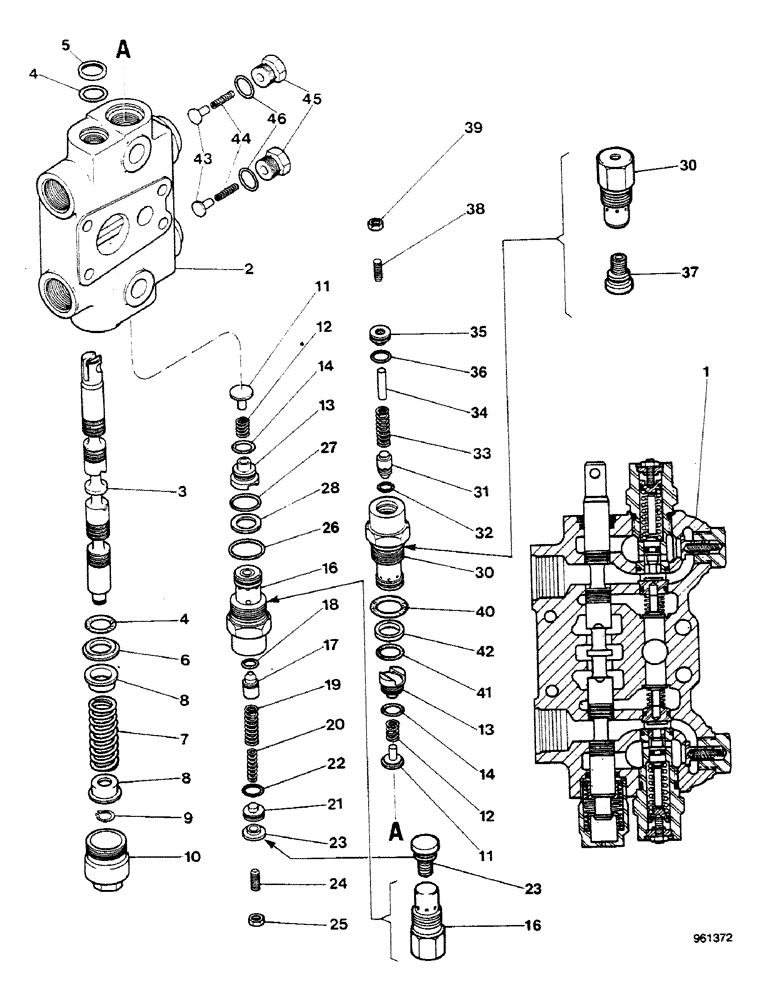

Запчасти Case 580G (301A) - BACKHOE CONTROL VALVE - BOOM SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
G109518
VALVE
SECTION ASSY, Includes: Ref. 2 - 46
1шт.
2
NSS
NOT SOLD SEPARAT
BODY
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
4
G108461
O-RING
2шт.
5
A32309
SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk
1шт.
6
G102711
RETAINER COLLAR,19.3 mm ID x 32.97 mm OD
1шт.
7
G34463
SPRING
centering
1шт.
8
G33075
RETAINER,12.2mm ID, 27.9mm OD
2шт.
9
G33077
SNAP RING,#47, Ext
#47, Ext
1шт.
10
P0033080G
SCREW
1шт.
11
G33081
VALVE POPPET
2шт.
12
G33573
SPRING
2шт.
13
G33084
PLUG
2шт.
14
G33686
O-RING,0.07" Thk x 0.61" ID
2шт.
G109445
VALVE ASSY secondary relief, For service order G109449, Includes: Ref. 16 - 28
1шт.
16
NSS
NOT SOLD SEPARAT
BODY
1шт.
17
NSS
NOT SOLD SEPARAT
POPPET
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING
1шт.
19
NSS
NOT SOLD SEPARAT
outer
1шт.
20
NSS
NOT SOLD SEPARAT
inner
1шт.
21
NSS
NOT SOLD SEPARAT
PISTON
1шт.
22
NSS
NOT SOLD SEPARAT
O-RING
1шт.
23
NSS
NOT SOLD SEPARAT
SEAT
1шт.
24
178-890
SET SCREW,Hex Soc, 5/16"-24 x 1"
1шт.
25
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
26
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
27
G107675
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
28
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
backup
1шт.
G109443
VALVE
ASSY secondary relief, For service order G109448, Includes: Ref. 30 - 42
1шт.
30
NSS
NOT SOLD SEPARAT
BODY
1шт.
31
NSS
NOT SOLD SEPARAT
POPPET
1шт.
32
NSS
NOT SOLD SEPARAT
O-RING
1шт.
33
NSS
NOT SOLD SEPARAT
SPRING
1шт.
34
NSS
NOT SOLD SEPARAT
PIN
1шт.
35
NSS
NOT SOLD SEPARAT
PISTON
1шт.
36
NSS
NOT SOLD SEPARAT
O-RING
1шт.
37
NSS
NOT SOLD SEPARAT
SEAT
1шт.
38
178-890
SET SCREW,Hex Soc, 5/16"-24 x 1"
1шт.
39
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
40
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
41
G107675
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
42
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
backup
1шт.
43
G34938
VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L
2шт.
44
G34458
SPRING,Compression, 5.08mm OD x 27.56mm L
2шт.
45
G34937
PLUG
2шт.
46
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
2шт.
Выбрано товаров: 46
