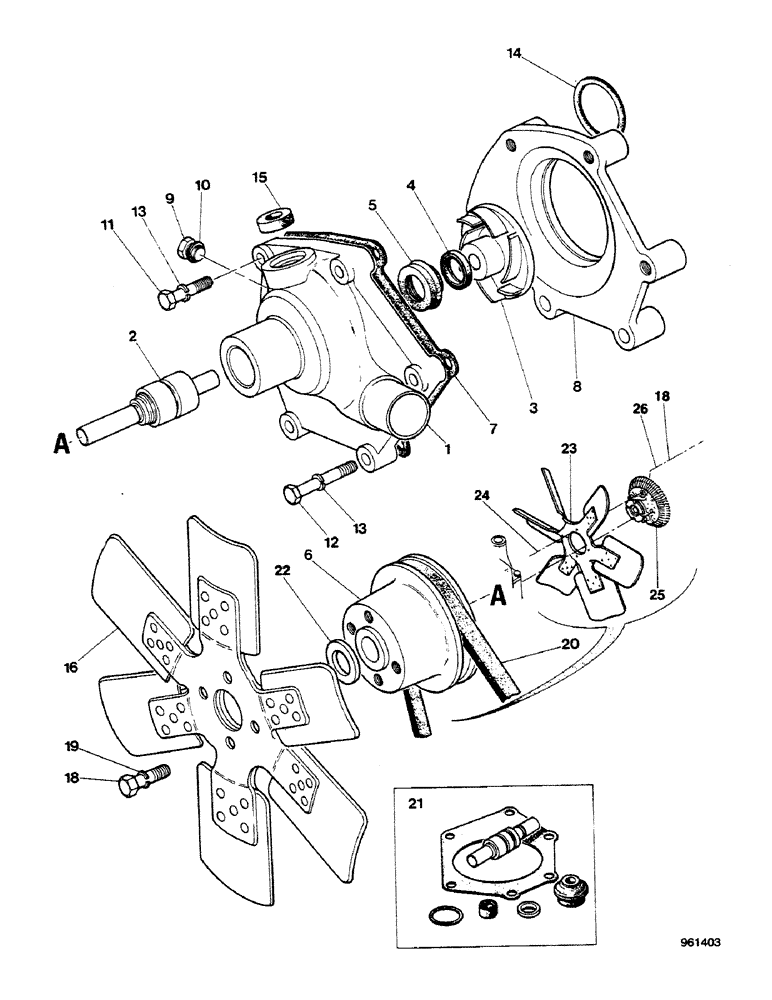

Запчасти Case 580G (030) - ENGINE - WATER PUMP AND FAN (02) - ENGINE

K207178

PUMP

water, Includes: Ref. 1 - 6

1шт.

1

K201749

HOUSING

1шт.

2

K620202

BEARING ASSY

SHAFT

1шт.

Part of repair package, P/N K965888

1шт.

3

K200687

IMPELLER

1шт.

4

K200821

RING

1шт.

Part of repair package, P/N K965888

1шт.

5

K200823

GLAND

SEAL

1шт.

Part of repair package, P/N K965888

1шт.

6

K207179

PULLEY

1шт.

7

K942844

GASKET

1шт.

Part of repair package, P/N K965888

1шт.

8

K942843

HOUSING

1шт.

9

K623829

PLUG

To be used on model without heater

1шт.

10

K19500

GASKET

To be used on model without heater

1шт.

11

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1 - 1/4 long

2шт.

12

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

14

K24737

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

1шт.

Part of repair package, P/N K965888

1шт.

15

K915330

SEALING RING

rubber

1шт.

Part of repair package, P/N K965888

1шт.

16

E45714

FAN

suction

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

K952514

V-BELT

Fan

1шт.

21

K965888

PACKAGE, REPAIR

Includes Refs. 2, 4, 5, 7, 14 and 15

1шт.

22

E45705

SPACER

SPARE PART If used

1шт.

23

D125134

FAN

suction, Used with D121536

1шт.

24

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

25

D121536

CLUTCH

SPARE PART

1шт.

26

195-525

WASHER,3/8", SAE

4шт.
