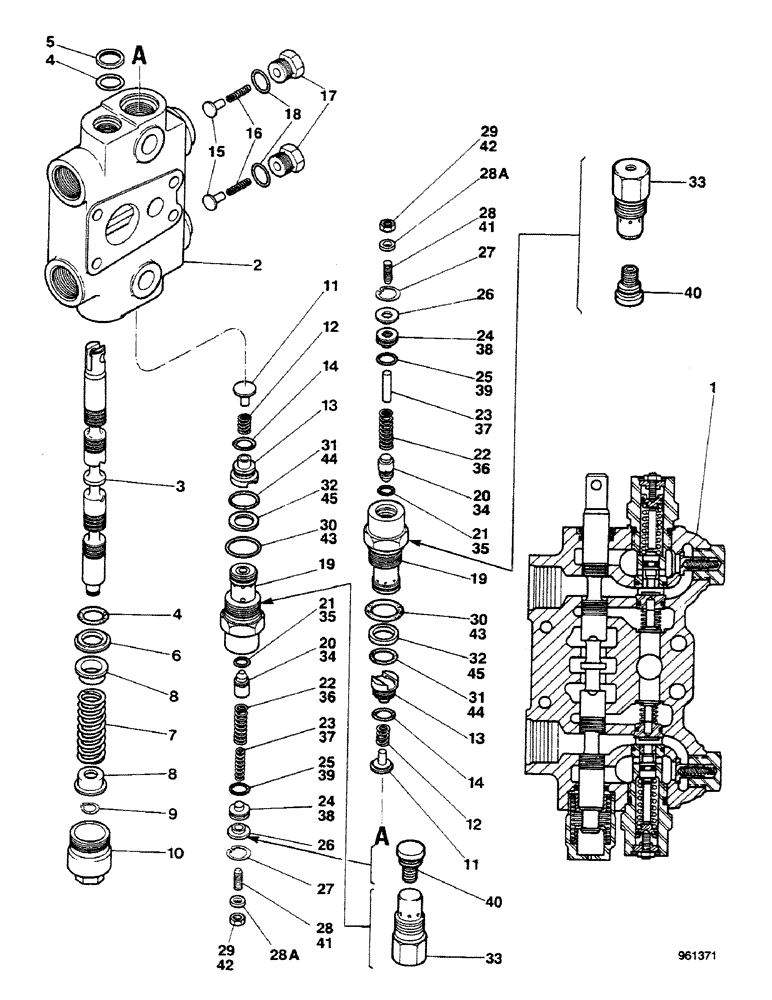

Запчасти Case 580G (298) - BACKHOE CONTROL VALVE - SWING SECTION (08) - HYDRAULICS

1

G103402

BLOCK

SECTION ASSY, G109521, Includes: Ref. 2 - 45

1шт.

G109521

VALVE

SECTION ASSY, Includes: Ref. 2 - 45

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

G108461

O-RING

1шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

1шт.

6

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

7

G34463

SPRING

centering

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

9

G33077

SNAP RING,#47, Ext

#47, Ext

1шт.

10

P0033080G

SCREW

1шт.

11

G33081

VALVE POPPET

2шт.

12

G33573

SPRING

2шт.

13

G33084

PLUG

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

2шт.

15

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

2шт.

16

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

2шт.

17

G34937

PLUG

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

G34657

VALVE

secondary relief, For service order G109448, Includes: Ref. 19 - 32

2шт.

19

NSS

NOT SOLD SEPARAT

BODY

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET

1шт.

21

G102844

O-RING

1шт.

22

G33090

SPRING

1шт.

23

G34455

PIN

1шт.

24

G33091

PISTON

1шт.

25

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

G33092

RETAINER

1шт.

27

G46150

SNAP RING,0.75", Int, #75

0.75", Int, #75

1шт.

28

G102782

SET SCREW,1/4" - 20 x 1"

1шт.

28a

G102781

WASHER

If used

1шт.

29

25-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

G100959

O-RING,0.744" ID x 0.879" OD

1шт.

32

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup

1шт.

G109444

VALVE

VALVE ASSY secondary relief, For service order G109448, Includes: Ref. 33 - 45

2шт.

33

NSS

NOT SOLD SEPARAT

BODY

1шт.

34

NSS

NOT SOLD SEPARAT

POPPET

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING

1шт.

37

NSS

NOT SOLD SEPARAT

PIN

1шт.

38

NSS

NOT SOLD SEPARAT

PISTON

1шт.

39

NSS

NOT SOLD SEPARAT

O-RING

1шт.

40

NSS

NOT SOLD SEPARAT

SEAT

1шт.

41

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

1шт.

42

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

44

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

45

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup

1шт.
