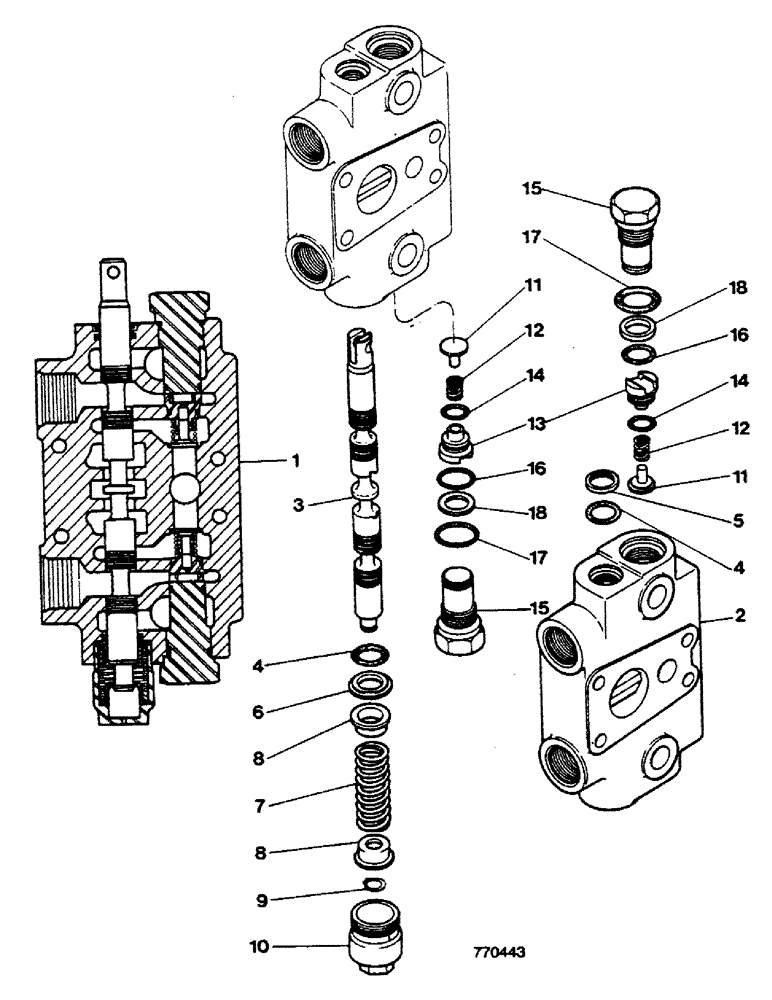

Запчасти Case 580G (296) - BACKHOE CONTROL VALVE - DIPPER EXTENSION AND STABILIZER (08) - HYDRAULICS

1

G103404

SEGMENT

SECTION ASSY, Includes: Ref. 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

G108461

O-RING

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

1шт.

6

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

7

G34463

SPRING

centering

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

9

G33077

SNAP RING,#47, Ext

#47, Ext

1шт.

10

P0033080G

SCREW

1шт.

11

G33081

VALVE POPPET

2шт.

12

G33573

SPRING

2шт.

13

G33084

PLUG

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

2шт.

15

G33122

PLUG,ORB

ASSY, Includes: Ref. 16 - 18

2шт.

16

G100959

O-RING,0.744" ID x 0.879" OD

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup

1шт.

1

G110236

VALVE

SECTION ASSY ext. and stab., Includes: Ref. 2 - 18

2/3шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

G108461

O-RING

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

1шт.

6

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

7

G110135

SPRING

centering

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

9

G33077

SNAP RING,#47, Ext

#47, Ext

1шт.

10

G33080

CAP

1шт.

11

G33081

VALVE POPPET

2шт.

12

G33573

SPRING

2шт.

13

G33084

PLUG

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

2шт.

15

G33122

PLUG,ORB

ASSY, Includes: Ref. 16 - 18

2шт.

16

G100959

O-RING,0.744" ID x 0.879" OD

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup

1шт.
