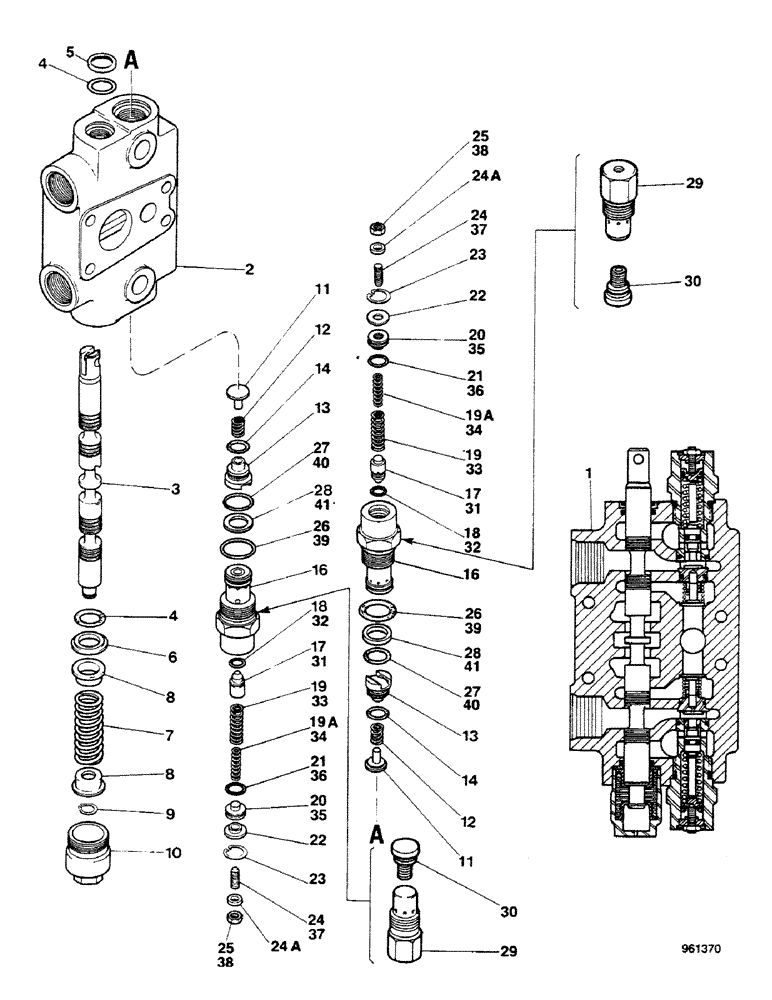

Запчасти Case 580G (294) - BACKHOE CONTROL VALVE DIPPER AND BUCKET SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
G103400
SEGMENT
SECTION ASSY, G109512, Includes: Ref. 2 - 41
2шт.
1
G109512
VALVE, CONTROL
SECTION ASSY, Includes: Ref. 2 - 41
2шт.
2
NSS
NOT SOLD SEPARAT
BODY
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
4
G108461
O-RING
2шт.
5
A32309
SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk
1шт.
6
G102711
RETAINER COLLAR,19.3 mm ID x 32.97 mm OD
1шт.
7
G34463
SPRING
centering
1шт.
8
G33075
RETAINER,12.2mm ID, 27.9mm OD
2шт.
9
G33077
SNAP RING,#47, Ext
#47, Ext
1шт.
10
G33080
CAP
1шт.
11
G33081
VALVE POPPET
2шт.
12
G33573
SPRING
2шт.
13
G33084
PLUG
2шт.
14
G33686
O-RING,0.07" Thk x 0.61" ID
2шт.
G34672
VALVE
ASSY secondary relief, For service order G109449, Includes: Ref. 16 - 28
2шт.
16
NSS
NOT SOLD SEPARAT
BODY
1шт.
17
NSS
NOT SOLD SEPARAT
POPPET
1шт.
18
G102844
O-RING
O-RING
1шт.
19
G33090
SPRING
outer
1шт.
19a
G34659
SPRING
inner
1шт.
20
G33091
PISTON
1шт.
21
G102845
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
22
G33092
RETAINER
1шт.
23
G46150
SNAP RING,0.75", Int, #75
0.75", Int, #75
1шт.
24
G102782
SET SCREW,1/4" - 20 x 1"
1шт.
24a
G102781
WASHER
If used
1шт.
25
25-144
JAM NUT,Jam, 1/4"-20, G5
1шт.
26
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
27
G100959
O-RING,0.744" ID x 0.879" OD
1шт.
28
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
backup
1шт.
G109445
VALVE ASSY secondary relief, For service order G109449, Includes: Ref. 29 - 41
2шт.
29
NSS
NOT SOLD SEPARAT
BODY
1шт.
30
NSS
NOT SOLD SEPARAT
SEAT
1шт.
31
NSS
NOT SOLD SEPARAT
POPPET
1шт.
32
NSS
NOT SOLD SEPARAT
O-RING
1шт.
33
NSS
NOT SOLD SEPARAT
outer
1шт.
34
NSS
NOT SOLD SEPARAT
inner
1шт.
35
NSS
NOT SOLD SEPARAT
PISTON
1шт.
36
NSS
NOT SOLD SEPARAT
O-RING
1шт.
37
178-890
SET SCREW,Hex Soc, 5/16"-24 x 1"
1шт.
38
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
39
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
40
G107675
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
41
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
backup
1шт.
Выбрано товаров: 45
