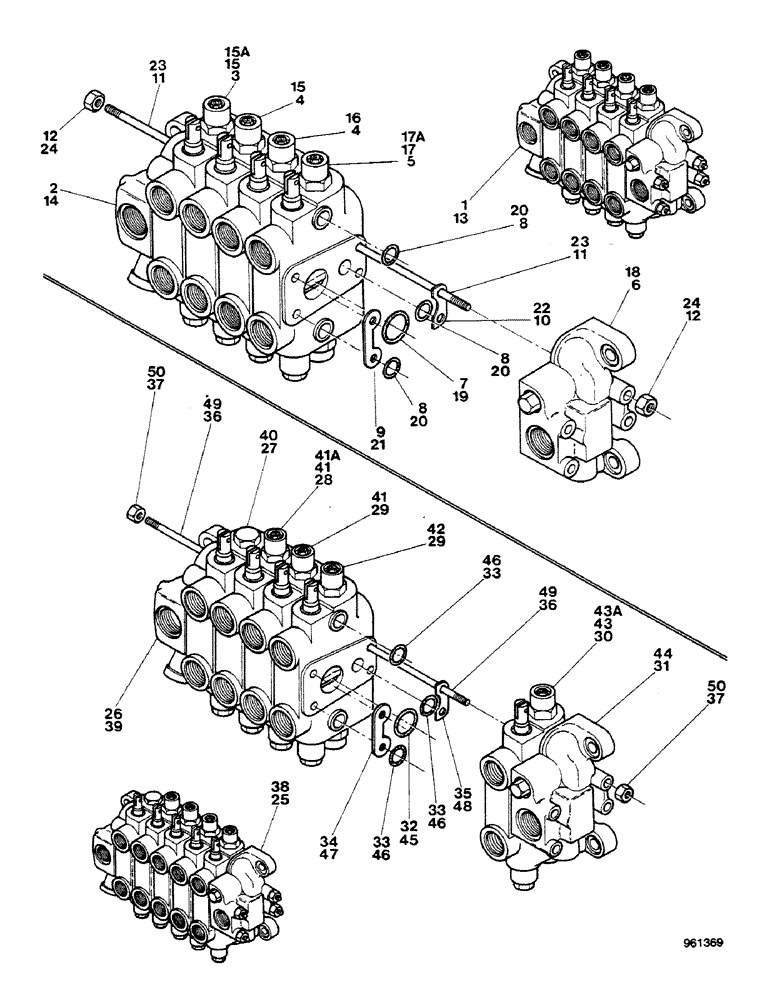

Запчасти Case 580G (291E) - BACKHOE - CONTROL VALVES 4 SPOOLS - FOR AXI. (08) - HYDRAULICS

1

G110249

VALVE

VALVE control, 5L (without extendable dipper), Includes: Ref. 2 - 12

1шт.

For identification see name plate on control valve

1шт.

2

G33108

MANIFOLD

OUTLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

3

G110234

VALVE, CONTROL

BOOM section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

4

G110237

VALVE

DIPPER AND BUCKET section

2шт.

See figure 292, 296, 301C, 304 and 306

1шт.

5

G109521

VALVE

SWING section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

6

G33102

MANIFOLD

INLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

5шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

15шт.

9

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

5шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

5шт.

11

G34942

TIE-ROD

4шт.

12

25-106

NUT,3/8"-16, G5

8шт.

13

G110245

VALVE, CONTROL

VALVE control, 2L (without extendable dipper), Includes: Ref. 14 - 24

1шт.

For identification see name plate on control valve

1шт.

13

E46372

DISTRIBUTOR

SPARE PART VALVE control, 2L (without extendable dipper), Includes: Ref. 14 - 24

1шт.

For identification see name plate on control valve

1шт.

14

G33108

MANIFOLD

OUTLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

15

G110237

VALVE

DIPPER AND BUCKET section

2шт.

See figure 292, 296, 301C, 304 and 306

1шт.

15

G110237

VALVE

DIPPER AND BUCKET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

15a

G110234

VALVE, CONTROL

BOOM section, For E46372

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

16

G110235

VALVE, CONTROL

SWING section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

17

G110234

VALVE, CONTROL

BOOM section, For G110245

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

17a

G110237

VALVE

DIPPER section, For E46372

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

18

G33102

MANIFOLD

INLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

19

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

5шт.

20

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

15шт.

21

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

5шт.

22

G33965

SHIM,22.86mm OD x 0.06mm Thk

5шт.

23

G34942

TIE-ROD

4шт.

24

25-106

NUT,3/8"-16, G5

8шт.

25

G110247

DISTRIBUTOR

VALVE control, 5L with extendable dipper), Includes: Ref. 26 - 37

1шт.

For identification see name plate on control valve

1шт.

26

G33108

MANIFOLD

OUTLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

27

G110236

VALVE

DIPPER extendable section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

28

G110234

VALVE, CONTROL

BOOM section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

29

G110237

VALVE

DIPPER AND BUCKET section

2шт.

See figure 292, 296, 301C, 304 and 306

1шт.

30

G109521

VALVE

SWING section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

31

G33102

MANIFOLD

INLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

32

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

6шт.

See figure 292, 296, 301C, 304 and 306

1шт.

33

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

18шт.

34

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

6шт.

35

G33965

SHIM,22.86mm OD x 0.06mm Thk

6шт.

36

G34675

TIE-ROD

STUD

4шт.

37

25-106

NUT,3/8"-16, G5

8шт.

38

G110243

VALVE

VALVE control, 2L (with extendable dipper), Includes: Ref. 39 - 50

1шт.

For identification see name plate on control valve

1шт.

38

E46371

VALVE

VALVE control, 2L (with extendable dipper), Includes: Ref. 39 - 50

1шт.

For identification see name plate on control valve

1шт.

39

G33108

MANIFOLD

OUTLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

40

G110236

VALVE

DIPPER extendable section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

41

G110237

VALVE

DIPPER AND BUCKET section

2шт.

See figure 292, 296, 301C, 304 and 306

1шт.

41

G110237

VALVE

DIPPER AND BUCKET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

41a

G110234

VALVE, CONTROL

BOOM section, For E46371

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

42

G110235

VALVE, CONTROL

SWING section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

43

G110234

VALVE, CONTROL

BOOM section, For G110243

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

43a

G110237

VALVE

DIPPER section, For E46371

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

44

G33102

MANIFOLD

INLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

45

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

6шт.

46

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

18шт.

47

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

6шт.

48

G33965

SHIM,22.86mm OD x 0.06mm Thk

6шт.

49

G34675

TIE-ROD

STUD

4шт.

50

25-106

NUT,3/8"-16, G5

8шт.
