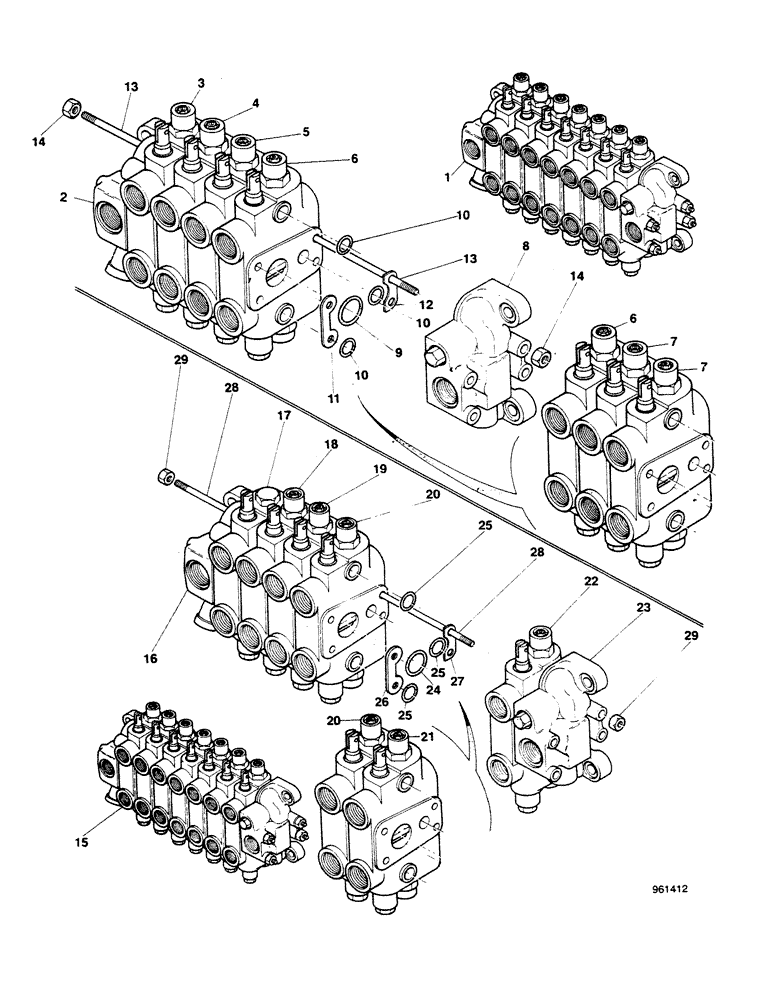

Запчасти Case 580G (291C) - BACKHOE - CONTROL VALVES 7 SPOOLS - FOR DEP. STARTING FROM NO. 3.948.950 (08) - HYDRAULICS

1

G110231

BLOCK

VALVE control, 2L (with extendable dipper), Includes: Ref. 2 - 14

1шт.

For identification see name plate on control valve

1шт.

2

G33108

MANIFOLD

OUTLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

3

G110236

VALVE

DIPPER extendable section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

4

G110234

VALVE, CONTROL

BOOM section, For G110231

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

5

G110235

VALVE, CONTROL

SWING section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

6

G110236

VALVE

STABILIZER section

2шт.

See figure 292, 296, 301C, 304 and 306

1шт.

7

G110237

VALVE

DIPPER AND BUCKET section, For G110231

2шт.

See figure 292, 296, 301C, 304 and 306

1шт.

8

G33102

MANIFOLD

INLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

9

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

8шт.

10

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

24шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

8шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

8шт.

13

G34466

TIE-ROD

STUD

4шт.

14

25-106

NUT,3/8"-16, G5

8шт.

15

E46216

LOCK VALVE

VALVE control, 2L with extendable dipper, Includes: Ref. 16 - 29

1шт.

For identification see name plate on control valve

1шт.

16

G33108

MANIFOLD

OUTLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

17

G110236

VALVE

DIPPER extendable section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

18

G110237

VALVE

DIPPER section, For E46216

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

19

G110235

VALVE, CONTROL

SWING section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

20

G110236

VALVE

STABILIZER section

2шт.

See figure 292, 296, 301C, 304 and 306

1шт.

21

G110237

VALVE

BUCKET section, For E46216

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

22

G110234

VALVE, CONTROL

BOOM section, For E46216

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

23

G33102

MANIFOLD

INLET section

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

24

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

8шт.

See figure 292, 296, 301C, 304 and 306

1шт.

25

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

24шт.

See figure 292, 296, 301C, 304 and 306

1шт.

26

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

8шт.

27

G33965

SHIM,22.86mm OD x 0.06mm Thk

8шт.

28

G34466

TIE-ROD

STUD

4шт.

29

25-106

NUT,3/8"-16, G5

8шт.
