(580G) - CASE CONSTRUCTION KING LOADER BACKHOE (1/78-12/88)
/
(08) - HYDRAULICS
/

(291A) - BACKHOE - CONTROL VALVES 6 SPOOLS - FOR DEP. STARTING FROM NO. 3.948.950

Запчасти Case 580G (291A) - BACKHOE - CONTROL VALVES 6 SPOOLS - FOR DEP. STARTING FROM NO. 3.948.950 (08) - HYDRAULICS

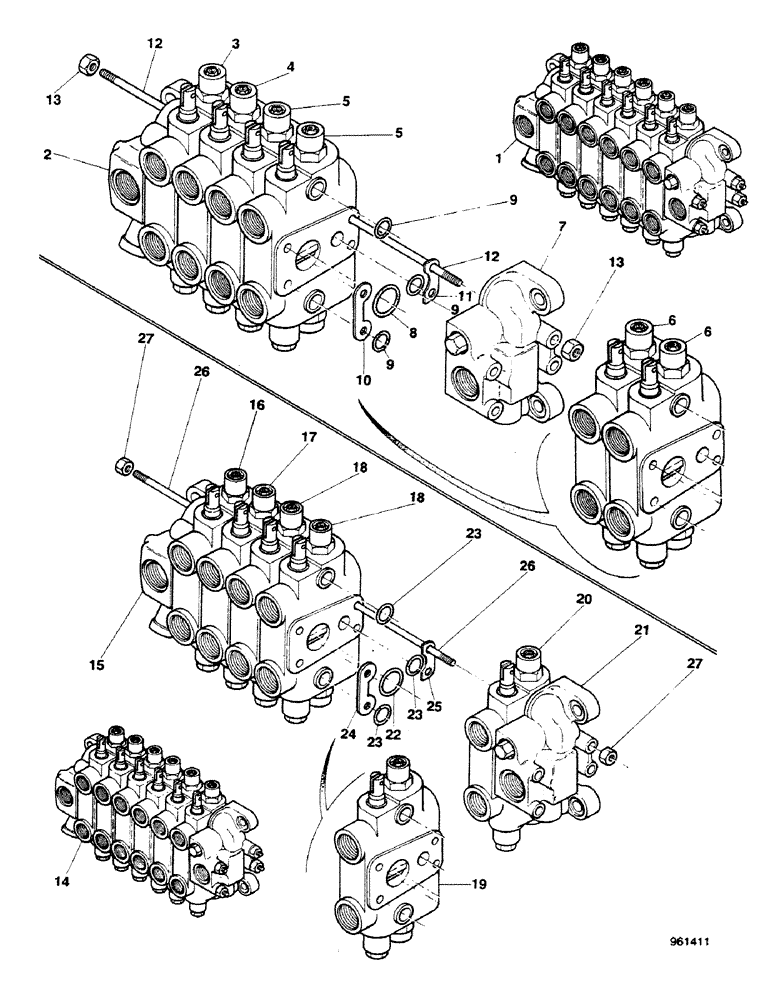

Схема запчастей Case 580G - (291A) - BACKHOE - CONTROL VALVES 6 SPOOLS - FOR DEP. STARTING FROM NO. 3.948.950 (08) - HYDRAULICS
13
26
13
26
9
16
7
5
22
9
2
19
25
23
18
1
18
15
11
6
5
21
3
24
23
12
27
12
4
23
17
20
10
27
6
9
14
8

№

Артикул

Название

Примечание

Количество

1

G110230

DISTRIBUTOR

VALVE control, 2L (without extendable dipper), Includes: Ref. 2 - 13

1шт.

For identification see name plate on control valve

1шт.

2

G33108

MANIFOLD

OUTLET section, See figure 292, 296, 301C, 304 and 306

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

3

G110234

VALVE, CONTROL

BOOM section, For G110230, See figure 292, 296, 301C, 304 and 306

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

4

G110235

VALVE, CONTROL

SWING section, See figure 292, 296, 301C, 304 and 306

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

5

G110236

VALVE

STABILIZER section, See figure 292, 296, 301C, 304 and 306

2шт.

See figure 292, 296, 301C, 304 and 306

1шт.

6

G110237

VALVE

DIPPER AND BUCKET section, For G110230, See figure 292, 296, 301C, 304 and 306

2шт.

See figure 292, 296, 301C, 304 and 306

1шт.

7

G33102

MANIFOLD

INLET section, See figure 292, 296, 301C, 304 and 306

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

8

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

7шт.

9

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

21шт.

10

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

7шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

7шт.

12

G33124

BOLT

STUD

4шт.

13

25-106

NUT,3/8"-16, G5

8шт.

14

E46215

DASHPOT

VALVE control, 2L (without extendable dipper), Includes: Ref. 15 - 27

2шт.

For identification see name plate on control valve

1шт.

15

G33108

MANIFOLD

OUTLET section, See figure 292, 296, 301C, 304 and 306

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

16

G110237

VALVE

DIPPER section, For E46215, See figure 292, 296, 301C, 304 and 306

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

17

G110235

VALVE, CONTROL

SWING section, See figure 292, 296, 301C, 304 and 306

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

18

G110236

VALVE

STABILIZER section, See figure 292, 296, 301C, 304 and 306

2шт.

See figure 292, 296, 301C, 304 and 306

1шт.

19

G110237

VALVE

BUCKET section, For E46215, See figure 292, 296, 301C, 304 and 306

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

20

G110234

VALVE, CONTROL

BOOM section, For E46215, See figure 292, 296, 301C, 304 and 306

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

21

G33102

MANIFOLD

INLET section, See figure 292, 296, 301C, 304 and 306

1шт.

See figure 292, 296, 301C, 304 and 306

1шт.

22

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

7шт.

23

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

21шт.

24

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

7шт.

25

G33965

SHIM,22.86mm OD x 0.06mm Thk

7шт.

26

G33124

BOLT

STUD

4шт.

27

25-106

NUT,3/8"-16, G5

8шт.

Выбрано товаров: 42
