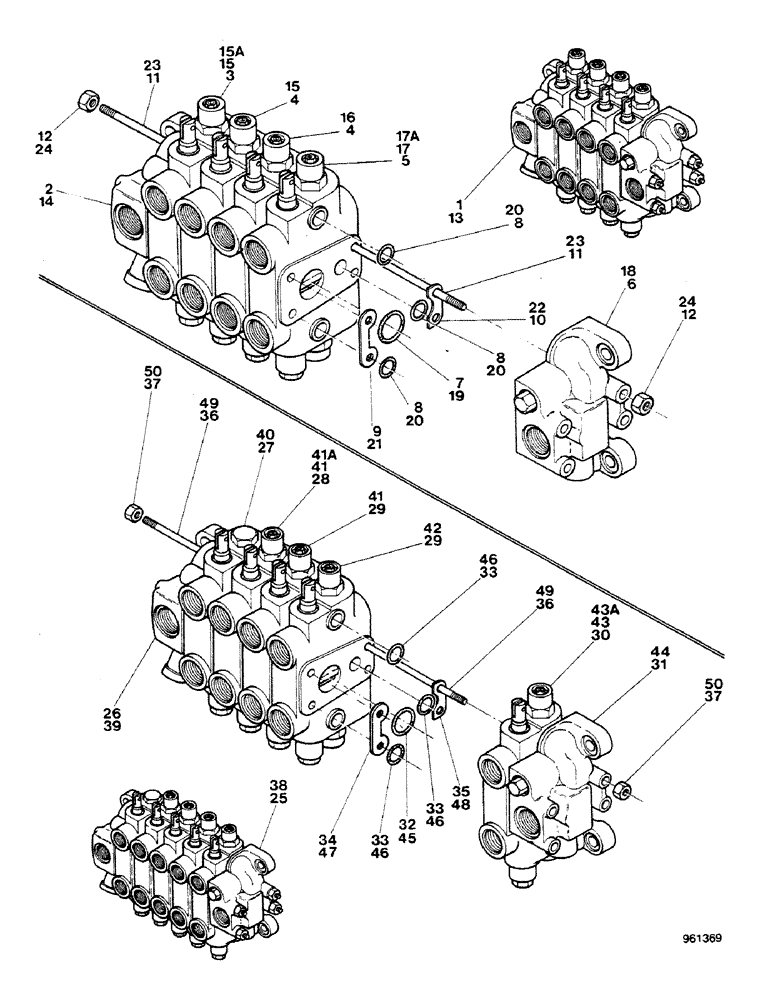

Запчасти Case 580G (288) - BACKHOE - CONTROL VALVES (08) - HYDRAULICS

1

G109532

LOCK VALVE

control, 5L (without extendable dipper), Includes: Ref. 2 - 12, For Dep., G110249 For Axi. figure 291E, Serial Range: -3.948.949

1шт.

For identification see name plate on control valve

1шт.

2

G33108

MANIFOLD

OUTLET section

1шт.

See Figure 292, 300 and 301A

1шт.

3

G109518

VALVE

BOOM section

1шт.

See Figure 292, 300 and 301A

1шт.

4

G109512

VALVE, CONTROL

DIPPER AND BUCKET section

2шт.

See Figure 292, 300 and 301A

1шт.

5

G109521

VALVE

SWING section

1шт.

See Figure 292, 300 and 301A

1шт.

6

G33102

MANIFOLD

INLET section

1шт.

See Figure 292, 300 and 301A

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

5шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

15шт.

9

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

5шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

5шт.

11

G34942

TIE-ROD

4шт.

12

25-106

NUT,3/8"-16, G5

8шт.

13

G109531

LOCK VALVE

control, 2L (without extendable dipper), Includes: Ref. 14 - 24, For Dep. See figure 291A, G110245 For Axi. See figure 291E, Serial Range: -3.948.949

1шт.

For identification see name plate on control valve

1шт.

13

E43554

VALVE

SPARE PART control, 2L (without extendable dipper), Includes: Ref. 14 - 24, For Dep. See figure 291A, E46372 For Axi. See figure 291E, Serial Range: -3.948.949

1шт.

For identification see name plate on control valve

1шт.

14

G33108

MANIFOLD

OUTLET section

1шт.

See Figure 292, 300 and 301A

1шт.

15

G109512

VALVE, CONTROL

DIPPER AND BUCKET section

2шт.

See Figure 292, 300 and 301A

1шт.

15

G109512

VALVE, CONTROL

DIPPER AND BUCKET section

1шт.

See Figure 292, 300 and 301A

1шт.

15a

G109518

VALVE

BOOM section, For E43554

1шт.

See Figure 292, 300 and 301A

1шт.

16

G109521

VALVE

SWING section

1шт.

See Figure 292, 300 and 301A

1шт.

17

G109518

VALVE

BOOM section, For G109531

1шт.

See Figure 292, 300 and 301A

1шт.

17a

G109512

VALVE, CONTROL

DIPPER section, For E43554

1шт.

See Figure 292, 300 and 301A

1шт.

18

G33102

MANIFOLD

INLET section

1шт.

See Figure 292, 300 and 301A

1шт.

19

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

5шт.

20

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

15шт.

21

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

5шт.

22

G33965

SHIM,22.86mm OD x 0.06mm Thk

5шт.

23

G34942

TIE-ROD

4шт.

24

25-106

NUT,3/8"-16, G5

8шт.

25

G109576

LOCK VALVE

control, 5L (without extendable dipper), For Dep., G110247 For Axi. See figure 291E, Includes: Ref. 26 - 37, Serial Range: -3.948.949

1шт.

For identification see name plate on control valve

1шт.

26

G33108

MANIFOLD

OUTLET section

1шт.

See Figure 292, 300 and 301A

1шт.

27

G103404

SEGMENT

DIPPER extendable section

1шт.

See Figure 292, 300 and 301A

1шт.

28

G109518

VALVE

BOOM section

1шт.

See Figure 292, 300 and 301A

1шт.

29

G109512

VALVE, CONTROL

DIPPER AND BUCKET section

2шт.

See Figure 292, 300 and 301A

1шт.

30

G109521

VALVE

SWING section

1шт.

See Figure 292, 300 and 301A

1шт.

31

G33102

MANIFOLD

INLET section

1шт.

See Figure 292, 300 and 301A

1шт.

32

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

6шт.

See Figure 292, 300 and 301A

1шт.

33

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

18шт.

34

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

6шт.

35

G33965

SHIM,22.86mm OD x 0.06mm Thk

6шт.

36

G34675

TIE-ROD

STUD

4шт.

37

25-106

NUT,3/8"-16, G5

8шт.

38

G109539

VALVE

control, 2L (with extendable dipper), For Dep. See figure 291C, G110243 For Axi. See figure 291E, Includes: Ref. 39 - 50, Serial Range: -3.948.949

1шт.

For identification see name plate on control valve

1шт.

38

E43553

VALVE

control, 2L (with extendable dipper), For Dep. See figure 291C, G110243 For Axi. See figure 291E, Includes: Ref. 39 - 50, Serial Range: -3.948.949

1шт.

For identification see name plate on control valve

1шт.

39

G33108

MANIFOLD

OUTLET section

1шт.

See Figure 292, 300 and 301A

1шт.

40

G103404

SEGMENT

DIPPER extendable section, For G109539

1шт.

See Figure 292, 300 and 301A

1шт.

41

G109512

VALVE, CONTROL

DIPPER AND BUCKET section

2шт.

See Figure 292, 300 and 301A

1шт.

41

G109512

VALVE, CONTROL

DIPPER AND BUCKET section, For E43553

1шт.

See Figure 292, 300 and 301A

1шт.

41a

G109518

VALVE

BOOM section

1шт.

See Figure 292, 300 and 301A

1шт.

42

G109521

VALVE

SWING section, For E43553

1шт.

See Figure 292, 300 and 301A

1шт.

43

G109518

VALVE

BOOM section, For G109539

1шт.

See Figure 292, 300 and 301A

1шт.

43a

G109512

VALVE, CONTROL

DIPPER section, For E43553

1шт.

See Figure 292, 300 and 301A

1шт.

44

G33102

MANIFOLD

INLET section

1шт.

See Figure 292, 300 and 301A

1шт.

45

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

6шт.

46

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

18шт.

47

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

6шт.

47

G33965

SHIM,22.86mm OD x 0.06mm Thk

6шт.

49

G34675

TIE-ROD

STUD

4шт.

50

25-106

NUT,3/8"-16, G5

8шт.
