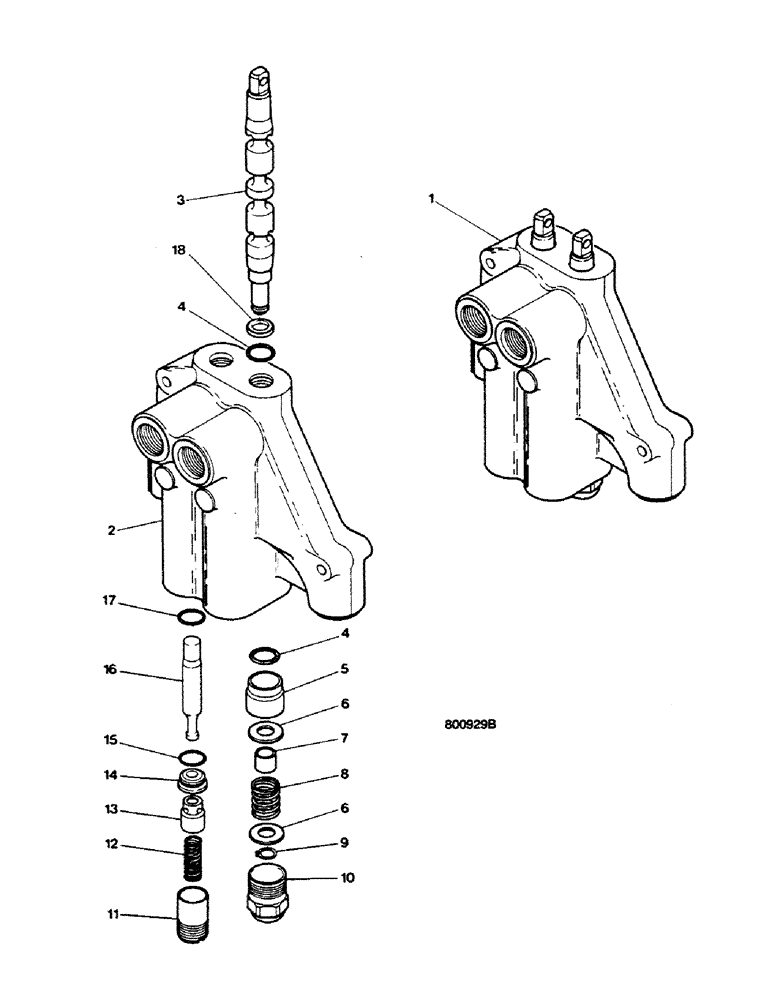

Запчасти Case 580G (286) - BACKHOE - STABILIZER CONTROL VALVE (08) - HYDRAULICS

1

D123146

VALVE

ASSY, D124856, Includes: P/N's N8451, N8452

1шт.

1

D124856

VALVE

ASSY

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

2шт.

4

N8453

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

4шт.

5

N8450

BUSHING

2шт.

6

N6470

WASHER

4шт.

7

N8436

WASHER

2шт.

8

D56445

SPRING

2шт.

9

A27020

RING

snap

2шт.

10

F35196

CAP

2шт.

11

D59653

PLUG

2шт.

12

D56444

SPRING

2шт.

13

D59654

VALVE

poppet

2шт.

N8451

SEAT

PLUNGER ASSY

2шт.

Part of Valve Assembly, P/N D123146

1шт.

14

NSS

NOT SOLD SEPARAT

PLUNGER seat

1шт.

15

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

16

N8452

PLUNGER

2шт.

Part of Valve Assembly, P/N D123146

1шт.

17

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

2шт.

18

N8005

WIPER SEAL

wiper (If used)

2шт.
