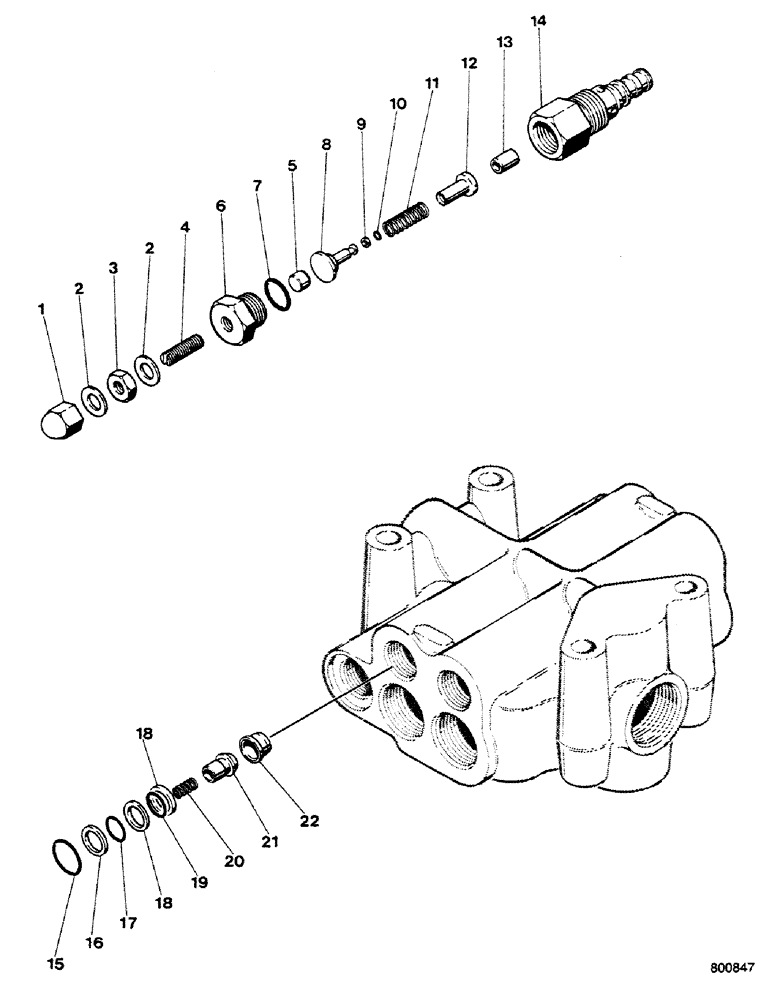

Запчасти Case 580G (282) - LOADER CONTROL VALVE - SECONDARY RELIEF VALVE (08) - HYDRAULICS

1

129-514

CROWN NUT,Low, 5/16" - 24

accorn

1шт.

2

D26270

WASHER, SEALING

SEAL WASHER

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

176-297

SET SCREW,5/16"-24 x 1", Slotted

1шт.

5

N6042

PLUG

stop

1шт.

6

D66437

CAP

1шт.

8

N7764

SPRING

guide, N7764 + N7765

1шт.

9

D40357

RING

backup

1шт.

10

D40356

O-RING

1шт.

11

D37148

SPRING

1шт.

12

N7765

PLUNGER

N7765 + N7764

1шт.

13

D37075

SEAT

poppet

1шт.

14

D37072

CAP

body

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

D37071

RING

backup

1шт.

17

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

18

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

backup

2шт.

19

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

20

D37067

SPRING

1шт.

21

D37068

VALVE POPPET

1шт.

22

D40358

SEAT

poppet

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
