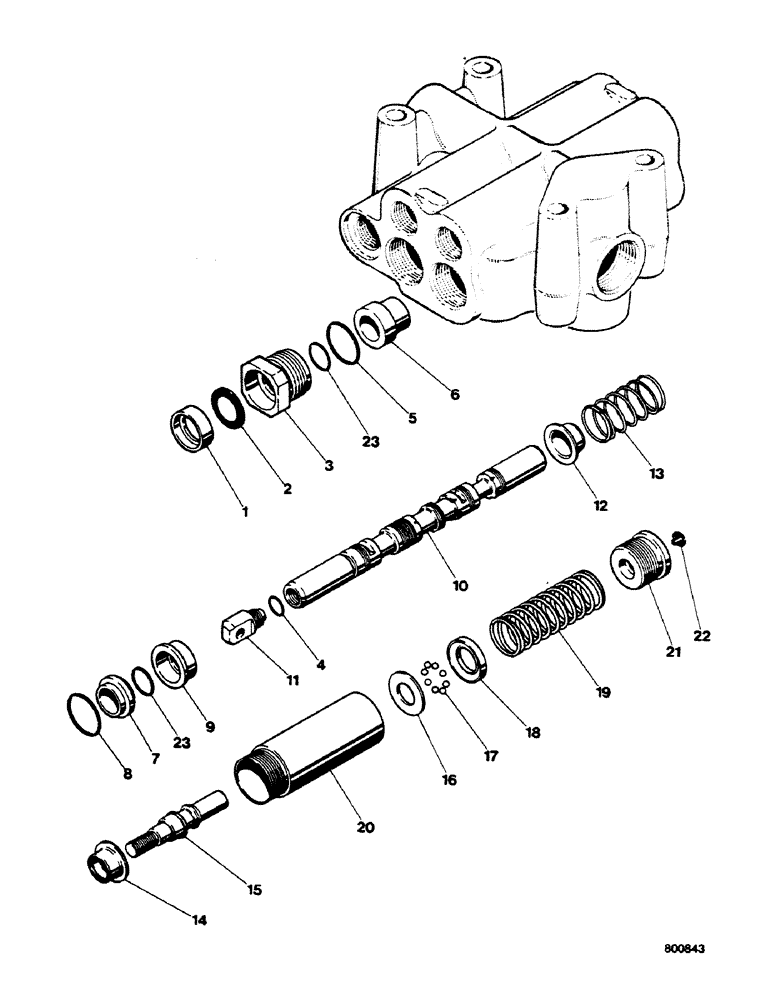

Запчасти Case 580G (274) - LOADER CONTROL VALVE - LIFT SPOOL (08) - HYDRAULICS

N6592

VALVE

SPOOL ASSY, Includes: Ref. 1 - 23

1шт.

1

D37153

RETAINER

1шт.

2

A14527

SCRAPER

1шт.

3

D37152

RETAINER

GLAND

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

6

D37076

SLEEVE

1шт.

7

D33857

RETAINER

1шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

9

D33856

RETAINER

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

11

E88928

EYE

1шт.

12

A14533

BRONZE BUSHING

SPRING seat

1шт.

13

N6013

SPRING

centering

1шт.

14

A16881

SEAT

SPRING

1шт.

15

N6014

STUD

1шт.

16

L30455

WASHER

1шт.

17

211-8

BALL,9/32" Dia

8шт.

18

N6015

CAM

1шт.

19

L30626

SPRING

1шт.

20

L30454

CAP

housing

1шт.

21

N6643

PLUG

Includes: Ref. 22

1шт.

22

N6644

PLUG

1шт.

23

G108461

O-RING

2шт.
