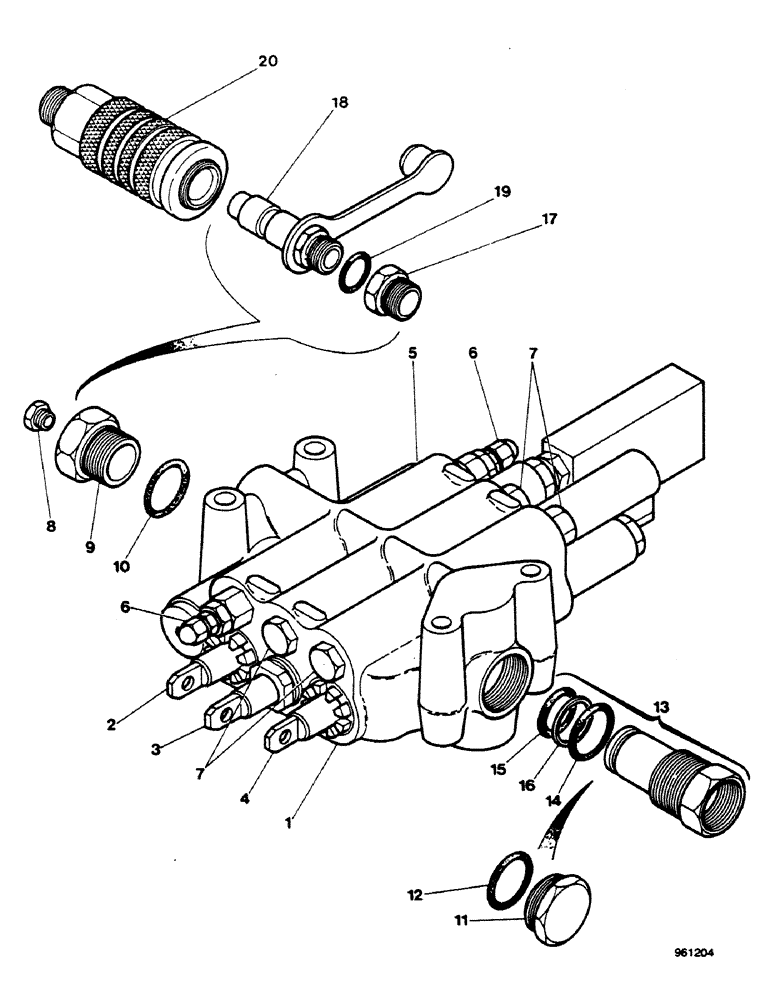

Запчасти Case 580G (272) - LOADER CONTROL VALVE - THREE SPOOL (08) - HYDRAULICS

1

D123470

VALVE

control, Includes: Ref. 2 - 12

1шт.

1

E43206

VALVE

control (For identification See Figure 532), Includes: Ref. 2 - 12

1шт.

E43206 + E45928 + E33963

1шт.

2

N8524

SPOOL

bucket, See Figure 276

1шт.

3

N6592

VALVE

SPOOL lift, See Figure 274

1шт.

4

D37050

SPOOL

clam, See Figure 278

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE main relief, See Figure 280

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE secondary relief, See Figure 282

2шт.

7

NSS

NOT SOLD SEPARAT

VALVE load check, See Figure 284

1шт.

8

221-662

PLUG,Hex Hd, 1/4"-18

1шт.

9

D38825

ADAPTER

Includes: Ref. 10

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Incl. Ref 12, if used

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

If used

1шт.

13

D89496

FITTING

SLEEVE ASSY, Includes: Ref. 14 - 16

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

1шт.

16

L31332

BACK-UP RING

backup

1шт.

17

E41773

FITTING

SPARE PART REDUCER, If used

1шт.

18

E41774

SEAL

SPARE PART COUPLING, Includes: Ref. 19, If used

1шт.

19

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

If used

1шт.

20

E44637

COUPLING, BREAK AWAY

SPARE PART If used

1шт.
