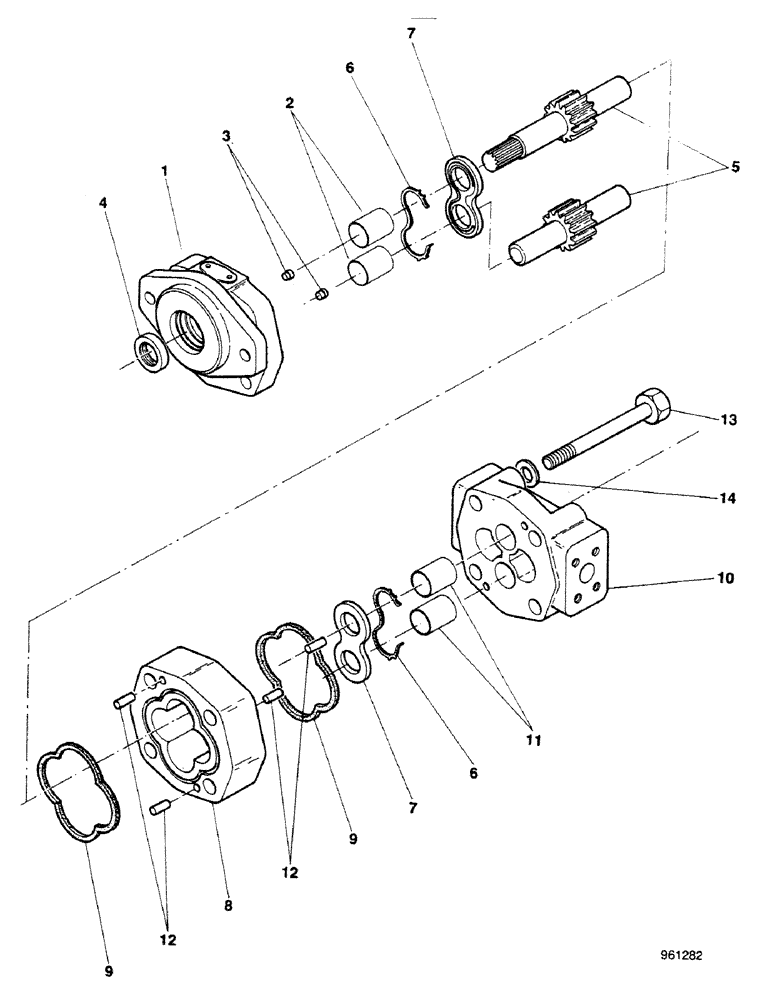

Запчасти Case 580G (269C) - HYDRAULIC PUMP - COMMERCIAL HYDRAULICS - (REF. P330A-296-SPL-AB16-65) (08) - HYDRAULICS

E45706

PUMP

Includes: Ref. 1 - 3

1шт.

For identification see name plate on pump. Check mark and model number of pump before ordering parts. See other pump option on figure 268 - 269A.

1шт.

E46135

BODY

ASSY, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

E46140

BUSHING

2шт.

Part of repair kit, P/N E46133

1шт.

3

L32320

PLUG

2шт.

4

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

1шт.

Part of repair kit, P/N E46133

1шт.

Part of seal kit, P/N E46137

1шт.

5

E46136

GEAR-SET

Includes: Ref. 6 - 14

1шт.

Part of repair kit, P/N E46133

1шт.

6

N13583

SEAL

2шт.

Part of repair kit, P/N E46133

1шт.

Part of seal kit, P/N E46137

1шт.

7

N13582

THRUST PLATE

2шт.

Part of repair kit, P/N E46133

1шт.

Part of seal kit, P/N E46137

1шт.

8

E46132

HOUSING

1шт.

9

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

2шт.

Part of repair kit, P/N E46133

1шт.

Part of seal kit, P/N E46137

1шт.

E46134

HOUSING

ASSY, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

11

E46140

BUSHING

2шт.

Part of repair kit, P/N E46133

1шт.

12

W16323

DOWEL

PIN

4шт.

13

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

4шт.

14

D31957

WASHER

flat

4шт.

E46137

KIT

seal, Includes: Ref. 4, 6, 7 and 9

1шт.

E46133

KIT

repair, Includes: Ref. 2, 4 - 7, 9 and 11

1шт.
