(269A) - HYDRAULIC PUMP - DOWTY (REF. 2P 3163) UP TO NO. 3.939.084

Запчасти Case 580G (269A) - HYDRAULIC PUMP - DOWTY (REF. 2P 3163) UP TO NO. 3.939.084 (08) - HYDRAULICS

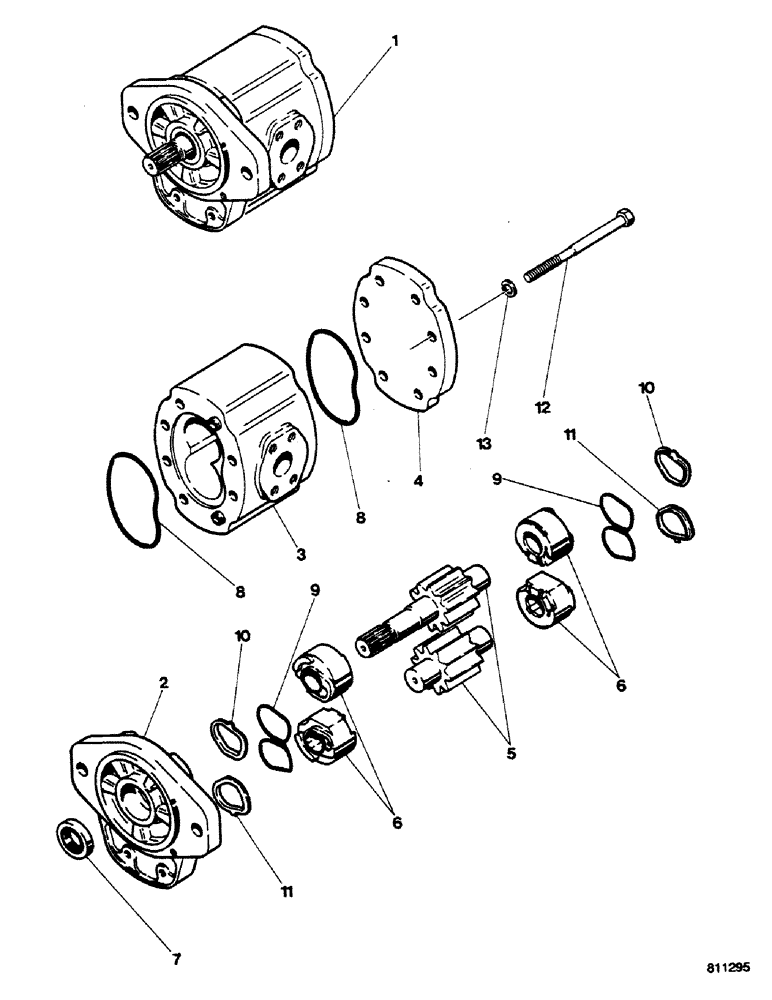

Схема запчастей Case 580G - (269A) - HYDRAULIC PUMP - DOWTY (REF. 2P 3163) UP TO NO. 3.939.084 (08) - HYDRAULICS
9
8
6
4
11
12
9
3
10
7
8
1
10
2
13
11
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D121815

PUMP

Includes: Ref. 2 - 13

1шт.

For identification see name plate on pump. Check mark and model number of pump before ordering parts. See other pump option on figure 268 - 269C.

1шт.

E45706 + E45783 + E45785 + E45793

1шт.

2

NSS

NOT SOLD SEPARAT

COVER

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

4

NSS

NOT SOLD SEPARAT

COVER

1шт.

5

NSS

NOT SOLD SEPARAT

SET gear

1шт.

6

N7689

BUSHING

SPARE PART SET

2шт.

N6666

GASKET KIT

Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL

1шт.

8

S6098

O-RING,3.109" ID x 3.387" OD x 0.139"

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL

2шт.

10

NSS

NOT SOLD SEPARAT

RING

2шт.

11

NSS

NOT SOLD SEPARAT

RING

2шт.

12

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

8шт.

13

92-6

LOCK WASHER,3/8"

8шт.
