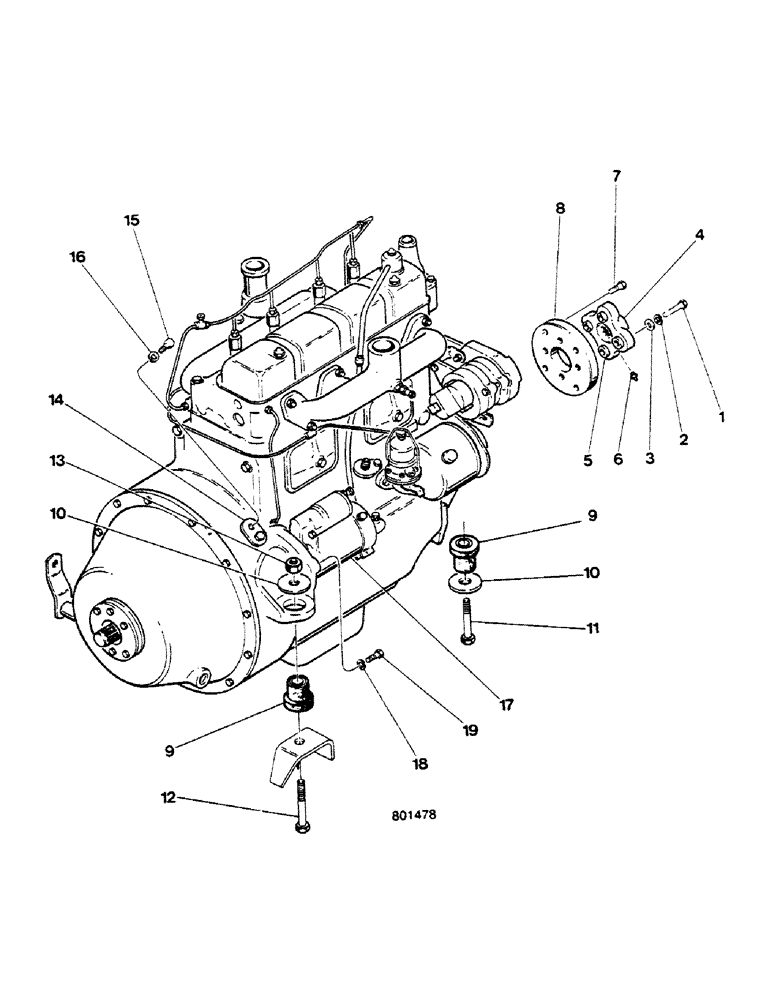

Запчасти Case 580G (026) - ENGINE - MOUNTING AND PUMP COUPLING (02) - ENGINE

1

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

2

92-7

LOCK WASHER,7/16"

4шт.

3

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

4шт.

4

D90883

SPLINED COUPLING

Includes: Ref. 5 and 6

1шт.

5

A45216

BUSHING

4шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

7

K606552

SCREW

4шт.

8

D75438

SPACER

1шт.

9

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

3шт.

10

CASD35009

WASHER,16.67mm ID x 63.5mm OD

R43666

3шт.

10

R43666

SPACER

3шт.

11

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

12

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

13

25-1010

NUT,5/8"-11, G5

2шт.

14

A29068

COVER

2шт.

15

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

16

92-4

LOCK WASHER,1/4"

2шт.

17

E45864

STARTER MOTOR

(Lucas 2M113)

1шт.

Part No. K262819 is the same as 2M113

1шт.

17

K308650

STARTING MOTOR

(Lucas M127/2.8)

1шт.

18

92-6

LOCK WASHER,3/8"

3шт.

19

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.
