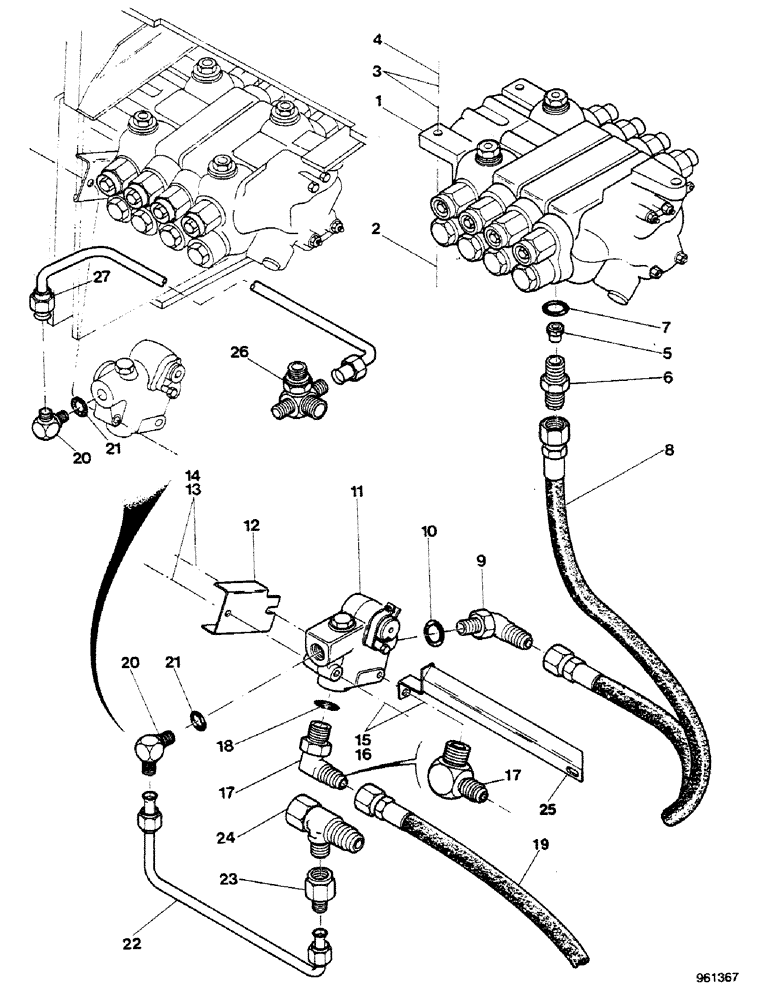

Запчасти Case 580G (266) - SIDESHIFT BACKHOE - BOOM LOCK HYDRAULIC CIRCUIT UP TO NO. 3.948.949 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat

6шт.

4

131-654

LOCK NUT,1/2"-13, GB

3шт.

5

D93207

FITTING

restrictor

1шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

D93849

HOSE

SPARE PART

1шт.

9

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 10

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

REF

INSTRUCTION

VALVE, See Figure 308

1шт.

12

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

13

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

14

195-25

WASHER,3/8"

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

2шт.

17

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

, Serial Range: -3.947.279

1шт.

17

E45624

ELBOW, Start Serial: 3.947.280

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

REF

INSTRUCTION

HOSE, See Figure 250 Ref. 12

1шт.

20

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

elbow

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

D93850

TUBE

, Serial Range: -3.915.084

1шт.

23

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

, Serial Range: -3.915.084

1шт.

24

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

, Serial Range: -3.915.084

1шт.

25

D121299

SUPPORT

1шт.

26

D122376

FITTING

SPARE PART elbow, Start Serial: 3.915.085

1шт.

27

D122353

TUBE

, Start Serial: 3.915.085

1шт.

27

D122348

PIPE

SPARE PART (For extendahoe), Start Serial: 3.915.085

1шт.
