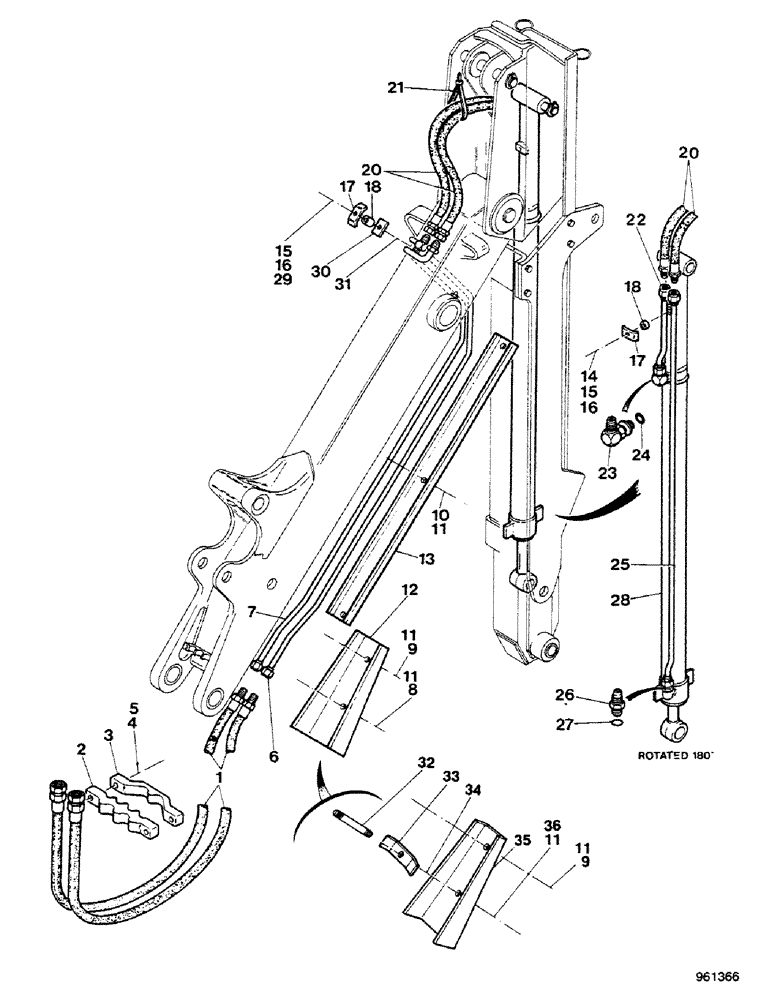

Запчасти Case 580G (264) - SIDESHIFT BACKHOE - EXTENDABLE DIPPER HYDRAULIC CIRCUIT (SEE FIGURE 262) AND (SEE FIGURE 263A) (08) - HYDRAULICS

1

D90363

HOSE

2шт.

1

E44990

GUARD

SLEEVE, (Not shown), Start Serial: 3.918.607

1шт.

2

D89772

SHIN

CLAMP

1шт.

3

D89773

SHIN

CLAMP

1шт.

4

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

D93646

HYD TUBE

1шт.

7

D93648

HYD TUBE

1шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

10

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

3шт.

11

95-8

WASHER,1/2"

flat

5шт.

12

D93678

GUARD

D93677 + D45576 + D133395 + 25-268 + 25-108

1шт.

D93677 + D45576 + D133395 + 25-268 + 25-108

1шт.

13

D54137

GUARD

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

195-25

WASHER,3/8"

2шт.

17

D42504

CLAMP

2шт.

18

D76209

SPACER

2шт.

20

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

2шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie

1шт.

22

D52572

TUBE

1шт.

23

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

D52574

TUBE

1шт.

26

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Includes Ref. 27

1шт.

28

REF

INSTRUCTION

CYLINDER, See Figure 334

1шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

30

D76302

BLOCK

1шт.

31

25-226

SQUARE NUT,Sq, 3/8"-16

1шт.

32

D133395

STUD

1шт.

33

D45576

CLAMP

1шт.

34

25-268

NUT,1/2"-13, G5, High

1шт.

35

D93677

GUARD

1шт.

36

25-108

NUT,1/2"-13, G5

1шт.
