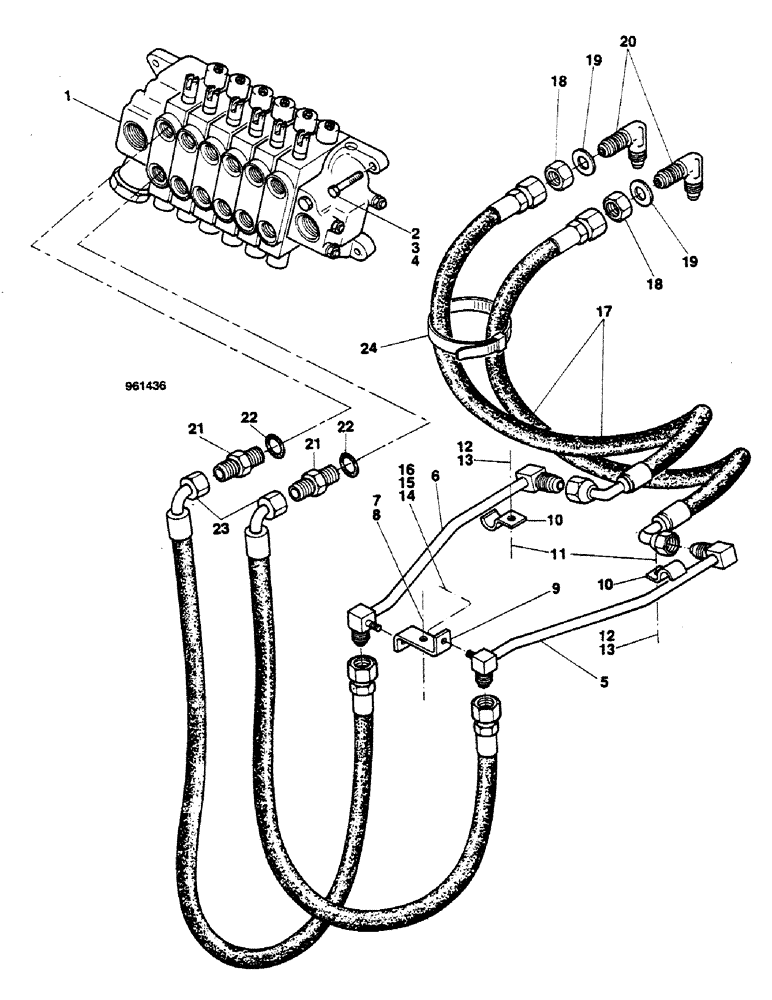

Запчасти Case 580G (263A) - SIDESHIFT BACKHOE - EXTENDABLE DIPPER HYDRAULIC CIRCUIT (SEE FIGURE 264) STARTING FROM NO. 3.948.950 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 291C

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat

6шт.

4

131-654

LOCK NUT,1/2"-13, GB

3шт.

5

D90346

TUBE

1шт.

6

D90348

TUBE

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

D90367

BRACKET

SPARE PART E46413

1шт.

9

E46413

SUPPORT ASSY.

SPARE PART

1шт.

10

38188

CLAMP

2шт.

11

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

95-5

WASHER,3/8" x 7/8" x .083"

flat

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

D90362

HOSE

2шт.

18

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

19

195-2091

WASHER,15/16" x 1 3/8" x .219"

flat

2шт.

20

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

elbow

2шт.

21

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 22

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23

E45454

HOSE

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.
