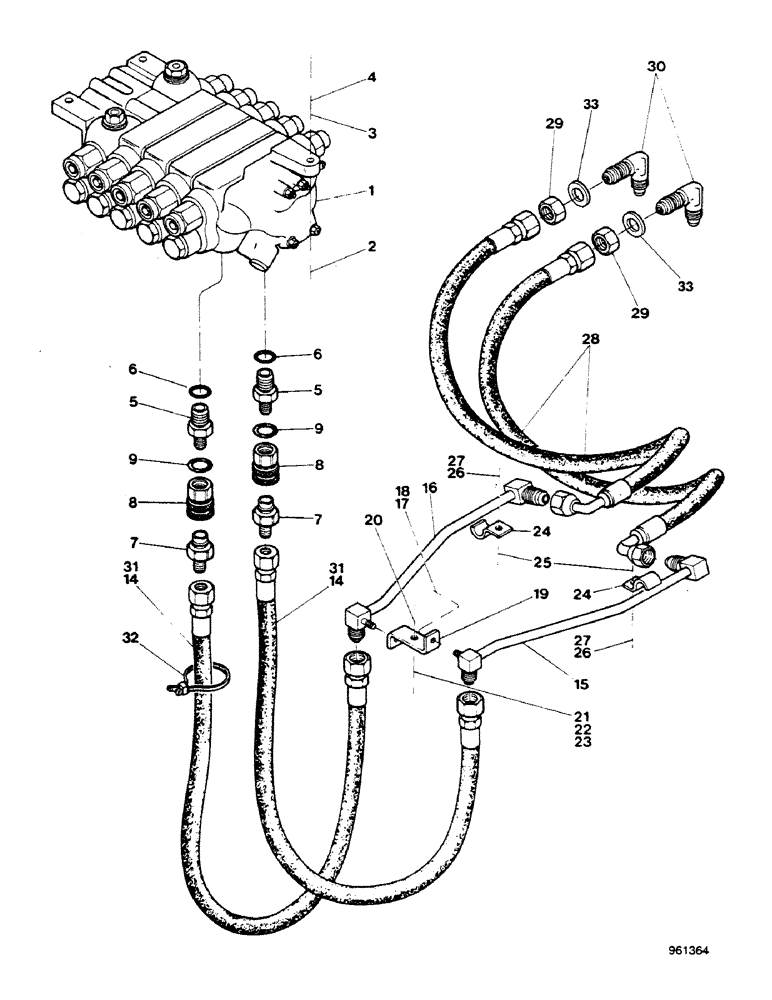

Запчасти Case 580G (262) - SIDESHIFT BACKHOE - EXTENDABLE DIPPER HYDRAULIC CIRCUIT (SEE FIGURE 260) UP TO NO. 3.948.949 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat

6шт.

4

131-654

LOCK NUT,1/2"-13, GB

3шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 6

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

D123170

COUPLING, BREAK AWAY

NIPPLE

1шт.

8

D123169

COUPLING, BREAK AWAY

1шт.

N7484

SEAL

1шт.

14

D90364

HOSE

E45772

2шт.

14

E45772

HOSE

2шт.

15

D90346

TUBE

1шт.

16

D90348

TUBE

1шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.

19

D90367

BRACKET

SPARE PART

1шт.

E46413

1шт.

19

E46413

SUPPORT ASSY.

SPARE PART

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

21

195-25

WASHER,3/8"

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

1шт.

24

38188

CLAMP

2шт.

25

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

2шт.

28

D90362

HOSE

2шт.

29

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

30

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

elbow

2шт.

31

D122669

SLEEVE

SPARE PART If used

2шт.

32

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie, If used

4шт.

33

195-2091

WASHER,15/16" x 1 3/8" x .219"

flat, If used

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
