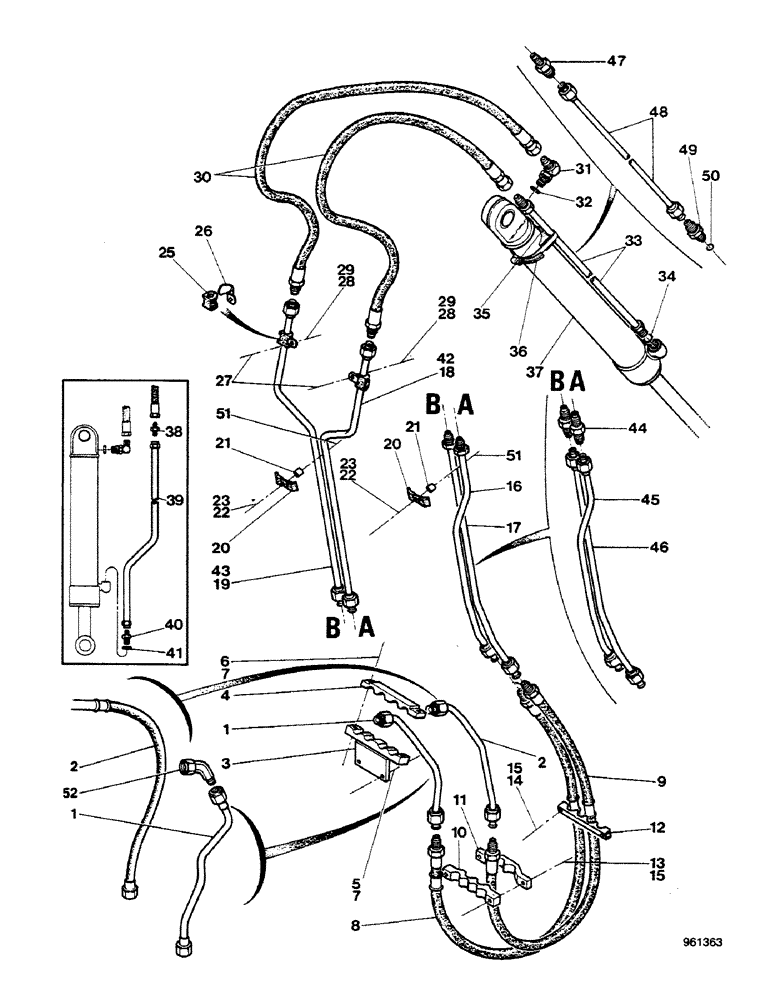

Запчасти Case 580G (260) - SIDESHIFT BACKHOE - BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D89588

HYD TUBE,19.05 mm OD x 183, 416 mm L

, Serial Range: -3.918.606

1шт.

1

E45238

PIPE

, Serial Range: 3.918.607-3.948.949

1шт.

1

E45821

TUBE

, Start Serial: 3.948.950

1шт.

2

D89749

PIPE

, Serial Range: -3.918.606

1шт.

2

E45242

TUBE

, Serial Range: 3.918.607-3.948.949

1шт.

2

REF

INSTRUCTION

HOSE, See Figure 251A, Start Serial: 3.948.950

1шт.

3

D92541

SUPPORT

Used with D92591, Serial Range: -3.948.949

1шт.

4

D89771

CLAMP

, Serial Range: -3.948.949

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used with D92591, Serial Range: -3.948.949

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

, Serial Range: -3.948.949

2шт.

7

92-6

LOCK WASHER,3/8"

Used with D92591, Serial Range: -3.948.949

4шт.

8

D90366

HOSE

1шт.

9

D90365

HOSE

1шт.

9

E44983

PLASTIC-RUBBER TUBE

(Not shown), Start Serial: 3.918.607

1шт.

10

D89772

SHIN

CLAMP

1шт.

11

D89773

SHIN

CLAMP

1шт.

12

D92721

CLAMP

1шт.

13

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

14

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

2шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

D89502

HYD TUBE,19.05 mm OD x 90, 971 mm L

, Serial Range: -3.918.421

1шт.

17

D89500

HYD TUBE,19.05 mm OD x 1001, 101 mm L

, Serial Range: -3.918.421

1шт.

18

D77848

TUBE

RH, Serial Range: -3.918.421

1шт.

19

D77846

TUBE

LH, Serial Range: -3.918.421

1шт.

20

D40236

CLAMP

2шт.

21

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

2шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

25

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR

2шт.

26

D74192

CLAMP

2шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

28

195-25

WASHER,3/8"

2шт.

29

131-6

LOCK NUT,3/8"-16, GC

2шт.

30

D52566

HOSE

2шт.

31

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

elbow, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

33

D55050

HOSE

5L, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5L

1шт.

35

D38648

BLOCK

spacer

1шт.

36

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

37

REF

INSTRUCTION

CYLINDER, See Figure 332

1шт.

38

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2L

1шт.

39

D92158

HYD TUBE,19.05 mm OD x 92, 799 mm L

2L

1шт.

40

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

2L, Includes: Ref. 41

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2L

1шт.

42

D123139

TUBE

RH, Start Serial: 3.918.422

1шт.

43

D123145

TUBE

LH, Start Serial: 3.918.422

1шт.

44

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

, Start Serial: 3.918.422

2шт.

45

D123141

TUBE

, Start Serial: 3.918.422

1шт.

46

D123143

TUBE

, Start Serial: 3.918.422

1шт.

47

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

5L

1шт.

48

D123159

TUBE

5L

1шт.

49

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

5L, Includes: Ref. 50

1шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5L

1шт.

51

25-226

SQUARE NUT,Sq, 3/8"-16

3шт.

52

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

elbow, Start Serial: 3.948.950

1шт.
