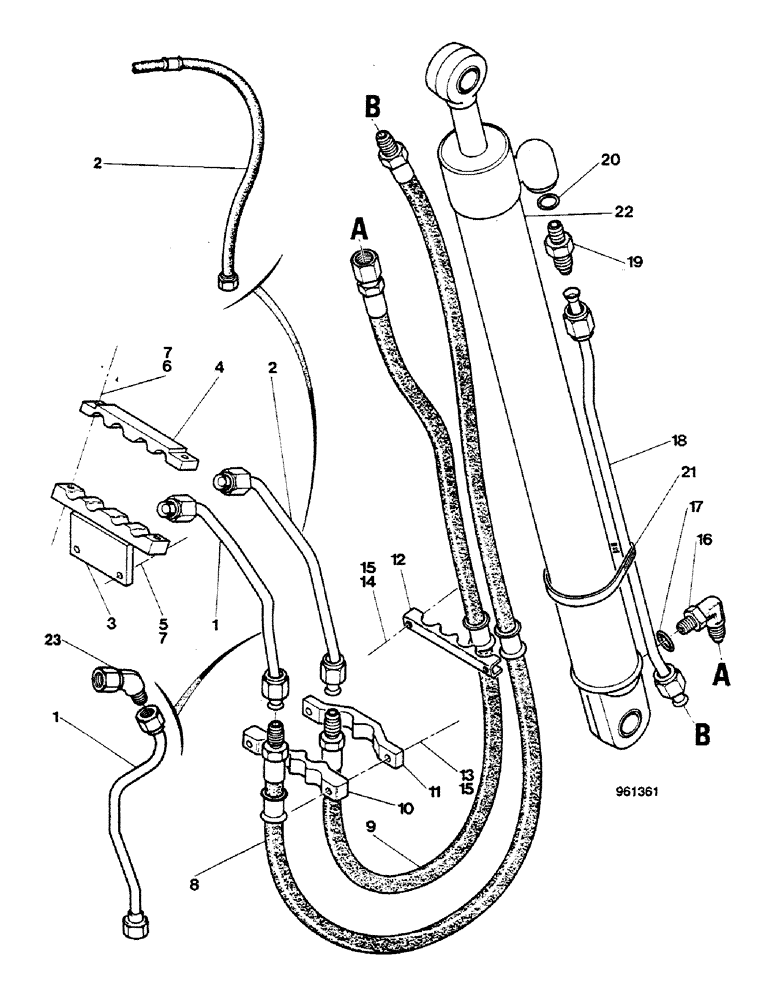

Запчасти Case 580G (256) - SIDESHIFT BACKHOE - DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D89728

HYD TUBE,19.05 mm OD x 189, 416 mm L

, Serial Range: -3.918.606

1шт.

1

E45236

TUBE

, Serial Range: 3.918.607-3.948.949

1шт.

1

E45823

TUBE

, Start Serial: 3.948.950

1шт.

2

D89586

PIPE

, Serial Range: -3.918.606

1шт.

2

E45240

TUBE

, Serial Range: 3.918.607-3.948.949

1шт.

2

REF

INSTRUCTION

HOSE, See Figure 251A, Start Serial: 3.948.950

1шт.

3

D92541

SUPPORT

Used with D92591 See Figure 382, Serial Range: -3.948.949

1шт.

4

D89771

CLAMP

, Serial Range: -3.948.949

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used with D92591, See Figure 382, Serial Range: -3.948.949

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

, Serial Range: -3.948.949

2шт.

7

92-6

LOCK WASHER,3/8"

Used with D92591, See Figure 382, Serial Range: -3.948.949

4шт.

8

D89776

HOSE

1шт.

9

D89777

HOSE

1шт.

9

E44983

PLASTIC-RUBBER TUBE

, Start Serial: 3.918.607

1шт.

10

D89772

SHIN

CLAMP

1шт.

11

D89773

SHIN

CLAMP

1шт.

12

D92721

CLAMP

1шт.

13

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

14

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

2шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

elbow

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

D50379

TUBE

1шт.

19

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

22

REF

INSTRUCTION

CYLINDER, See Figure 330

1шт.

23

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

elbow, Start Serial: 3.948.950

1шт.
