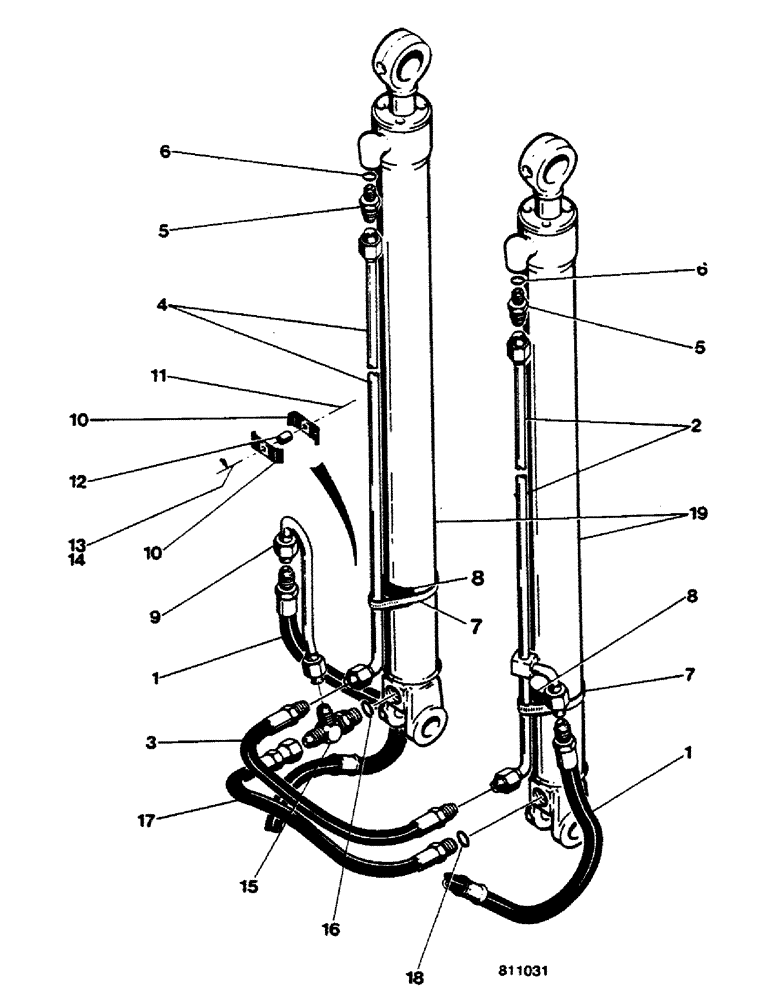

Запчасти Case 580G (252) - SIDESHIFT BACKHOE - BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE, See Figure 250 or 251A

2шт.

2

D69237

TUBE

1шт.

3

D65886

HOSE,12.7mm ID x 457.2mm L, SAE 100R2

, Serial Range: -3.918.606

1шт.

3

E44918

HOSE

, Serial Range: 3.918.607-3.948.949

1шт.

3

E45857

HOSE

, Start Serial: 3.948.950

1шт.

4

D69234

HYD TUBE,0.75" OD x 41.4, 2.75" L

1шт.

5

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

8

D38648

BLOCK

spacer

2шт.

9

D69421

HYD TUBE,0.75" OD

1шт.

10

D40236

CLAMP

2шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

12

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

1шт.

15

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

E44953

GUARD

SPARE PART SLEEVE, (Not shown), E45730, Start Serial: 3.918.607

1шт.

17

D123534

HOSE

, Serial Range: -3.918.606

1шт.

17

E44927

HOSE

E45730, Start Serial: 3.918.607

1шт.

17

E45730

HOSE

, Serial Range: -3.948.949

1шт.

17

E45856

HOSE

Includes: Ref. 18, Start Serial: 3.948.950

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

REF

INSTRUCTION

CYLINDER, See Figure 328

2шт.
